WOHLER iVAM2-12G
16 Channel, dual screen, 12G-SDI & Analog A/V Monitor
iVAM12-12G
Price excludes VAT
Product lists can be submitted to HHB for a packaged quotation
Large Screen. Powerful Speakers. Flexible. Adaptable. Future Proof.

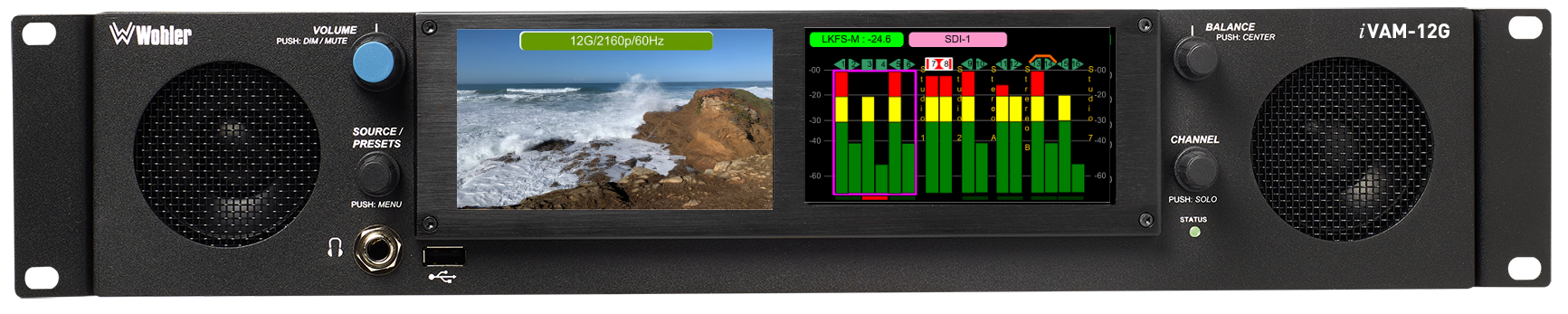

The iVAM2-12G is a premium version of our iVAM series offering 12G-SDI monitoring at a competitive price. It is a well featured, easy to use, 2U 16 channel video and audio monitor which comes standard with 2 x 12G-SDI inputs on BNC connectors and a pair of Analog inputs on XLR connectors. Standard features include Loudness measurement, phase status and HDR detection. License other signal formats and processing options, including Dolby, AoIP (Dante or Ravenna), ST2110, and others as and when needed, either initially or after purchase
With touch screen controls, two large 4.3″ screens and a depth of under 6”, the iVAM2-12G is the perfect solution for any application that requires a compact product for simple-to-complex monitoring of an evolving range of professional signals.
Key Features
- Video and audio monitoring (up to 16 channels) from multiple sources
- Up to 64 presets
- 2 x 12G-SDI Inputs on BNC that can also monitor 3G/HD/SD-SD; 1 x 12G-SDI Output of selected video source on BNC + 1 pair Analog in/out on XLR
- Optional Output Routing enables the flexibility to route input signals to various outputs
- Optional I/O for AES3 on HD-15 (incl selected audio source converted to AES3 out), MADI on BNC (looped out), and SMPTE 2110 or SMPTE 2022 via SFP.
- HDMI Output of the monitored video source included HDMI output follows the input up to 1080p, except for 12G where it will be 1080p @ 60Hz. Monitors the first 8 ch of audio.
- Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
- Option cards for AoIP, additional SFP’s, or 8 channels of analog I/O, and TOSLINK
- Software upgradeable via USB or network
- APIs for remote management
Product Options
| Signal Licensing Options (software only, no hardware) | ||
|---|---|---|
| OPT-AES | 829080 | Enables decoding and monitoring of 4 x AES inputs, 1 AES Output |
| OPT-MADI | 829092 | Enables decoding and monitoring of 1 x MADI64 input via BNC |
| Processing Options (software only) | ||
| OPT-DOLBY | 829174 | Enable monitoring of Dolby D, DD+ or E streams. Software activation key. Functions on SDI via BNC, or any of the following OPT/SFP’s: OPT-AES, SFP-SDI-Fiber, SFP-2022-6, SFP-2110, and SFP-2110+2022-6 |
| OPT-OUTPUT ROUTING | 829159 | Enables the flexibility to route input signals to various outputs. |
| Option Cards for Signal I/O Processing (includes hardware) | ||
| OPT-DANTE | 829171/-1 | This AoIP option card enables monitoring of up to 64 ch of DanteTM. Choice of either two stereo unbalanced Analog inputs or TOSLINK optical input. |
| OPT-RAVENNA 64 | 829172/-1 | This AoIP option card enables monitoring of up to 64 ch of RaevennaTM / AES67 input, Choice of either two stereo unbalanced Analog inputs or TOSLINK optical input. |
| OPT-ANLG/TOS | 829170 | Enable monitoring of 8 analog channels on DB-25. Hardware card with software activation key. Includes Optical TOSLINK input. |
| OPT-SFP | 829179 | Adds two additional 3G inputs to 3G products, or two 12G inputs to 12G products. |
| Small form-factor pluggable (SFP) Options | ||
| SFP-2110 w/Ember+ (or NMOS) | 829086/-1 | Receiver, Multi-Mode 850 NM, LC (fiber) Connectors. Use 829086-1 for NMOS variant. |
| SFP-2022-6 | 829088 | Receiver, LC (fiber) Connectors |
| SFP-2110 w/Ember+ (or NMOS) + 2022-6 | 829087/-1 | Receiver, Multi-Mode 850 NM, LC (fiber) Connectors. Use 829087-1 for NMOS variant. |
| SFP-SDI | 829089 | 3G/HD/SD-SDI single video receiver with active loopback. HD-BNC Connectors. Only purchase if 3rd SDI I/P is required. |
| SFP-SDI-Fiber | 829084 | SDI single mode Optical LC (fiber) video receiver. Up to 12G-SDI capable depending on base unit |
| SFP-MADI-Fiber (MM or SM) | 829081/2 | MADI optical fiber transceiver; Multimode or Singlemode, LC (fiber) Connectors. Use 829081 for Multimode (MM). Use 829082 for Singlemode (SM). |
Specifications
| Dimensions (W x H x D) | 2RU in standard 19” rack: 19” x 3.5” x 5.5” (483 mm x 89 mm x 140 mm). Shipping dims: 23”x 6”x 12” |
| Shipping Weight / Net Weight | 12.0 lbs. (5.5 kg) / 8.0 lbs. (3.6 kg) |
| Power Consumption / Supply | 60W, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved |
| Display Type / Resolution | 2 x 4.3” (109 mm) LCD Capacitive Touchscreen; 480H x 272V |
| Viewing Angle | 160° (H) x 160° (V) |
| Audio Channels | 16 Max |
| Hum and Noise | Better than -75 dB below full output |
| Peak Acoustic Output | 104 dB SPL @ 2 feet |
| Speaker Power Output | 15W RMS per side, 30W Peak |
| Upgrades | Via USB or GUI web interface |
| APIs | Provide easy integration with 3rd party control systems |
