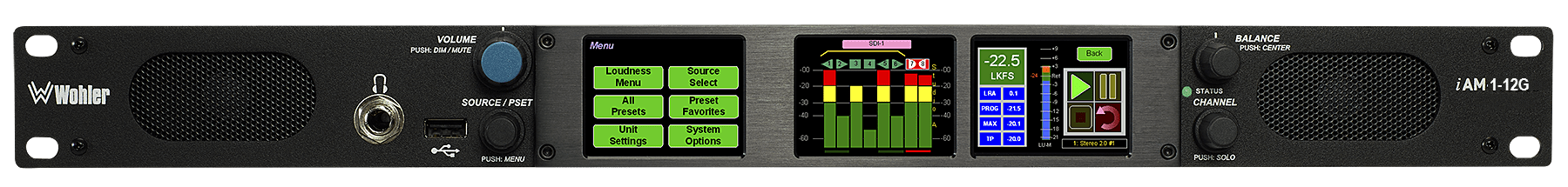

The new iAM1-12G is a well featured, easy to use, competitively priced 16 channel IP ready audio monitor which comes standard with 12G-SDI and Analog inputs, loudness monitoring and phase status. Developed as a direct result of customer feedback, it shares many of the same features as our iAM-AUDIO-1 PLUS. License other signal formats and  processing options, including Dolby, AoIP, Toslink and 8 channel Analog, as and when needed, either initially or after purchase.

Flexible. Adaptable. Future Proof.

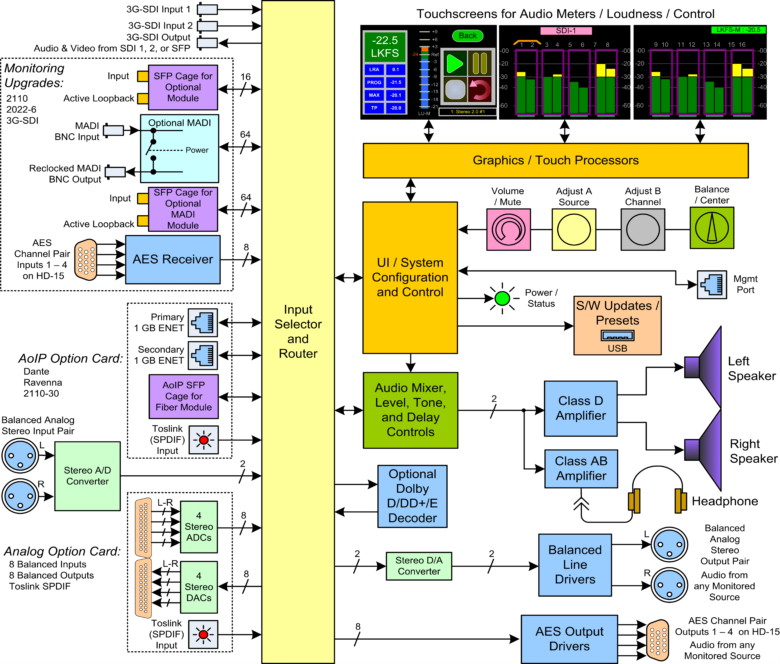

iAM1-12G is designed to be easy to operate, providing fast access to meters, menus and presets.  Options for additional signals, including AES3, MADI64, Dante^TM, Ravenna^TM, SMPTE-2110 and SMPTE-2022-7.

All iAM Series monitors contain an onboard web server. Multiple units on the same network can be updated, monitored and controlled via a browser-based user interface that supports fast configuration with role-based authentication that protects critical configurations from unauthorized alteration.

Key Features

• Audio monitoring (up to 16 channels) from multiple sources
• Up to 64 presets
• 2 x 12G-SDI Inputs on BNC; 1 x 12G-SDI Output on BNC + 1 pair Analog in/out on XLR
• Optional Output Routing enables the flexibility to route input signals to various outputs
• Optional I/O for AES3 on HD-15 (incl selected audio source converted to AES3 out), MADI on BNC (looped out), and SMPTE 2110 or SMPTE 2022 via SFP
• Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
• Phase status
• Phase status + Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
• Software upgradeable via USB or network

Signal Licensing Options (software only, no hardware)

• OPT-AES (829080) – Enables decoding and monitoring of 4 x AES inputs, 1 AES Output
• OPT-MADI (829092) – Enables decoding and monitoring of 1 x MADI64 input via BNC

Processing Options (software only)

• OPT-DOLBY (829174) – Enable monitoring of Dolby D, DD+ or E streams. Software activation key. Functions on SDI via BNC, or any of the following OPT/SFP’s: OPT-AES, SFP-SDI-Fiber, SFP-2022-6, SFP-2110, and SFP-2110+2022-6
• OPT-OUTPUT ROUTING (829159) – Enables the flexibility to route input signals to various outputs

Option Cards for Signal I/O Processing (includes hardware)

• OPT-DANTE (829171) – Enable monitoring from up to a 64ch Dante Input. Hardware card with software activation key. Includes AoIP card enabling primary and secondary
• OPT-RAVENNA 64 (829172) – Enable monitoring from up to 64ch Ravenna/ AES67 Input. Includes NMOS support. Hardware card with software activation key. Includes AoIP
• OPT-ANLG/TOS (829170) – Enable monitoring of 8 Analogue channels on DB-25. Hardware card with software activation key. Includes Optical TOSLINK input
• OPT-SFP (829179) – Adds two additional 3G inputs to 3G products, or two 12G inputs to 12G products

Small form-factor pluggable (SFP) Options

• SFP-2110 w/Ember+ (or NMOS) (829086/-1) – Receiver, Multi-Mode 850 NM, LC (fibre) Connectors. Use 829086-1 for NMOS variant
• SFP-2022-6 (829088) – Receiver, LC (fibre) Connectors
• SFP-2110 w/Ember+ (or NMOS) + 2022-6 (829087/-1) – Receiver, Multi-Mode 850 NM, LC (fibre) Connectors. Use 829087-1 for NMOS variant
• SFP-SDI (829089) – 3G/HD/SD-SDI single video receiver with active loopback. HD-BNC Connectors. Only purchase if 3rd SDI I/P is required
• SFP-SDI-Fiber (829084) – SDI single mode Optical LC (fibre) video receiver. Up to 12G-SDI capable depending on base unit
• SFP-SDI-Output (829083) – 3G/HD-SD-SDI Transceiver, HD-BNC connectors, I/P and O/P are both SDI
• SFP-MADI-Fiber (MM or SM) (829081/82) – MADI optical fibre transceiver; Multimode or Singlemode, LC (fibre) Connectors. Use 829081 for Multimode (MM). Use 829082 for Singlemode (SM)

Physical Specifications

• Rack Height 1RU
• Power Consumption 65 Watts typical
• Power Supply Internal 100-240 VAC ± 10%, 50/60 Hz, CE & UL approved.
• Dimension Width 19.0″ (483mm)
• Dimension Height 1.75″ (45mm)
• Dimension Depth 5.5″ (140mm)
• Net Weight 7.5 lbs. (3.4 kg)
• Shipping Weight 7.6 lbs (3.4 kg)
• Shipping Dimensions 23 × 12 × 6 in (LxWxH)
