DAD MOM - Monitor Operating Module

First-grade hardware monitor controller

MOM-BASE

£1,015.00 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List



MOM – Monitor Operating Module

MOM is the perfect companion if you use the monitor controller capabilities of the Avid MTRX,
MTRX Studio, DAD AX32, DX32R and NTP Penta 721s.

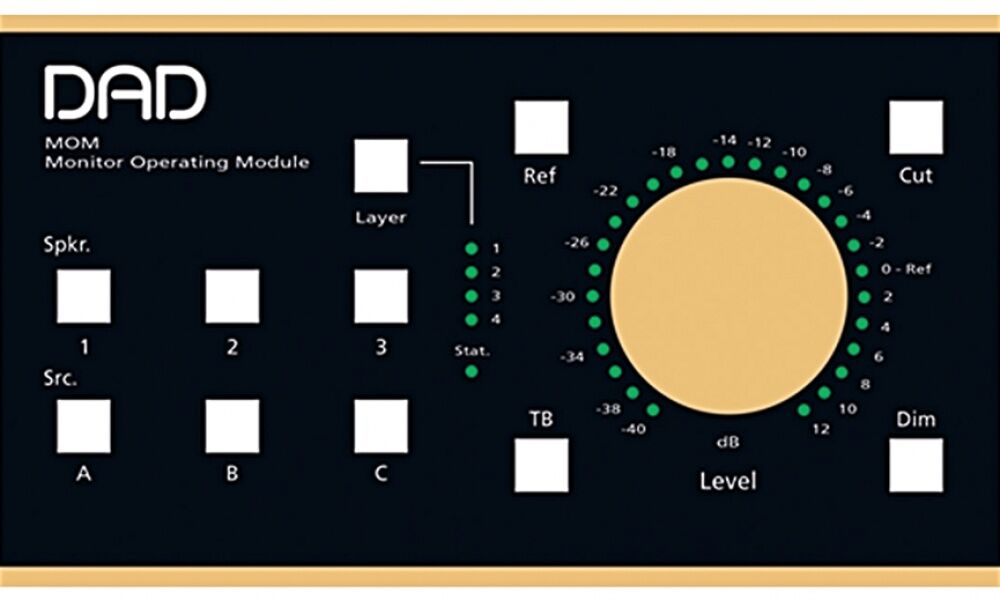

MOM is a remote control for the Pro│Mon monitor profile in the DADman control software. It
features ten user-programmable keys, a rotary encoder and a GPI input for an external switch. You
can assign almost any function in the monitor profile to any key on MOM, making it easy to
configure it for your specific needs. MOM offers 4 layers of keys, making up a total of 40
programmable keys.

Weighing in at 2 lbs., MOM is a sturdy unit that will remain in place while also being compact
enough to not take up valuable desk space. The rotary encoder for volume control has been
carefully designed for superb tactile feel, with colored LEDs to indicate the volume setting in 0.5
dB steps.

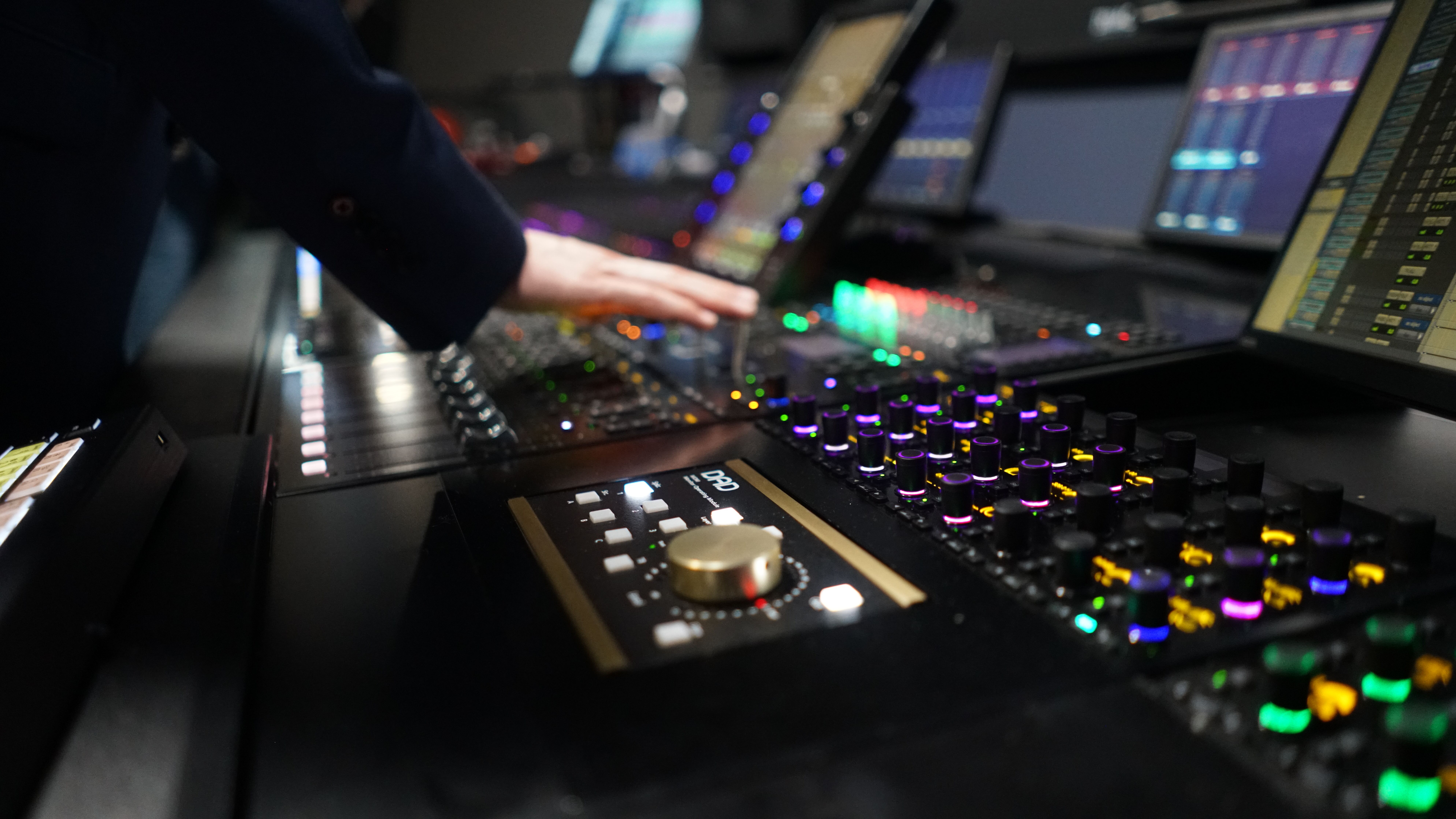

While working perfectly fine in combination with the DADman software, its real power shows up
when used in combination with Eucon control surfaces such as Avid Dock, S4, S6 or even the free
Control app, as the operation of MOM is synchronized with these. Simply select e.g. a source on
the Dock and the corresponding key on MOM will light up, and similarly, what you do on MOM is
also reflected on the Dock.

And not only can you use MOM in combination with Eucon control surfaces, you can also use
multiple MOMs on the same system. This comes in handy if you have multiple working or listening
positions – e.g. a sound engineer and a director position, as you can place MOM’s wherever they
are needed.

MOM also features a GPI input, which can be used for an external switch, e.g. a footswitch or a
separate switch on the desk. You can program the function of the GPI input just like any of the
keys.

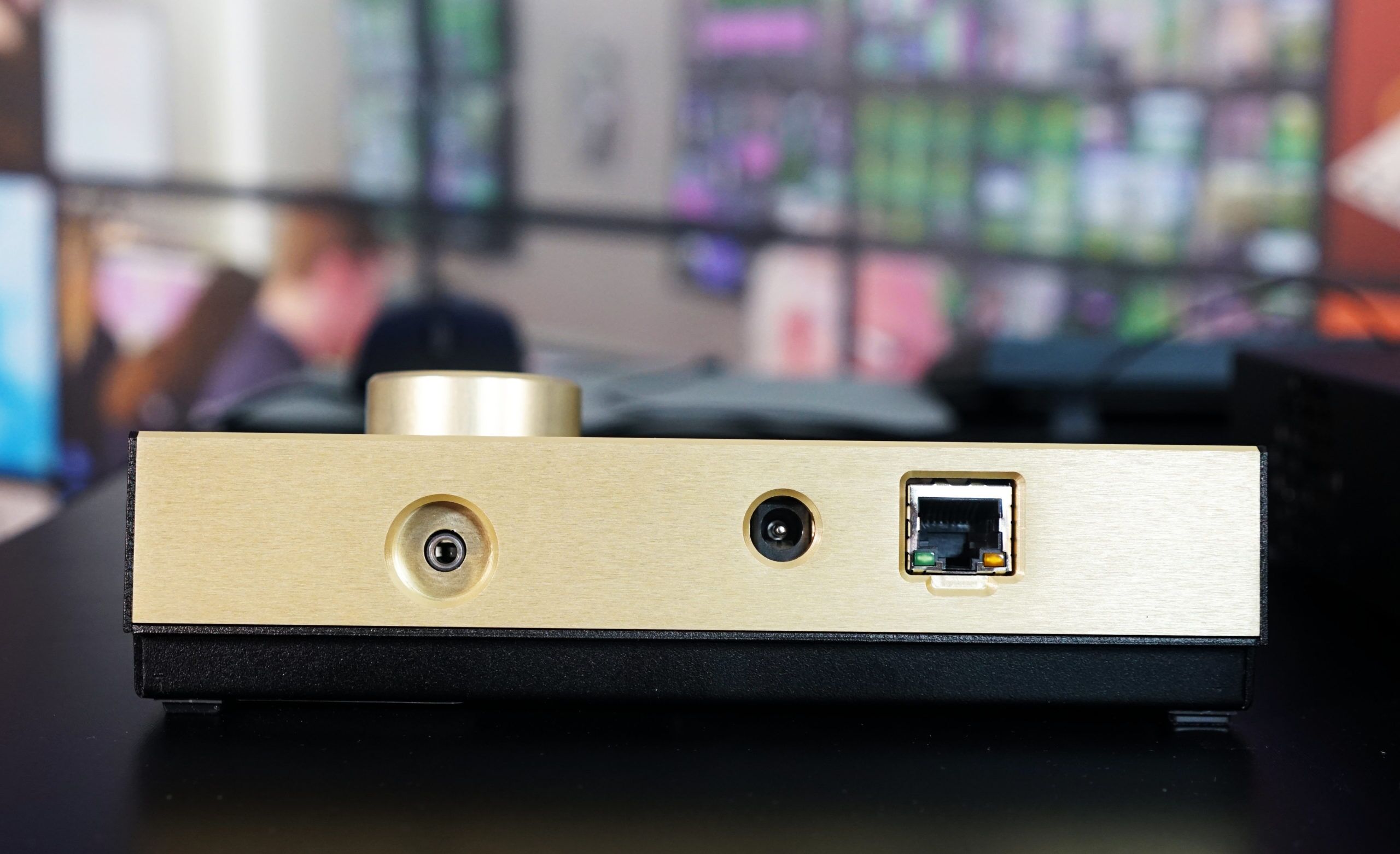

Powering MOM can happen either through PoE, making the installation very easy, or from the
supplied power adapter.

Specifications

  • Power IEEE 802.3af PoE or 5 VDC/1A
  • Power adapter 100 – 240 VAC, 50/60 Hz, 0.18A
  • Dimensions 6.8” x 4.25” x 1.7 / 172 mm x 108 mm x 43 mm
  • Weight 2 lbs / 0.95 kg
  • Number of keys 10
  • Number of layers 4
  • GPI Input 1

Media

Manual (81.53 KB)
Getting Started Guide (1.32 MB)
