YAMAHA DM7 Control

Expansion Controller for DM7 & DM7 Compact

CTLDM7

£4,198.00 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List



New product expected Q4 2023

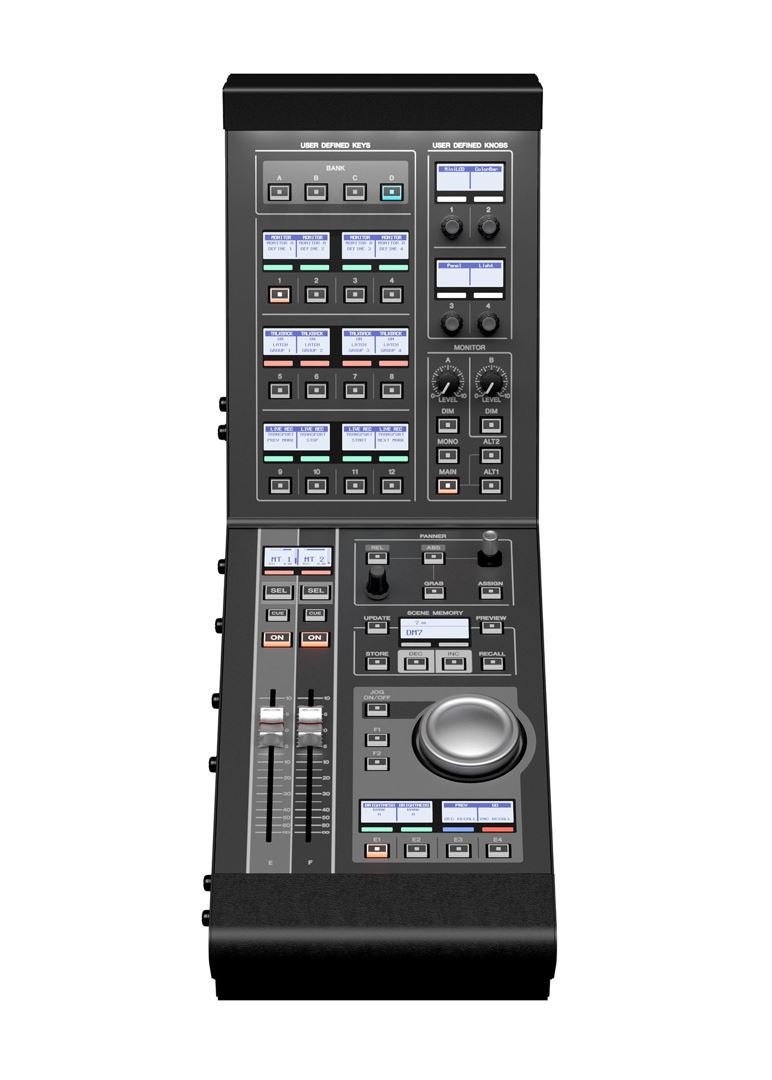

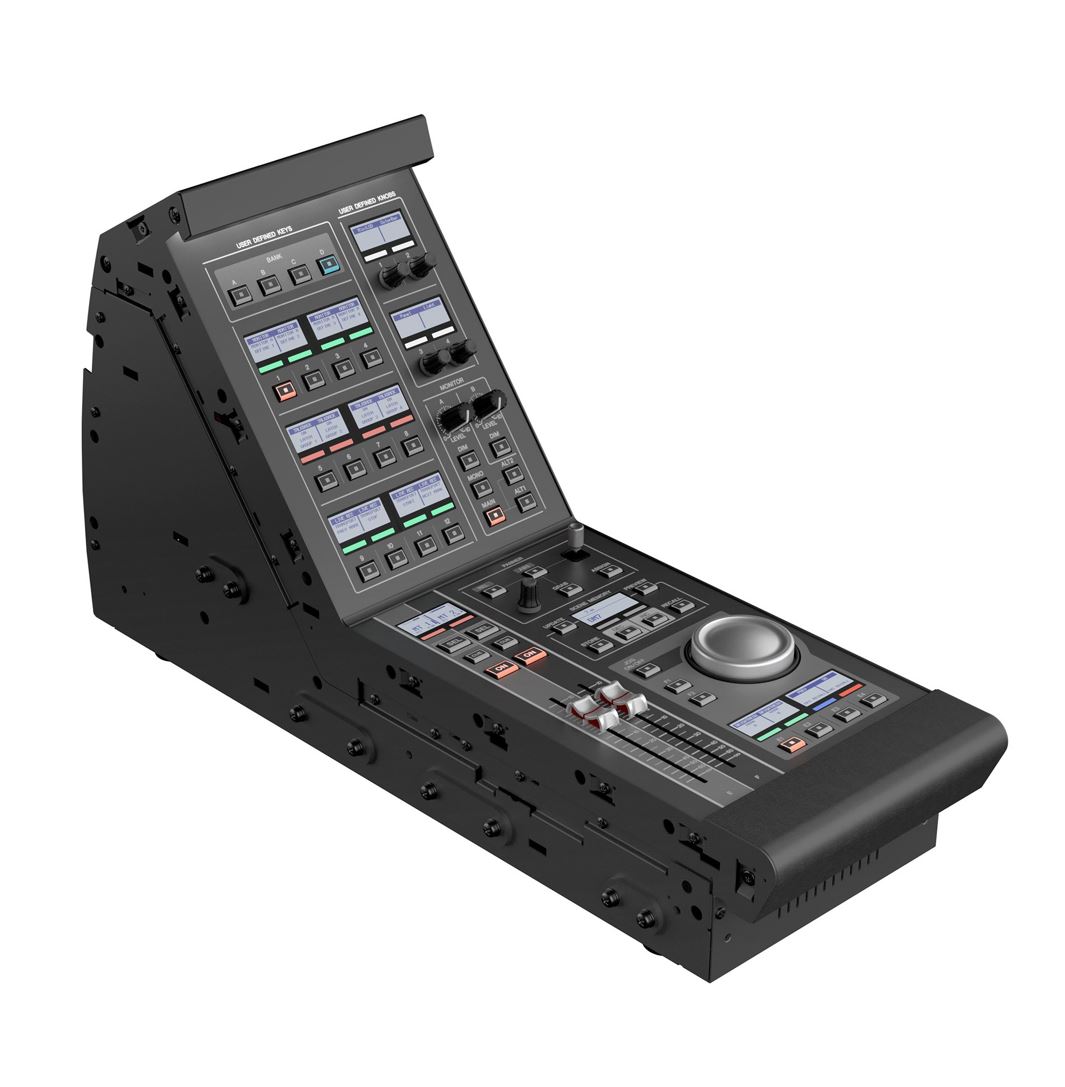

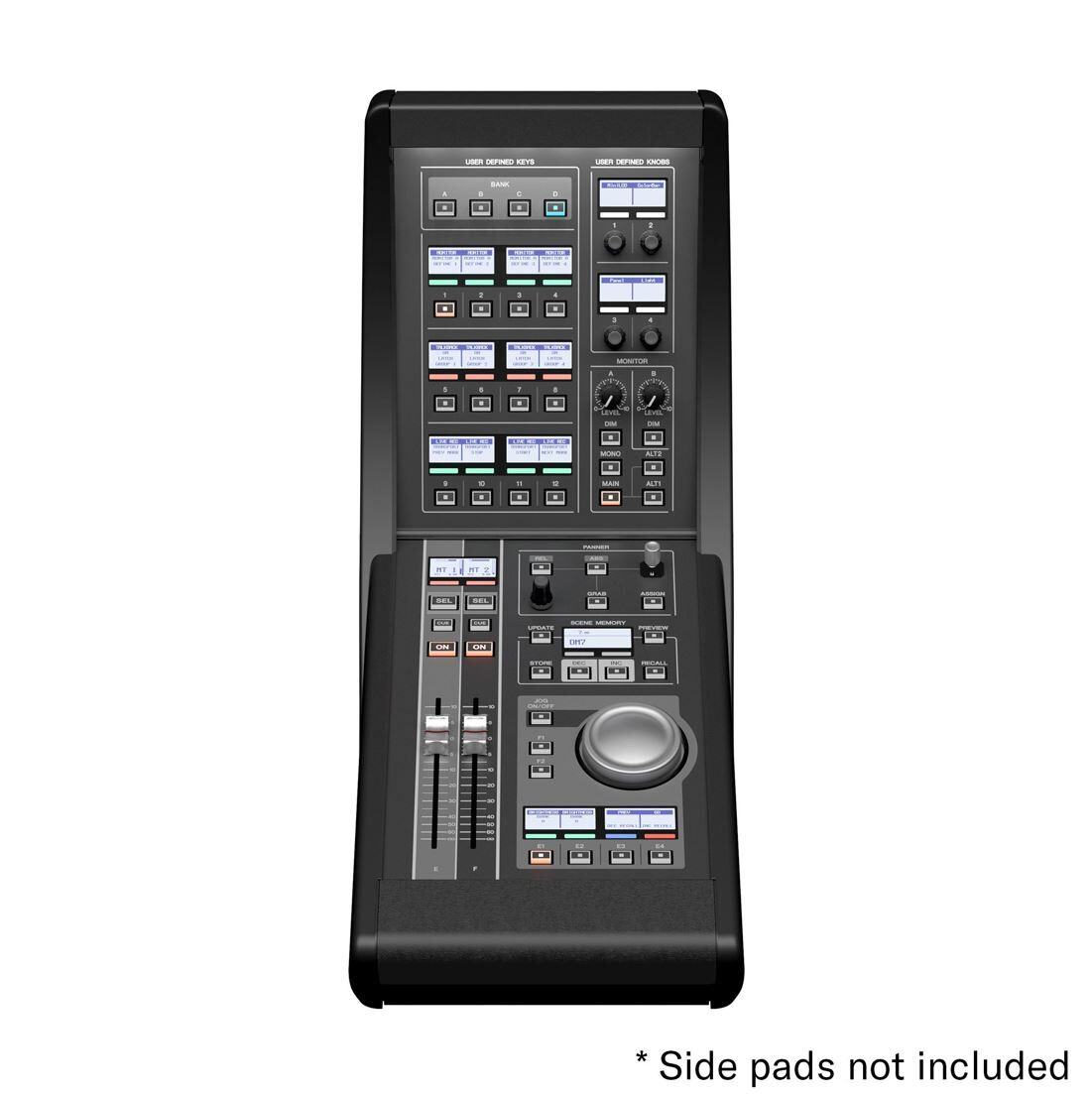

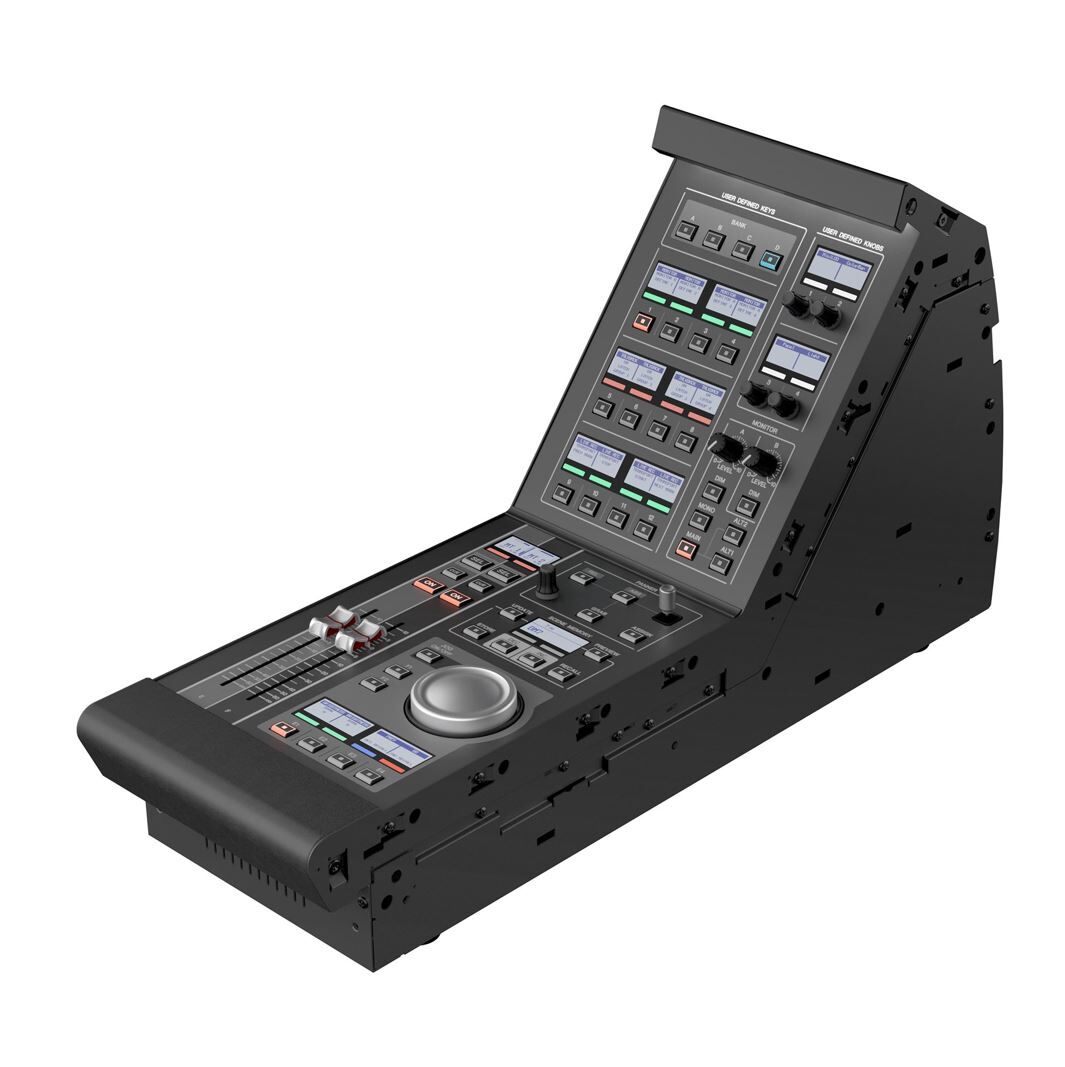

The DM7 Control is an expansion controller with a variety of physical control devices that can be used to conveniently control functions for a number of applications, such as User Defined Keys, Scene Memory keys, Monitor Control keys and knobs, and Panner joystick. The Broadcast / Theatre Package is included with the DM7 Control controller. * Side pads not included

The EX versions of the DM7 consoles include the DM7 Control which ships in a separate box and is easily bolted on the to console to form the DM7-EX or DM7-EX Compact. Where the DM7 Control is to be used apart form the main mixer, side pads are available to purchase separately.

Key Features

  • Faders: 2
  • User Defined Keys: 16
  • User Defined Knobs: 4
  • Scene Memory Keys: Update, Preview, Store, Recall, Inc, and Dec
  • Monitor Control for Monitor A/B
  • Panner: 1
  • Jog Wheel: 1

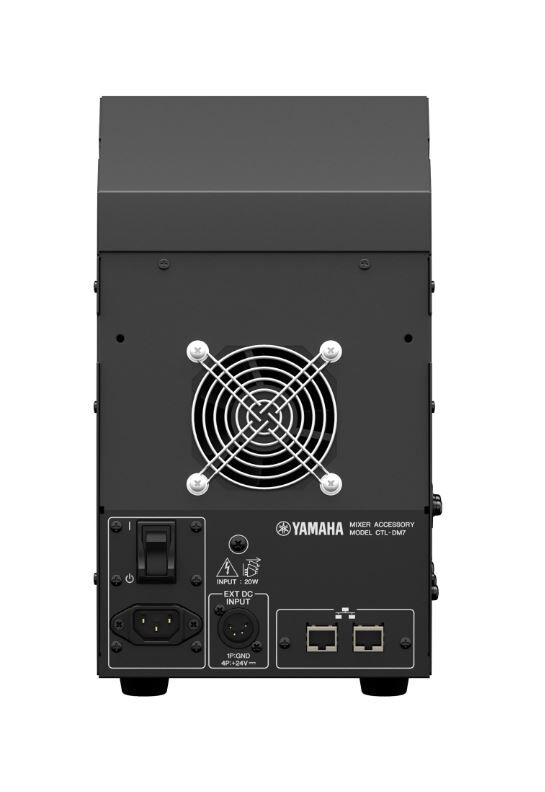

  • Power supply: AC INPUT and EXT DC INPUT for power supply redundancy
  • Power consumption: 20 W
  • Dimensions (W x H x D): 191 mm x 323 mm x 562 mm (7.6″ x 12.8″ x 22.2″)
  • Net Weight: 7 kg (15.5 lb)
