SDI & 2110 Video- Audio Monitor
£4,380.00 Price excludes VAT
Product lists can be submitted to HHB for a packaged quotation

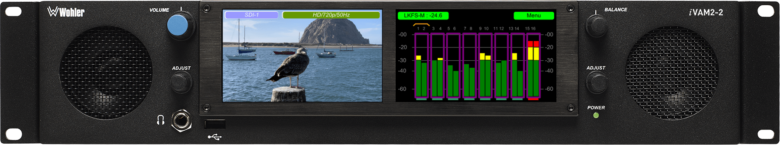

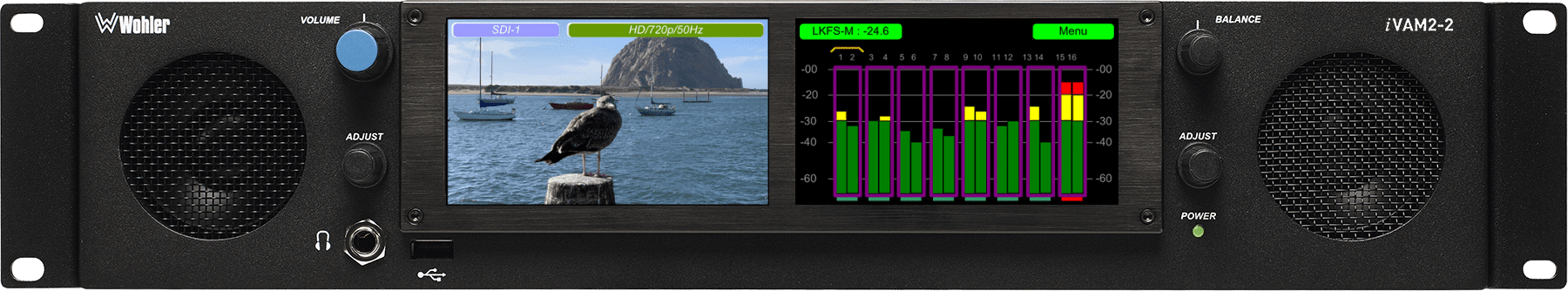

The all new iVAM2-2 represents a well featured and competitively priced video and audio monitor. With fast and easy simultaneous monitoring of audio and video, this unit comes standard with 3G-SDI and Analogue inputs. License other signal formats as and when needed, either initially or after purchase.
Flexible. Adaptable. Future Proof.

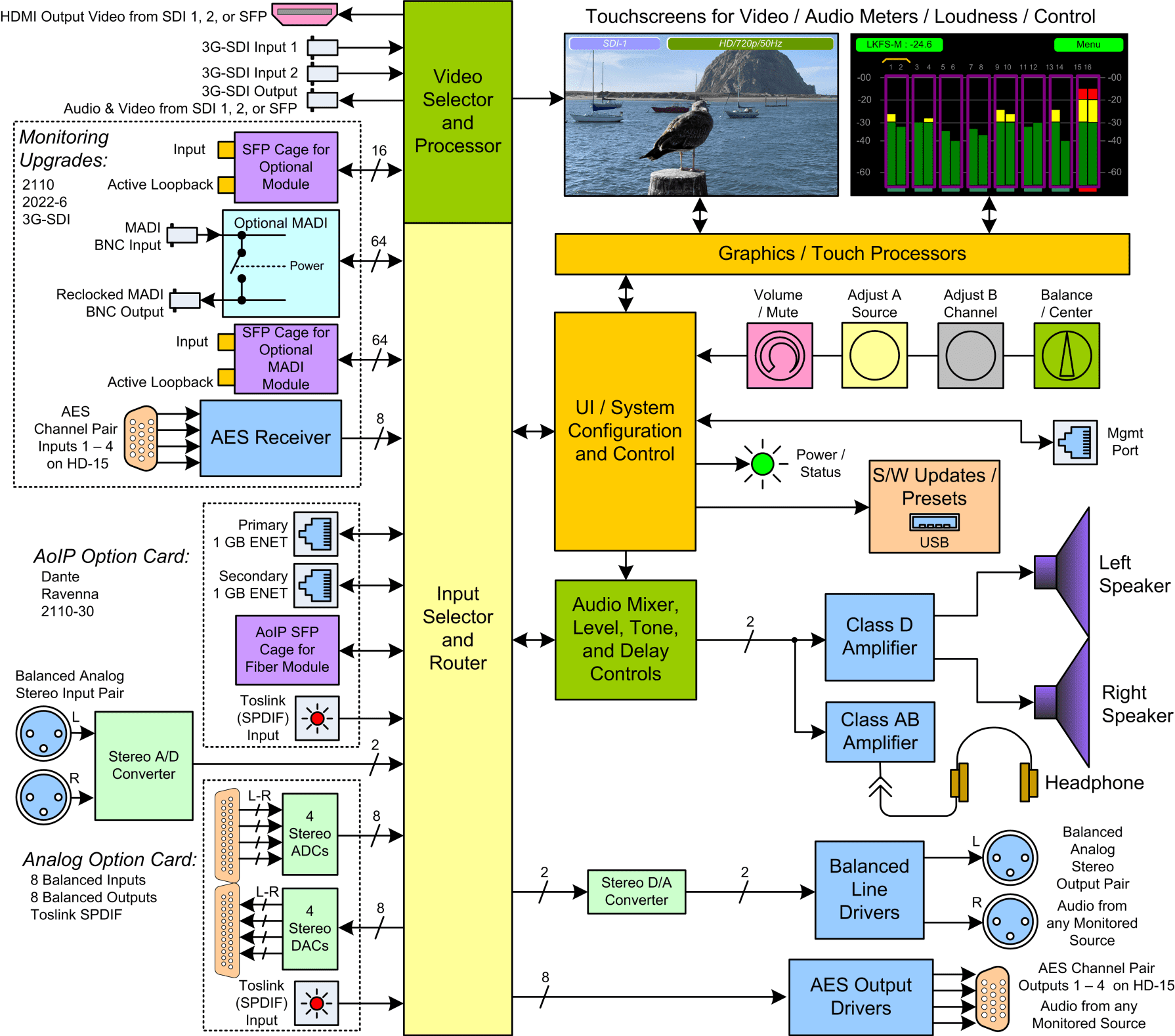

iVAM2-2 is designed to be easy to operate, providing access to both video and meters, as well as loudness and other data. The unit comes standard with Analogue and 3G-SDI but has options for additional signals, including ST-2110, ST-2022, AES3, Dante, Ravenna & MADI64. The touch screen front panels make the unit easy to use, easy to operate, and easy to configure for your particular purpose. Four rotary knobs supplement the touch controls and provide fast and easy access to volume, balance, signal source and channel selection. A front mounted USB port is provided for software updates to support new and emerging technologies. All iAM Series monitors are built with an onboard web server.
The iVAM2-2 is the perfect solution for any application that requires a compact unit and superior performance characteristics for the purpose of monitoring an evolving range of professional signals.
FEATURES & BENEFITS:
- SDI & 2110 video-audio monitor with options for Audio over IP, MADI and 2022.
- HDR detection
- Video or audio monitoring (up to 16 channels) from multiple sources
- Up to 64 presets
- 2 x 3G SDI Inputs on BNC; 1 x 3G SDI Output of selected source on BNC
- Optional I/O for SMPTE 2110 or SMPTE 2022 via SFP, AES3 on HD-15 (incl selected audio source converted to AES3 out), & MADI via BNC (looped out)
- HDMI Output of the monitored video source is included as standard
- Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
- Option Cards for AoIP or an additional 8 channels of analogue inputs and outputs
- Software upgrades via USB or network.
- APIs included for remote control
|Signal & Processing Options (software only, no hardware)|
|OPT-DOLBY (iVAM)||829174||Enable monitoring of Dolby® D, DD+ or E streams. Requires either SDI on BNC to be used or any one of the following OPT/SFPs to be added: OPT-AES, SFP-SDI-Fiber, SFP-2022-6, SFP 2110 or SFP-2110+2022-6|
|OPT-AES||829080||Enable Monitoring of 4 AES3 Input Pairs.|
|OPT-MADI||829092||Enable Monitoring of 1 x MADI64 input via BNC with 1 looped output.|
|OPT-OUTPUT-ROUTING||829159||Enables the flexibility to route input signals to various outputs.|
|Option Cards for Signal I/O and/or Processing (includes hardware)
|OPT-DANTE (iVAM)||829171||Enable monitoring from up to a 64ch Dante Input. Hardware card with activation key.|
|OPT-RAVENNA 64 (iVAM)||829172||Enable monitoring from up to a 64ch Ravenna / AES67 Input. Hardware card with activation key.|
|OPT-ANLG/TOS (iVAM)||829170||Enable monitoring of 8 analogue channels on DB-25. Hardware card with software activation key. Includes Optical TOSLINK input.|
|Small form-factor pluggable (SFP) Options|
|SFP-2110 w/Ember+||829086||SMPTE 2110 receiver, Multi-Mode 850 NM, LC (fibre) Connectors. SFP Module with software activation key.|
|SFP-2110 w/NMOS||829086-1||SMPTE 2110 receiver, Multi-Mode 850 NM, LC (fibre) Connectors. SFP Module with software activation key.|
|SFP-2022-6||829088||SMPTE 2022-6 receiver, Multi-Mode 850 NM, LC (fibre) Connectors. SFP Module with software activation key. Use emSET to configure SFP.|
|SFP-2110 w/Ember+ + 2022-6||829087||SMPTE 2110 or 2022-6 receiver, Multi-Mode 850 NM, LC (fibre) Connectors. SFP Module with software activation key. Use emSET to configure SFP.|
|SFP-2110 w/NMOS + 2022-6||829087-1||SMPTE 2110 or 2022-6 receiver, Multi-Mode 850 NM, LC (fibre) Connectors. SFP Module with software activation key. Use emSET to configure SFP.|
|SFP-SDI||829089||3G/HD/SD-SDI single video receiver with active loopback. HD-BNC Connectors. SFP Module with sfw activation key. Only purchase if 3rd SDI I/P is required.|
|SFP-SDI-Fiber||829084||3G/HD-SD-SDI/ASI video SFP optical input; LC (fibre) Connectors. Single-Mode Receiver, Medium Haul, Non-MSA, no output; SFP with software activation key|
|SFP-MADI-MM-Fiber||829081||MADI optical fibre receiver; Multi-Mode, LC (fibre) Connectors. SFP Module with software activation key.|
|SFP-MADI-SM-Fiber||829082||MADI optical fibre receiver; Single-Mode, LC (fibre) Connectors. SFP Module with software activation key.|
|SFP Cage||Yes, 1 x SDI SFP, 1 x MADI SFP|
|Power Consumption||60 Watts typical|
|Power Supply||Internal 100-240 VAC ± 10%, 50/60 Hz, CE & UL approved.|
|Additional Options||Available API’s: Get Available Presets; Get Preset Information; Get Active Preset; Apply Preset; Set Mute/Unmute Clusters; Set Solo Cluster; Set Solo Channel; Source Select|
|Dimension Width||19.0″ (483mm)|
|Dimension Height||3.5″ (90mm)|
|Dimension Depth||5.5″ (140mm)|
|Net Weight||12.0 lbs. (5.5 kg)|
|Shipping Dimensions||23 × 12 × 7.5 in (LxWxH)|
