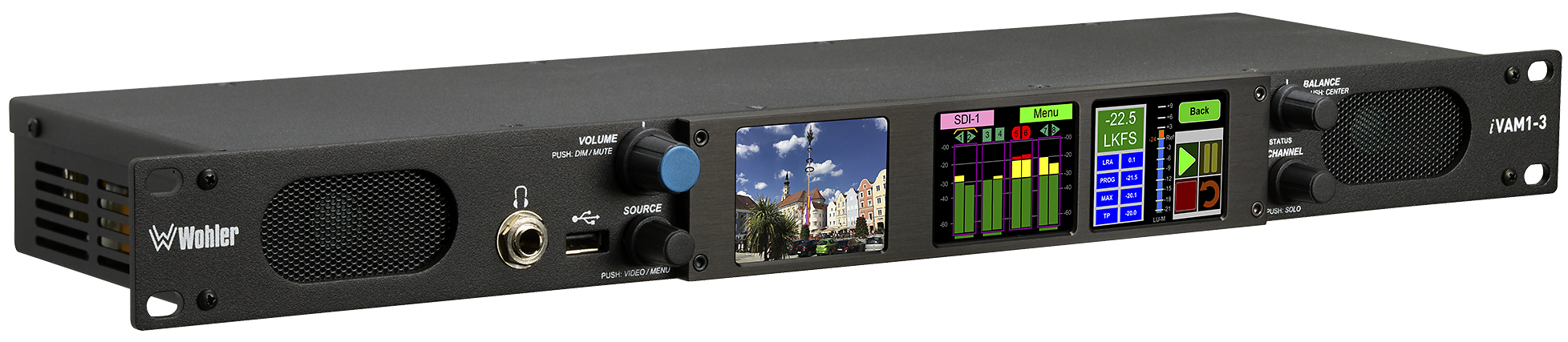

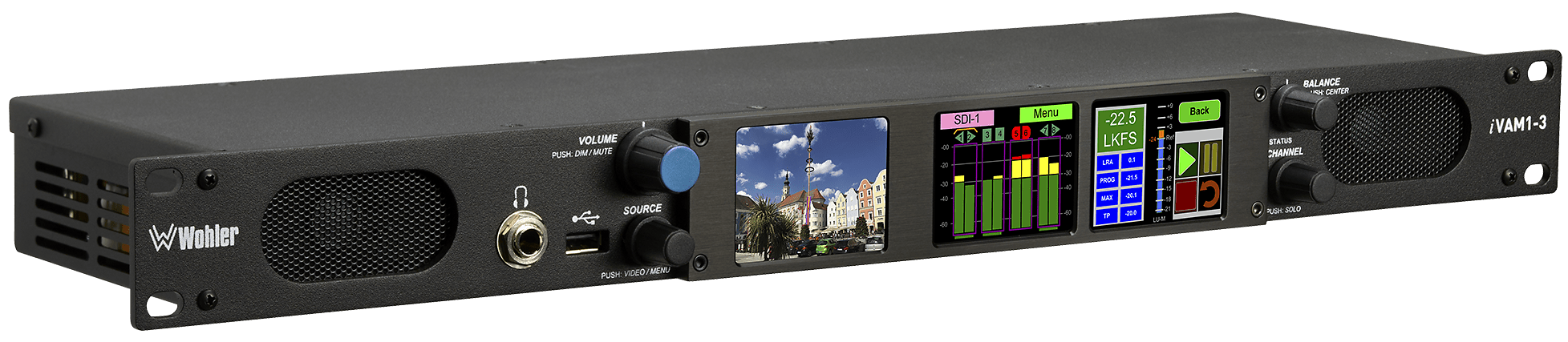

The new iVAM1-3 is a well featured, easy to use, competitively priced 16 channel video and audio monitor which comes standard with 3G-SDI and Analog inputs and includes Loudness measurement and phase status. License other signal formats and processing options, including AoIP, Toslink and 8 channel Analog, as and when needed, either initially or after purchase. With touch screen operation and three screens, the iVAM1-3 is the perfect solution for any application that requires a compact product for simple-to-complex monitoring of an evolving range of professional signals.

 Features/Benefits:

•  Video and audio monitoring (up to 16 channels) from multiple sources
• HDR detection
•  Up to 64 presets

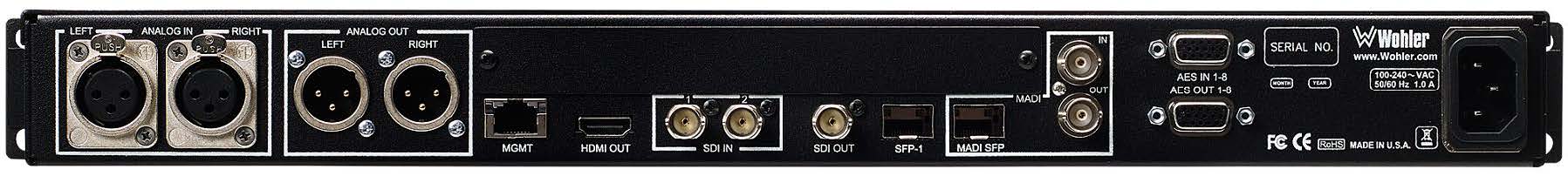

•  2 x 3G-SDI Inputs on BNC; 1 x 3G-SDI Output of selected video source on BNC + 1 pair Analog in/out on XLR
•  Optional I/O for AES3 on HD-15 (incl selected audio source converted to AES3 out), MADI on BNC (looped out), and SMPTE 2110 or SMPTE 2022 via SFP.
•  HDMI Output of the monitored video source included
•  Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
•  Option cards for AoIP or an additional 8 channels of analogue inputs and outputs
•  Software upgradeable via USB or network
• APIs for remote management

 Flexible. Adaptable. Future Proof.

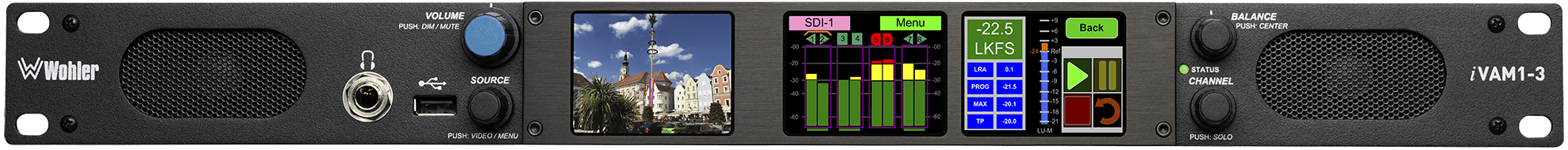

iVAM1-3 is designed to be easy to operate, providing fast access to video, meters, menus and presets.

Options

• OPT-AES (829080) – Enables decoding and monitoring of 8 x AES channels (4 pairs) on HD-15
• OPT-MADI (829092) – Enables decoding and monitoring of 1 x MADI64 input via BNC
• OPT-DOLBY (iVAM)( 829174) – Enable monitoring of Dolby D, DD+ or E streams. Software activation key.  Functions on SDI via BNC, or any of the following OPT/SFP’s:  OPT-AES, SFP-SDI-Fibre, SFP-2022-6, SFP-2110, and SFP-2110+2022-6
• OPT-OUTPUT-ROUTING (829159) -Enables the flexibility to route input signals to various outputs.
• OPT-DANTE (829171) – Enable monitoring from up to a 64ch Dante Input. Hardware card with software activation key. Includes AoIP card enabling primary and secondary
• OPT-RAVENNA 64 (829172) – Enable monitoring from up to 64ch Ravenna/ AES67 Input. Includes NMOS support. Hardware card with software activation key. Includes AoIP
• OPT-ANLG/TOS (829170) – Enable monitoring of 8 Analogue channels on DB-25. Hardware card with software activation key. Includes Optical TOSLINK input
• OPT-SFP (829179) – Adds two additional 3G inputs to 3G products, or two 12G inputs to 12G products.
• SFP-2110 (829086) – SMPTE 2110 receiver; Multi-Mode 850 NM, LC Connectors
• SFP-2022 (829088) – SMPTE 2022 receiver, LC Connectors
• SFP-2110+2022-6 (829087) – SMPTE 2110 or 2022-6 receiver; Multi-Mode 850 NM, LC Connectors
• SFP-MM-MADI-FIBER (829081) – MADI fibre transceiver; Multimode, LC Connectors
• SFP-SM-MADI-FIBER (829082) – MADI fibre transceiver; Singlemode, LC Connectors
• SFP-SDI (829089) – 3G/HD/SD-SDI single video receiver w/active loopback, HD-BNC
• SFP-SDI-FIBER (829084) – 3G/HD/SD-SDI or ASI single receiver w/active loopback, HD-BNC

(iVAM iVAM1)

Media

Datasheet (1.56 MB)

Download
