| Processing Options (software only) | ||
|---|---|---|
| OPT-PRESETS | 829183 | Enables up to 64 presets |
| OPT-OUTPUT ROUTING | 829159 | Enables the flexibility to route input signals to various outputs. |
| OPT-GPIO | 829198 | Enables 4 GPI’s and 2 GPO’s. Software activation key. |
| Signal Licensing Options (software only, no hardware) | ||
| OPT-AES | 829080 | Enables monitoring of 4 x AES Input Pairs with 4 x AES Output Pairs. Software activation key. |
| OPT-MADI | 829092 | Enables decoding and monitoring of 1 x MADI64 input via BNC with a looped output. Software activation key. |
| Option Cards (1 Option Card only per Unit) | ||
| OPT-DANTE | 829171
829171-1 |
Enable monitoring from up to 64 ch of DanteTM input streams, including primary and secondary RJ-45 for hitless/2022-7 support (for Dante and 2110-30 signals) and a Gigabit SFP cage allowing multi-mode and single-mode network SFP’s for AoIP signals. Order 829171 for Optical TOSLINK input or 829171-1 for 2 unbalanced Analog inputs. |
| OPT-RAVENNA 64 | 829172
829172-1 |
This AoIP option card enables monitoring from up to 64ch of RavennaTM / AES67 input streams, including primary and secondary RJ-45 for hitless / 2022-7 support (for Ravenna and 2110-30 signals) and a Gigabit SFP cage allowing multi-mode and single-mode network SFP’s for AoIP signals. Order 829171 for Optical TOSLINK input or 829171-1 for 2 unbalanced Analog inputs. |
| OPT-ANLG/TOS | 829170 | Enable monitoring of 8 analog channels on DB-25. Hardware card with software activation key. Includes Optical TOSLINK input. |
| OPT-SFP CARD | 829179 | Adds two additional 3G inputs to 3G products, or two 12G inputs to 12G products. |
| OPT-RMOC-12G | 829189(1U)
829190(2U) |
Will enable 12G inputs on any 3G iSeries Monitor! Includes single BNC and SFP slot for 12G/3G SDI or ST2110 input. Separate SFP Purchase required. Also Enables MAVRIC functionality, capable of monitoring 16 channels of audio plus a single video input (iVAM Series only for video input), selectable from a choice of sources connected directly to the card, or inputs connected to the in-rack monitor. |
| Small form-factor pluggable (SFP) Options with software activation key | ||
| SFP-SDI | 829089 | 3G/HD/SD-SDI single video receiver with active loopback. HD-BNC Connectors. Only purchase if 3rd SDI input is required. |
| SFP-SDI-Fiber | 829084 | 12G/3G/HD/SD-SDI single mode Optical LC (fiber) video receiver. Only required if 12G-SDI input is needed via Fiber OR an additional 3G input is required. 12G only applicable for 12G capable units, such as iVAM1-12G, iVAM2-12G. |
| SFP-2022-6 | 829088 | SMPTE 2022-6 receiver. Multi-Mode 850 NM, LC (fiber) Connectors. Use MN-SET to configure SFP. |
| SFP-2110 w/NMOS or Ember+ | 829086-1 | SMPTE 2110 receiver. Multi-Mode 850 NM, LC (fiber) Connectors. Use MN-SET to configure SFP. User selectable between NMOS and Ember+. Unless specified, NMOS will be delivered as standard. |
| SFP-2110 w/NMOS or Ember + 2022-6 | 829087-1 | SMPTE 2110 or 2022-6 Receiver, Multi-Mode 850 NM, LC (fiber) Connectors. Use MN-SET to configure SFP. User selectable between NMOS and Ember+. Unless specified, NMOS will be delivered as standard. |
| SFP-MADI-Fiber (MM or SM) | 829081
829082 |
MADI optical fiber transceiver; Multimode or Singlemode, LC (fiber) Connectors. Use 829081 for Multimode (MM). Use 829082 for Singlemode (SM). |

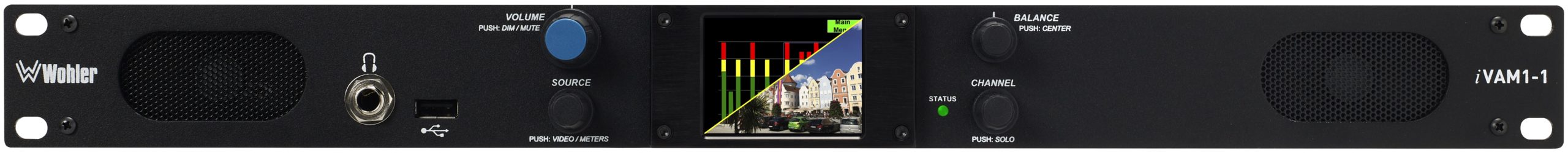

WOHLER iVAM1-1
WOHLER iVAM1-1
3G-SDI & Analogue Video/Audio Monitoring & Metering with Optional Signal Upgrades
IVAM1-1G
£2,540.00 Price excludes VAT
Product lists can be submitted to HHB for a packaged quotation
Add item to Quote List
Add item to Quote List
The all new iVAM1-1 represents a simple but well featured competitively priced video and audio monitor for the budget-conscious. With fast easy monitoring of audio and video, this unit comes standard with 3G-SDI and Analogue inputs. License other signal formats as and when needed, either initially or after purchase.
Flexible. Adaptable. Future Proof.
iVAM1-1 is designed to be easy to operate, providing fast access to either video or meters. The unit comes standard with Analogue and 3G-SDI but has options for additional signals, including AES3, MADI64, SMPTE-2110 and SMPTE-2022.
Touch screen front panel controls utilize previous mature design philosophies of our iAM Series products, while physical front panel controls provide access to main volume, balance, and auxiliary controls to supplement touch controls. A front mounted USB port is provided for software updates to support new and emerging technologies – the perfect solution for any application that requires a compact budget friendly unit for monitoring an evolving range of professional signals.
Features/Benefits:
- Video or audio monitoring (up to 16 channels) from multiple sources
- 2 x 3G-SDI Inputs on BNC; 1 x 3G-SDI Output of selected source on BNC
- Optional I/O for AES3 on HD-15 (incl selected audio source converted to AES3 out), MADI on BNC (looped out), and SMPTE 2110 or SMPTE 2022 via SFP.
- HDMI Output of the monitored video source is included as standard
- Touch screen front panel for easy, intuitive control. Toggle between audio and video
- Built-in speakers, headphone jack, USB and Ethernet ports
- SFP cage allows for additional signal formats. Dedicated MADI SFP cage included
- Software upgradeable via USB or network.
- APIs for remote management.
Options:
(iVAM iVAM1)
