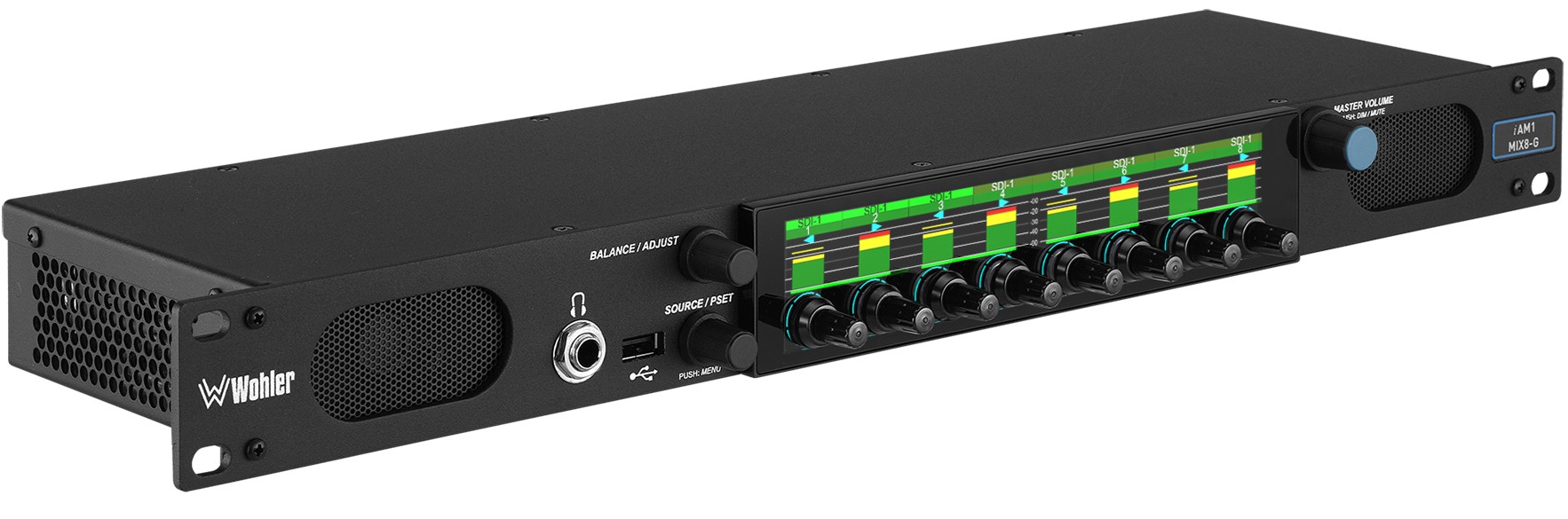

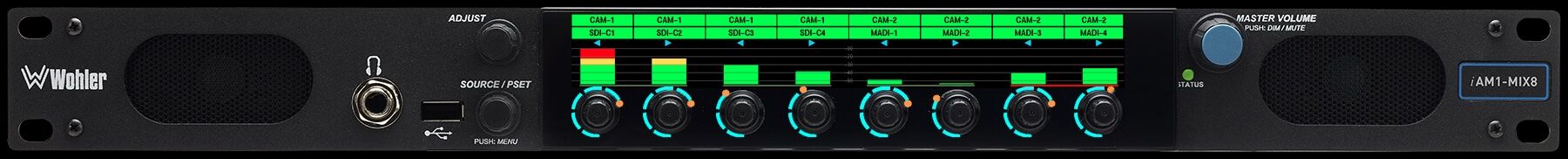

The iAM1-MIX8 is a design that emphasizes individual mechanical controls for sum, mute and solo operations.  This latest re-design of our successful MIX series has been enhanced with upgraded screen graphics and includes a touch screen, while retaining the individual channel rotary encoders.  As part of the iSeries product line, it is a well featured and competitively priced IP ready audio monitor and mixer.  The iAM-MIX8 can be configured to operate in either single channel (8 channel) or pair mode (16 channel).

Flexible. Adaptable. Future Proof.

Standard features include 3G-SDI and a pair of Analogue inputs and outputs. Upgrade/license other signal formats and processing options, as and when needed, either initially or after purchase. Options for additional signals, include Dante^TM or Ravenna^TM (with 2022-7 support), SMPTE-2110, SMPTE-2022-6, AES3, and MADI.

Network Capable with Remote access options:

The unit includes built-in support for remote monitoring provided by our MAVRIC software applications suite.  All iAM Series monitors contain an onboard web server. Multiple units on the same network can be updated, monitored, and controlled via a web-based user interface.



Key Features

• Fast selection and summing of up to 8 channels or 8 pairs (16 channels),
• Master volume control that also provides a master mute/unmute
• Channel names can be displayed for each input or pulled from a router

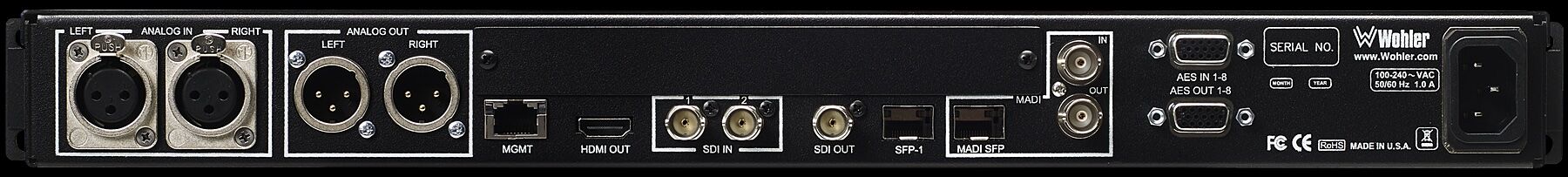

• Standard I/O: 2 x 3G-SDI Inputs on BNC; 1 x 3G-SDI Output on BNC + 1 pair Analog in/out on XLR
• Optional I/O: for AES3 on HD-15, (incl selected audio source converted to AES3 out), MADI on BNC (looped out), and SMPTE 2110 or SMPTE 2022 via SFP
• Option cards: Choose between AoIP, an additional 8 channels of analog inputs and outputs, 2 additional SFP cages, or a 12G/MAVRIC option card.
• Store and retrieve up to 64 presets
• Optional Output routing enables the flexibility to route input signals to various outputs
• Built-in speakers, headphone jack, USB and Ethernet ports with API’s for remote management
• Software upgradeable individually via USB or multiple units on the same network

Specifications

Dimensions (W x H x D)	1RU in standard 19” rack: 19” x 1.75” x 5.5” (483 mm x 45 mm x 140 mm). Shipping dims: 23”x 6”x 12”
Shipping Weight / Net Weight	8.0 lbs. (3.6 kg) / 5.5 lbs. (2.5 kg)
Power Consumption / Supply	65W Typical, 18VDC, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved
Display Type / Resolution	7” (178 mm) LCD Capacitive Touchscreen; 1242H x 280V
Viewing Angle	160° (H) x 160° (V)
Audio Channels	8 or 16
Hum & Noise	Better than -68 dB below full output
Peak Acoustic Output	90 dB SPL @ 2 feet
Speaker Power Output	5W RMS per side, 12W Peak
Presets	Up to 64 programmable/nameable. Can be copied from unit to unit via USB or GUI software and Ethernet
Upgrades	Via USB or GUI web interface; Upgrading multiple units available via web interface
Router Integrations	Units support Evertz, Grass Valley & Tallyman protocols for automated display of channel labels
APIs	Get Available Presets; Get Preset Information; Get Active Preset; Apply Preset; Set Mute/Unmute Channel; Set Solo Channel; Source Select
