The eAMP1-S16-MDA offers fast and intuitive confidence monitoring of 3G/HD/SD-SDI, AES3 and analog audio sources.  Whether in the studio or on the road, this unit provides simultaneous selection and summing of the selected source. It features adjustable volume and balance controls, clear display of levels, and phase indications.

Flexible & Adaptable

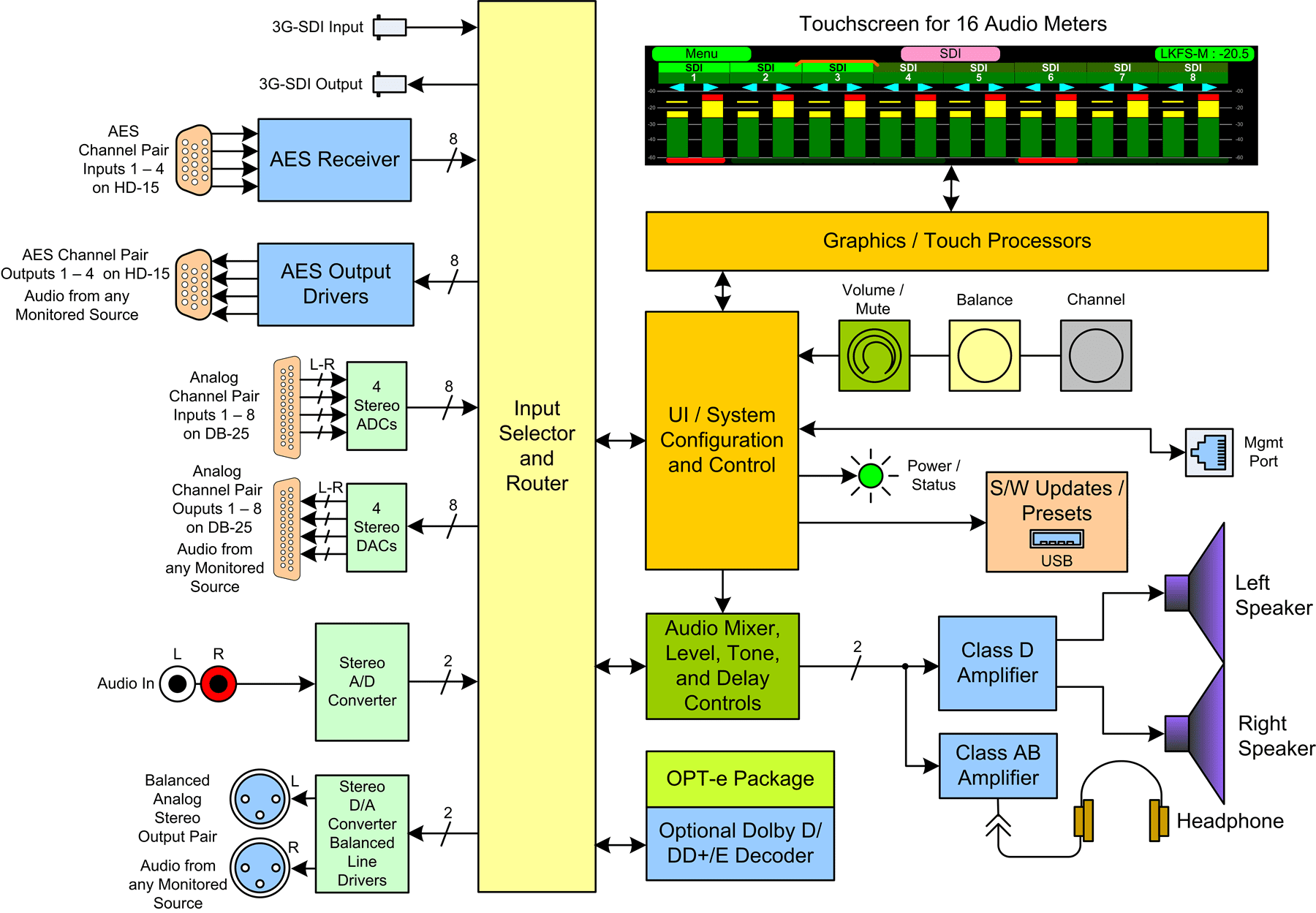

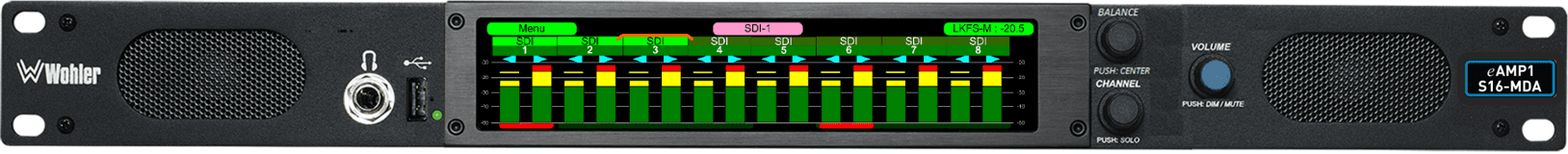

The e AMP1-S16-MDA is designed to be much easier to operate than the retired S8’s and include a wide 7” LCD touchscreen display providing fast access to input sources, meters and menus, all augmented by hardware controls. And while we are putting our best price forward with a basic monitoring package that includes 3G/HD/SD-SDI, AES and Analogue inputs (no IP options), a software upgrade package that includes loudness, presets, web meters/monitoring/configuration and customized output routing is available to bring its functionality in line with the more recent iSeries offerings in our price list.  Dolby D, DD+ and E decoding are also optional add-ons

Key Features

•  Low cost and energy efficient
• Simultaneous level metering of 16 de-embedded audio channels from SDI input, AES or Analog sources
• Quick, intuitive push-button or touch selection of any channels or pairs to sum, mute or solo
• Monitor through built-in speakers, headphones or analog outputs with Optional muting for internal speakers
• Stereo phase indicators
• Adjustable Volume and Balance

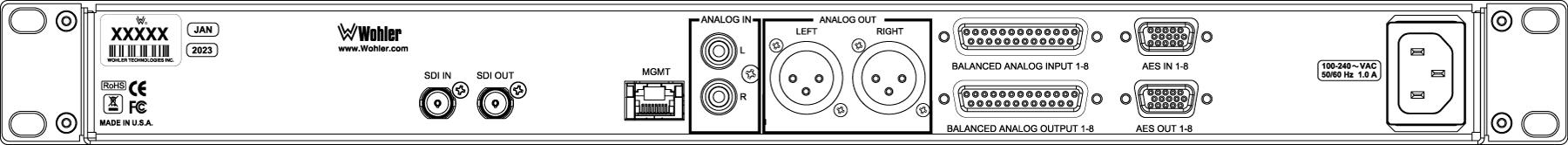

• Balanced stereo analog outputs on XLR-Ms. Fixed level or volume/balance controlled.
• Automatic frame rate detection and selection
• Selectable line level or front panel volume control and outputs
• Shallow chassis depth for easy installation in OB vehicles and consoles
• OPT DOLBY adds decoding of *Dolby D, DD+ and E (requires OPT-e package)
• APIs provide easy integration with 3rd party systems (requires OPT- e package)

Upgrade Options

OPT-e package		829186		Adds Loudness monitoring, Presets, Web metering/monitoring/configuration and Output routing
OPT-DOLBY		829174		Allows decoding and monitoring of Dolby® D, DD+ & E. Includes Dolby Zoom & metadata. *This option requires OPT-e package



Specifications

Dimensions (W x H x D)		1RU in standard 19” rack: 19” x 1.75” x 5.5” (483 mm x 45 mm x 140 mm). Shipping dims: 23”x 6”x 12”
Shipping Weight / Net Weight		5.8 lbs. (2.6 kg) / 3.3 lbs. (1.5 kg)
Power Consumption / Supply		19W, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved
Display Type / Resolution		7” (178 mm) LCD Capacitive Touchscreen; 1242H x 280V
Viewing Angle		160 (H) x 160 (V)
Audio Channels		16 Max
Hum and Noise		Better than -68 dB below full output
Peak Acoustic Output		90 dB SPL @ 2 feet
Speaker Power Output		5W RMS per side, 12W Peak
Upgrades		Via USB or GUI web interface
