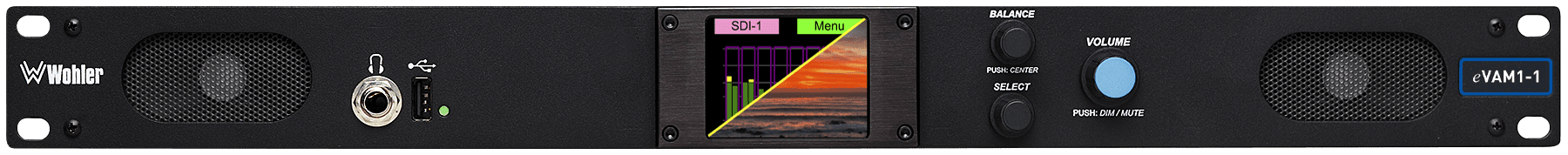

The new eVAM1-1 is a well featured, easy to use, competitively priced baseband only, 16 channel video and audio monitor which ships standard with 3G-SDI (2 inputs), AES3 (1 pair) & Analog Inputs & Outputs (2 selectable pairs on XLR or RCA).  With touch screen operation included as well as 8 presets, the eVAM1-1 is the perfect solution for any application that requires a compact product for monitoring of baseband signals.



Key Features

• Video and audio monitoring (up to 16 channels) from multiple sources

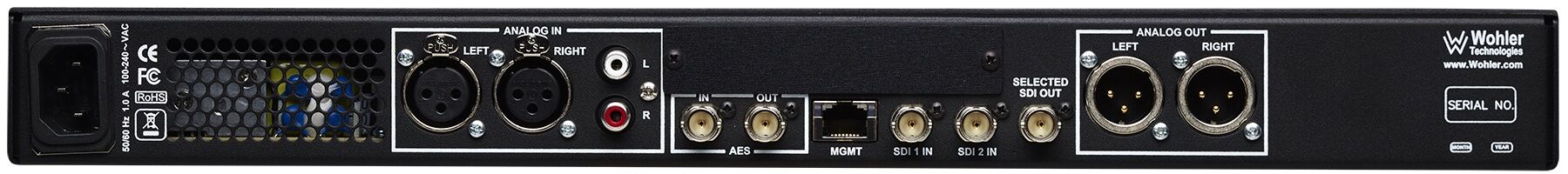

• 2 x 3G-SDI Inputs on BNCs with selected output on BNC, 1 pr AES3 In/out on BNC, 1pr balanced Analog I/O on XLR + 1 pr unbalanced Analog inputs on RCA
• Quick, intuitive push-button or touch selection of any channels or pairs to sum, mute or solo
• Monitor through built-in speakers, headphones or analog outputs with optional muting for internal speakers
• 8 presets
• Stereo phase indicators
• Adjustable Volume and Balance
• Automatic frame rate detection and selection
• Selectable line level or front panel volume control and outputs
• Shallow chassis depth for easy installation in OB vehicles and consoles
• Software upgradeable via USB or network
• Remote GUI for preset creation and web meters
• APIs for remote management

Specifications

Dimensions (W x H x D)	1RU in standard 19” rack: 19” x 1.75” x 4.8” (483 mm x 45 mm x 120 mm). Shipping dims: 23”x 6”x 12”
Shipping Weight / Net Weight	6.0 lbs. (2.7 kg) / 3.3 lbs. (1.5 kg)
Power Consumption / Supply	15W Typical, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved
Display Type / Resolution	2.4″ (60mm) LCD Capacitive Touchscreen, 320H x 240V6 Max
Viewing Angle	160 (H) x 160 (V)
Audio Channels	16 Max
Hum and Noise	Better than -68 dB below full output
Peak Acoustic Output	90 dB SPL @ 2 feet
Speaker Power Output	5W RMS per side, 12W Peak
Upgrades	Front panel USB for software updates
APIs	Provide easy integration with 3rd party control systems
