16 channel, single screen, 3G-SDI, HDMI, AES3 & Analogue Audio & Video Monitor


Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List

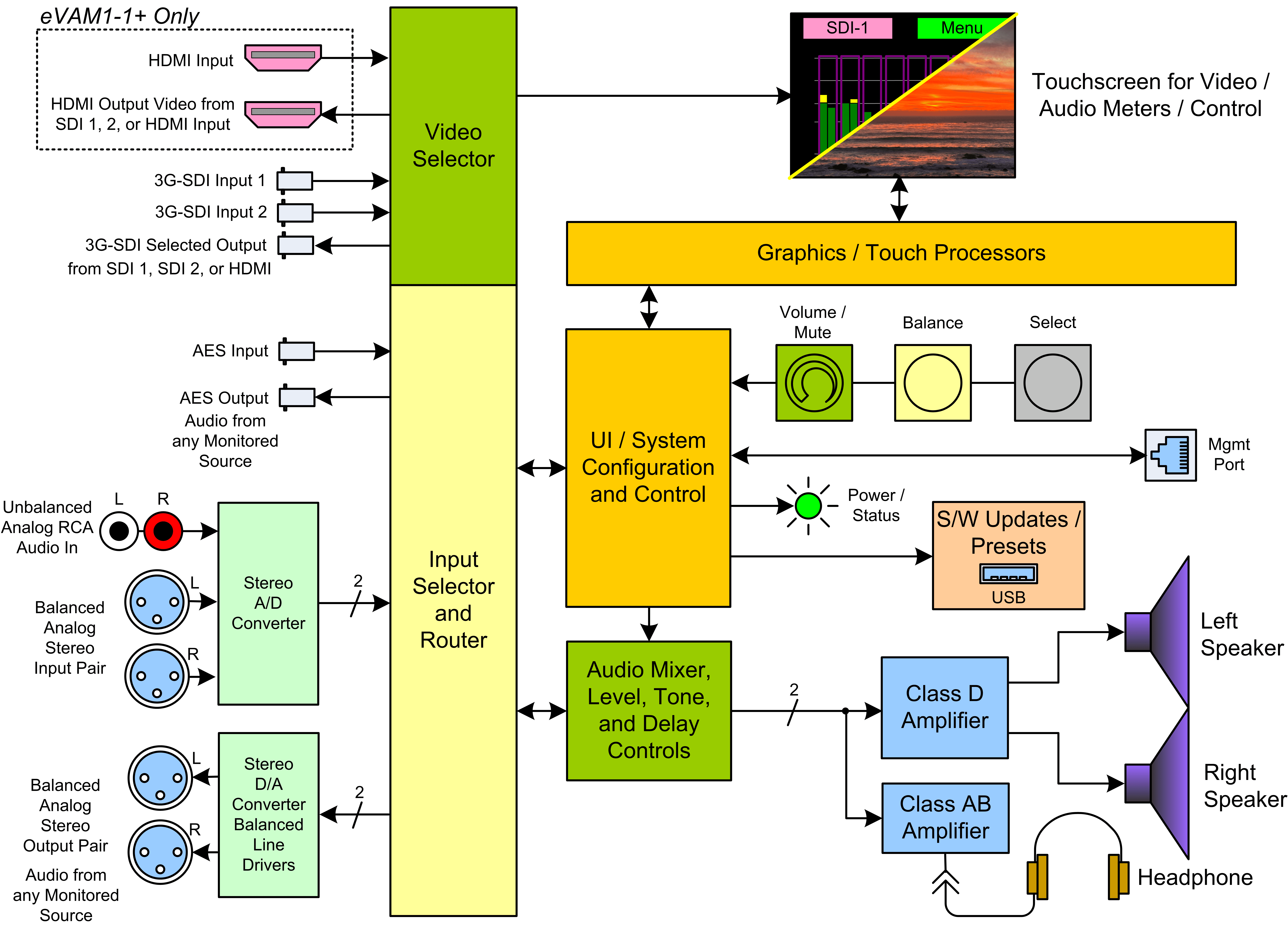

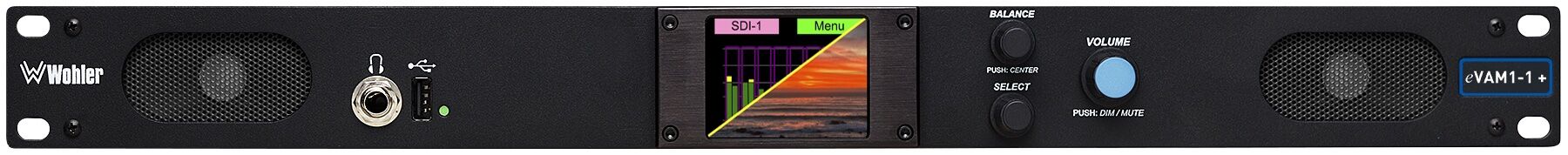

The new eVAM1-1+ is a well featured, easy to use, competitively priced baseband only, 16 channel video and audio monitor which ships standard with 3G-SDI (2 inputs), 1 HDMI I/O, AES3 (1 pair) & Analogue Inputs & Outputs (2 selectable pairs on XLR or RCA).  With touch screen operation included as well as 8 presets, the eVAM1-1+ is the perfect solution for any application that requires a compact product for monitoring of baseband signals.


Key Features

  • Video and audio monitoring (up to 16 channels) from multiple sources

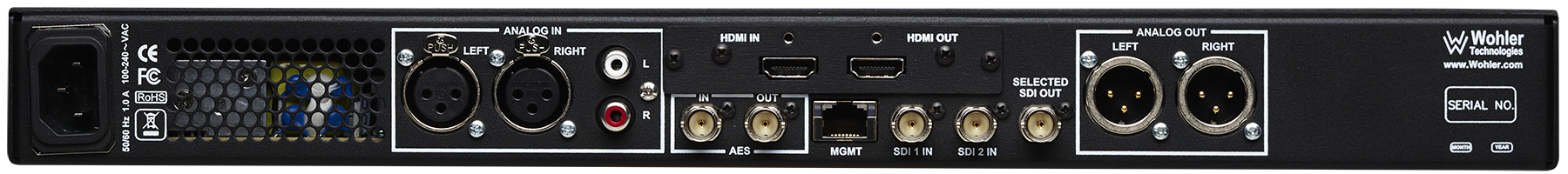

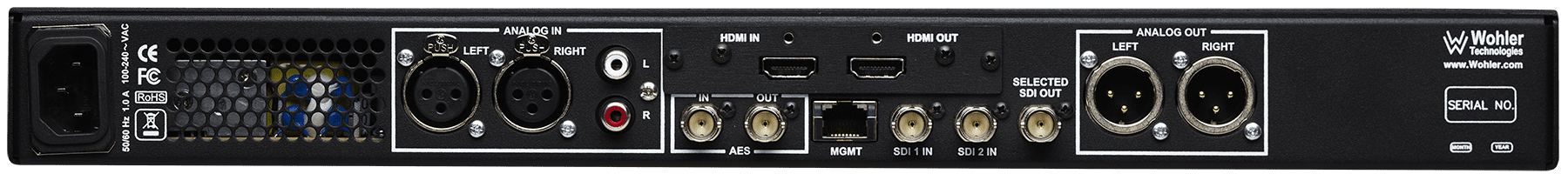

  • 2 x 3G-SDI Inputs on BNCs with selected output on BNC, 1 HDMI I/O with selected ouput from monitored SDI or HDMI, 1 pr AES3 In/out on BNC, 1pr balanced Analog I/O on XLR + 1 pr unbalanced Analog inputs on RCA
  • Quick, intuitive push-button or touch selection of any channels or pairs to sum, mute or solo
  • Monitor through built-in speakers, headphones or analog outputs with optional muting for internal speakers
  • 8 presets
  • Stereo phase indicators
  • Adjustable Volume and Balance
  • Automatic frame rate detection and selection
  • Selectable line level or front panel volume control and outputs
  • Shallow chassis depth for easy installation in OB vehicles and consoles
  • Software upgradeable via USB or network
  • Remote GUI for preset creation and web meters
  • APIs for remote management


Dimensions (W x H x D) 1RU in standard 19” rack: 19” x 1.75” x 4.8” (483 mm x 45 mm x 120 mm). Shipping dims: 23”x 6”x 12”
Shipping Weight / Net Weight 6.0 lbs. (2.7 kg) / 3.3 lbs. (1.5 kg)
Power Consumption / Supply 15W Typical, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved
Display Type / Resolution
2.4″ (60mm) LCD Capacitive Touchscreen, 320H x 240V6 Max
Viewing Angle
160 (H) x 160 (V)
Audio Channels 16 Max
Hum and Noise Better than -68 dB below full output
Peak Acoustic Output 90 dB SPL @ 2 feet
Speaker Power Output 5W RMS per side, 12W Peak
Upgrades Front panel USB for software updates
APIs Provide easy integration with 3rd party control systems
