32 Point, digitally controlled, analogue audio patch bay routing system


Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List

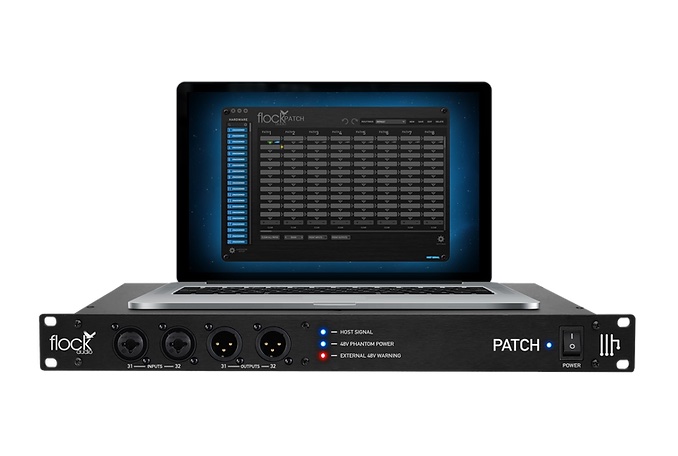

The Flock Audio PATCH LT System is a digitally controlled, 100% analogue audio patch bay routing system. A combination of software known as the PATCH APP and a 32 Point connection hardware component allows users to easily route and control analogue audio routings without having to resort to the use of manual patch cables.

The PATCH APP software application (OSX & Windows Compatible) is designed with familiarity in mind. PATH’s in the application represent audio signal flows from top to bottom. Signal flows are divided up into single vertical columns allowing users to drag + drop available analogue audio equipment connected to the PATCH LT’s Hardware component. This analogue audio equipment is catalogued in the Hardware Index, located to the left side of the PATCH APP.

The PATCH LT Hardware component is a 1U rack-mountable unit that acts as the centrepiece hub of an audio equipment processing setup. Utilizing digital control over analogue audio signals is what makes the PATCH LT System unique and unlike anything else in the audio industry.

  • 32 Points – 16 Inputs x 16 Outputs
  • Phantom Power – 16 Channels
  • Front Panel I/O – 1 Input & 1 Output
  • Host Control – USB-B
  • LED Indicators – Power only
  • Multi-Unit Compatible – 8 Units
  • Rear Connectors – 25-pin DSUB
