128 ch. Dante/AES67 Interface

DAD 128 ch. Dante/AES67 Interface

DAD 128 ch. Dante/AES67 Interface

I/O card for DAD AX64/AX32/NTP Penta 720 & 721s

AX32-CARD-DANTE

£1,540.00 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List

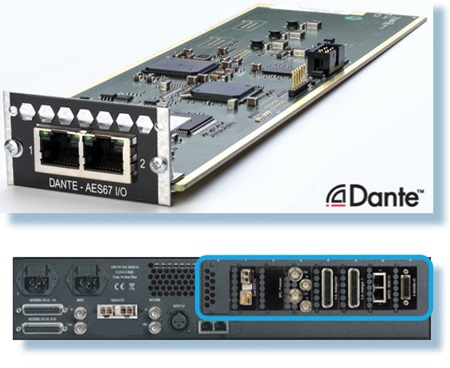

DAD 128-ch Dante card for DAD AX64, AX32 and NTP Penta units

  • 128 Channels in and out (8 cards = 1024 channels)
  • Sample rates: 44.1 to 192 kHz
  • Channel count scales down with the sample rate
  • Bi-directional sample rate conversion for bridging between different networks
  • Enables connection between unsynchronized Dante/AES67 networks
  • Up to 128 bidirectional Dante flows
  • Dual Ethernet connectivity – switched or redundant
  • Support for Dante Domain Manager
  • AES67 compatible with SAP discovery
  • Network delay setting up to 21 msec.
