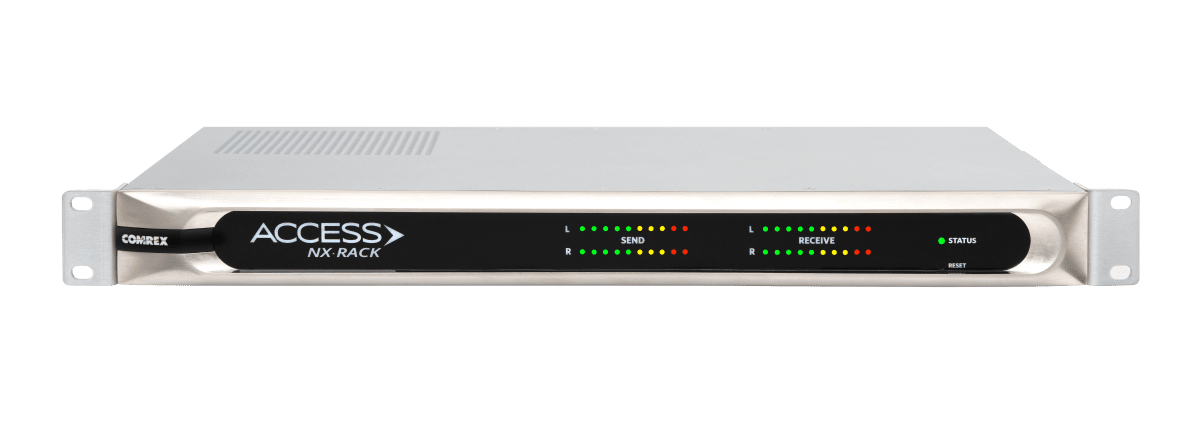

COMREX ACCESS NX Rack

A rackmount IP audio codec featuring AES67

ACCESS-NX-R

£2,760.00 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List



Since it was released in 2005, the Comrex ACCESS Rackmount has become an industry standard. Now, it’s been updated to incorporate the latest technological advances.

ACCESS NX Rack features completely redesigned hardware, allowing for AES67, AES3 or analog audio I/O. NX Rack can connect to Wi-Fi and 4G modems, and supports a wide range of connection protocols and audio encoders. It’s driven via a new HTML5-based web user interface. ACCESS NX Rack is backward-compatible with all Comrex IP audio codecs and the Comrex FieldTap smartphone app.

Key Features

  • AES67, AES3 and analog audio I/O
  • HTML5-based user interface
  • EBU 3326/SIP mode for compatibility
  • CrossLock for secure and stable broadcasting
  • Switchboard for easier connectivity

CrossLock

CrossLock is quite simply the most advanced network management tool on the market today. When used in “bonding” mode, CrossLock gives users the ability to manage and bond multiple data connections together simultaneously. When a new network is introduced, CrossLock will immediately evaluate how much bandwidth is available, while factoring in latency and jitter information, and combine the two connections to take advantage of all available bandwidth. In Redundant mode, all data will be sent over all networks. CrossLock can also monitor each data connection individually and, when necessary, apply appropriate error correction, recovery, or concealment techniques.

HotSwap

HotSwap allows users to back up studio-to-transmitter links (STL) or other dedicated links with a wireless modem.

HotSwap lets users select a network that will only be engaged if the primary network fails. The system will warn of this status with a contact closure, and automatically fallback to the primary once it’s restored. Fall-over to backup happens in a matter of seconds, and fallback is seamless.

For ACCESS codecs, any supported modem can be used as a back-up.

HotSwap is included in firmware version 4.3, which is available now.

User Interface

ACCESS NX Rack is controlled with an easy-to-use browser based interface. Using any HTML5-enabled browser, you can log-in from anywhere to manage settings, adjust controls, and monitor connections. The page displays connection status, extensive network diagnostics, and audio level meters for remote monitoring. From any location, users are able to configure profiles for various connections with point-and-click connection commands.

Codec Commander

Codec Commander is a Microsoft Windows™ application you can use to control your audio codec. You can manage your connections, check statistics, view audio metering, adjust audio profiles or change system settings.

App Compatibility

ACCESS is compatible with smartphone applications, including Linphone and Luci Live. Connect to ACCESS from your smartphone quickly and easily for easy drop-ins and spontaneous remotes.

ACCESS is also compatible with FieldTap. A free application for iOS and Android, FieldTap makes it simple to connect with the touch of a button. Plus, FieldTap is compatible with all other Comrex IP audio codecs.

Switchboard

Comrex Switchboard was created to make it easy to make connections between Comrex IP codecs. This is especially important when broadcasting over networks that have firewalls and routers and other IT snags. Switchboard allows your codec to sync with a cloud-based server, making it possible to connect without having to know the IP addresses on either end of the link.

Switchboard saves all the details of the codecs subscribed to the server. This means that when it’s time to connect, you don’t have to enter any information – you can simply choose the codec you want to connect to from a menu, and hit a button.

Demo Request

Specifications

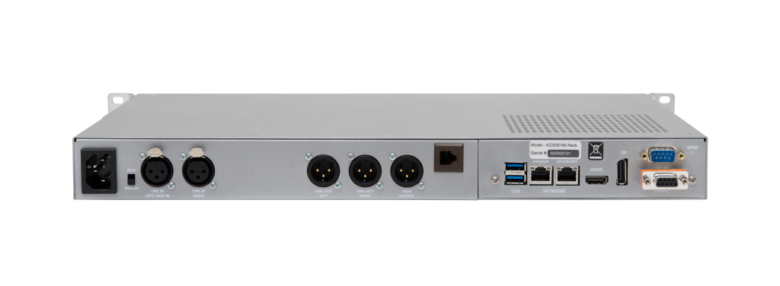

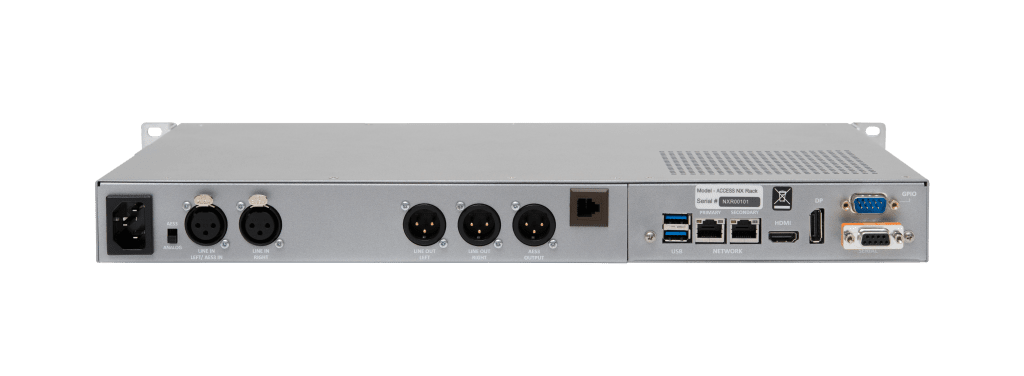

Audio Connections:

  • Balanced XLR line-level audio inputs – 0dBu nominal, +20dBu peak
  • Balanced XLR line-level audio outputs – 0dBu nominal, +20dBu peak
  • AES3 XLR Digital audio input
  • AES3 XLR Digital audio output
  • Analog/AES3 switch only on input

Audio Levels

  • Audio input level: 0 dBu nominal, +20dBu peak
  • Audio output level: 0 dBu nominal, +20dBu peak

Other Connections

  • 2x Ethernet Ports: 1000 baseT
  • Contact Closures: DB-9 male (contact closure cable sold separately)
  • Serial Port: DB-9 female (serial cable sold separately)
  • Power: 3 conductor IEC
  • 2x USB
  • HDMI
  • DisplayPort

Power and Physical

  • Internal Supply: 120/240 VAC 60/50 Hz 50 Watts
  • Size: 1U Rack – 19″ W x 9″ D x 1.75″ H (48.25 cm x 22.86 cm x 4.5 cm)
  • Weight: 9 lbs (4 kg)
