32″ 12-bit Ultra HD LCD screen supports up to 4 channels of 3G/HD/SD-SDI


£3,300.00 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List

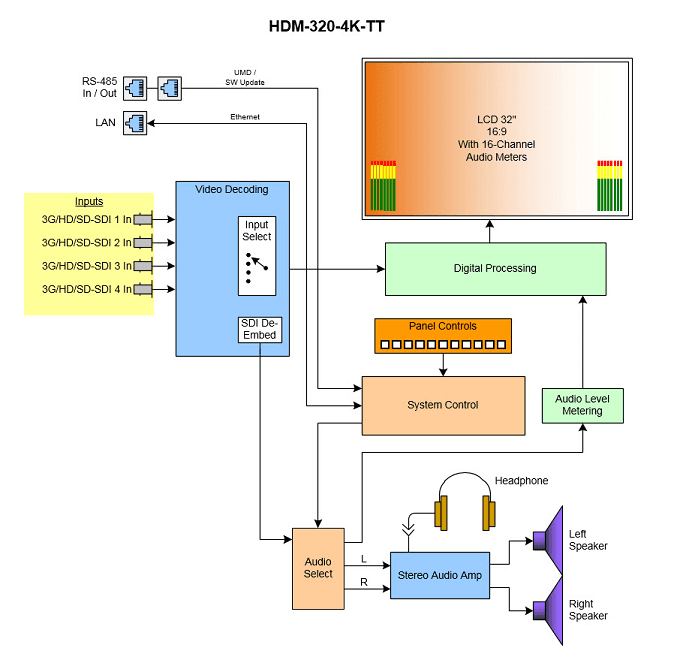

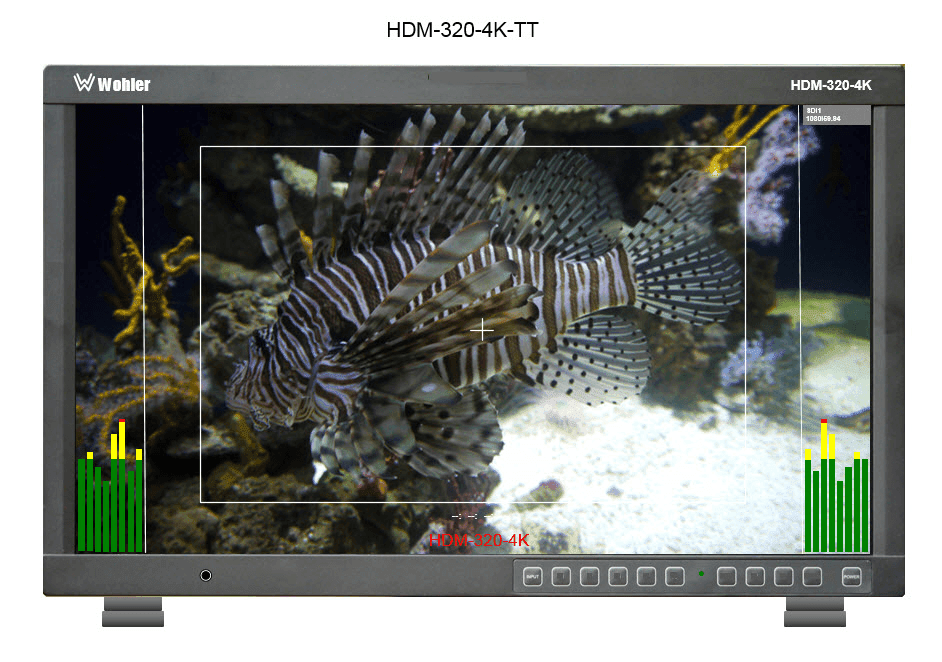

The HDM-320-4K-TT monitor sets a new standard in UltraHD LCD monitors for broadcast and professional video applications. It provides a 32”, 1920 x 1080 resolution, 16:9 format, 60Hz refresh, anti-glare IPS LCD screen. All video formats are scaled to fit on the screen in the highest quality using 12-bit digital processing, precision scaling and gamma correction to produce the best images possible.


  • Monitor 2SI Interleave or Quad-Link 4K video using four HD-SDI inputs together.
  • Two display modes: single display and quad link display.
  • Each of 4 SDI inputs can be displayed by full screen in single mode. Quad link mode supports 2-SI and square division display.
  • User defined hot key functionality for either H/V delay, underscan, on-screen display.
  • On-screen, 16-channel level metering provides audio confidence monitoring.
  • Tally and on-screen labeling provide quick and easy signal identification.
  • CRT-style image controls allow video image enhancement for each screen individually.
  • Supports multi-format analog and digital audio signals.
  • Allows adjustment of the parameters for each screen.
  • User-adjustable color temperatures with presets.

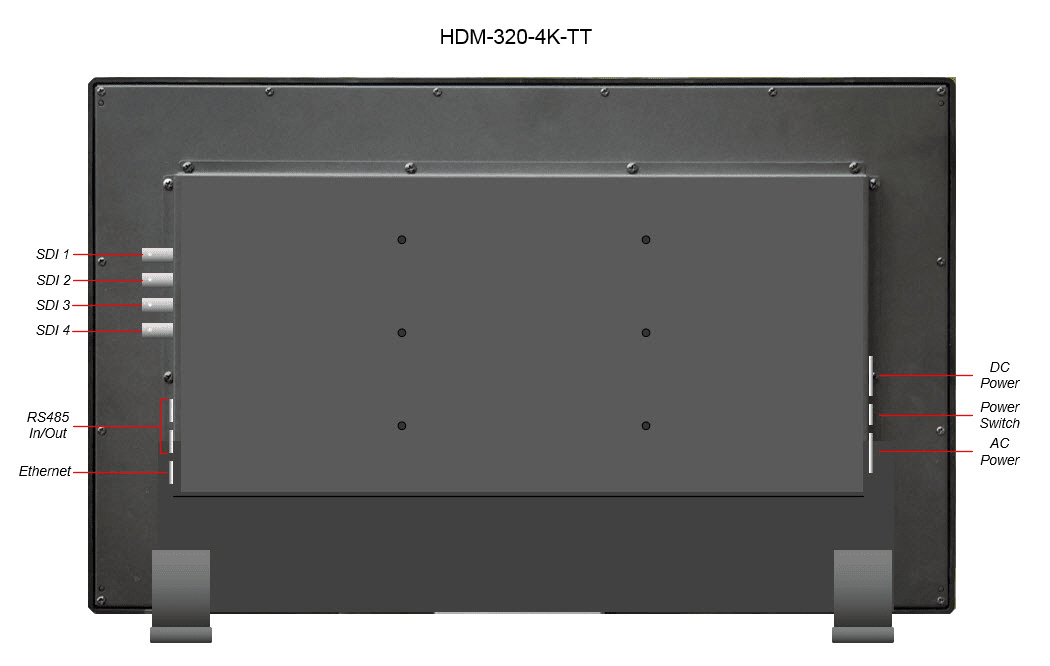

  • Ethernet, RS-485 and GPI control interfaces.

Video Specifications

Color Depth 1.073G colors
Contrast 3000:1
Diagonal Display Size 32″ Diagonal
Display Resolution (HxV) 1920 H x 1080 V
Display Type Active color matrix amorphous LCD IPS with LED Backlight
Luminance 300 cd/m2
Native Aspect 16:9,4:3
Number of screens 1
Viewing Angle 178° x 178°
