SENNHEISER Evolution Wireless Digital

SENNHEISER Evolution Wireless Digital

Digital UHF system

EW-D Set

Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List



Embrace the power of a digital UHF system, ready for any RF environment. Evolution Wireless Digital raises the bar by providing the highest dynamic range of any wireless system currently on the market, utilizing advanced features that simplify your setup and guarantee the most reliable connection. Maximize efficiency by taking full control with the Sennheiser Smart Assist app and automatically coordinate frequencies with ease. Increased bandwidth and the lowest latencyof any digital wireless system currently available make Evolution Wireless Digital the most powerful tool for those who put quality and performance above all else.



Key Features

  • Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
  • Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
  • Auto scan creates reliable connections with minimal time and effort
  • 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
  • Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
  • 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
  • 2,240 selectable frequencies allow for fine tuning
  • Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Raising the bar

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own







Equidistant Spacing – simpler than it sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.



An engineer in your pocket

The power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.





Currently Available Sets

835-S Vocal Set

Includes:

• EW-D EM receiver

• EW-D SKM-S handheld transmitter

• MMD 835 microphone module

• MZQ 1 microphone clamp

• 2 rod antennas

ME 2 Lavalier  Set

Includes:

• EW-D EM receiver

• EW-D SK bodypack transmitter

• ME 2 lavalier microphone (omnidirectional)

• 2 rod antennas

ME 3 Headmic Set

Includes:

• EW-D EM receiver

• EW-D SK bodypack transmitter

• ME 3 headset microphone (cardioid)

• 2 rod antennas

ME 4 Lavalier Set

Includes:

• EW-D EM receiver

• EW-D SK bodypack transmitter

• ME 4 lavalier microphone (cardioid)

• 2 rod antennas

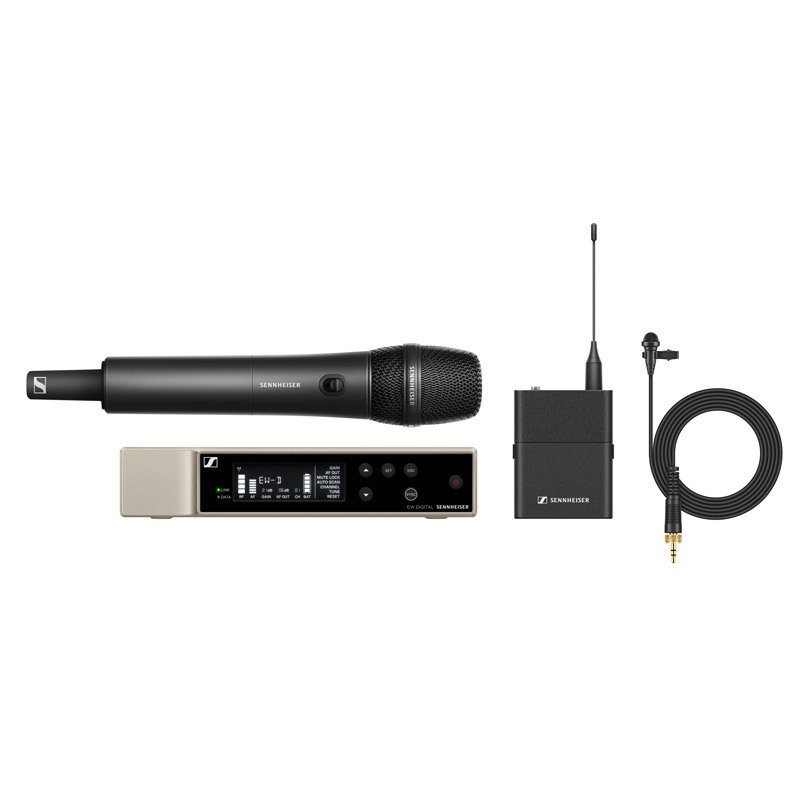

ME 2/ 835-S Combo Set

Includes:

• EW-D EM receiver

• EW-D SK bodypack transmitter

• EW-D SKM-S handheld transmitter

• ME 2 lavalier microphone

• MMD 835 microphone module

• MZQ 1 microphone clamp

• 2 rod antennas

SK Base Set

Includes:

• EW-D EM receiver

• EW-D SK bodypack transmitter

• 2 rod antennas

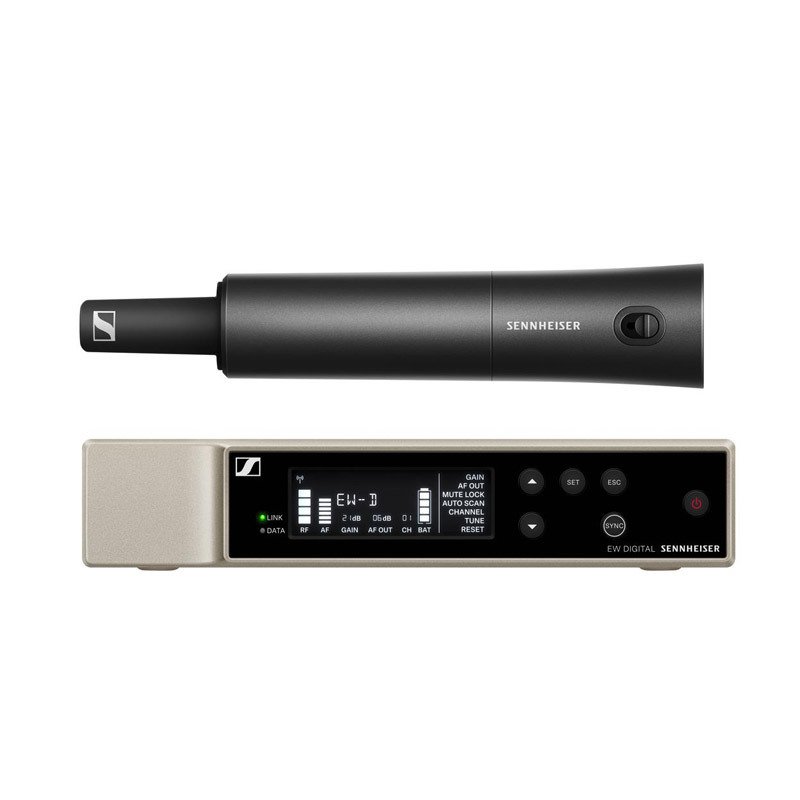

SKM-S Base Set

Includes:

• EW-D EM receiver

• EW-D SKM-S handheld transmitter

• 2 rod antennas

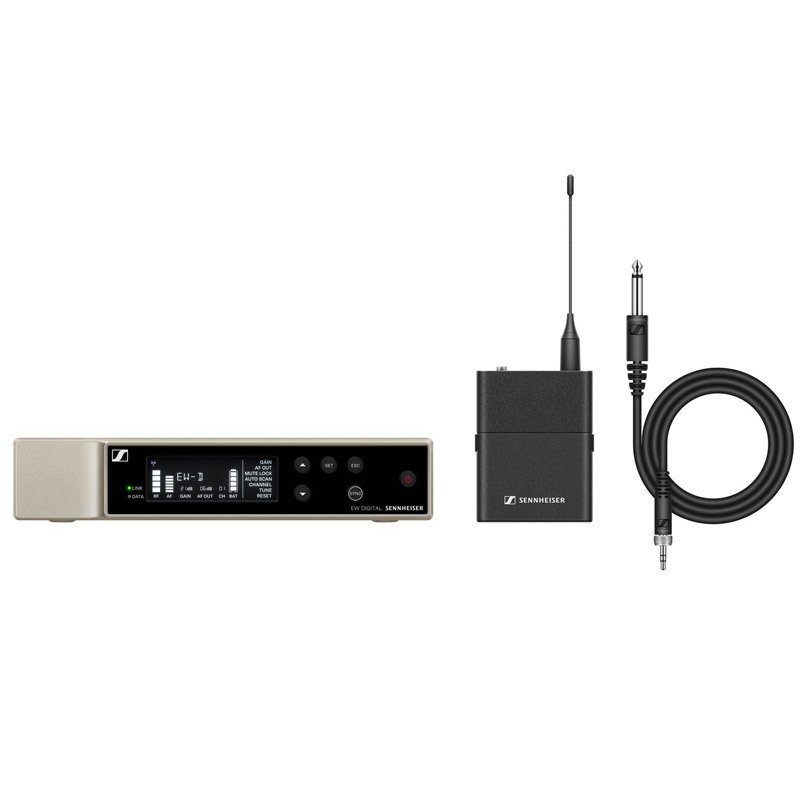

Ci1 Instrument Set

Includes:

• EW-D EM receiver

• EW-D SK bodypack transmitter

• CI 1 instrument cable

• 2 rod antennas

Frequency Variants

There are different variants covering different frequency ranges. S1-7 corresponds with the UK shared channel 38 license but other ranges may be more appropriate for fixed site licencing or use in other parts of the world.

  • ( Y1-3) 1785.2 – 1799.8 MHz
  • (U1/5) 823.2 – 831.8 MHz & 863.2 – 864.8 MHz
  • (S4-7) 630 – 662 MHz
  • (S1-7) 606.2 – 662 MHz
  • (R4-9) 552 – 607.8 MHz
  • (R1-6) 520 – 576 MHz
  • (Q1-6) 470.2 – 526 MHz
