LIVEMIX CS-DUO
Dual Mix Personal Mixer
CSDUO
Price excludes VAT
Product lists can be submitted to HHB for a packaged quotation

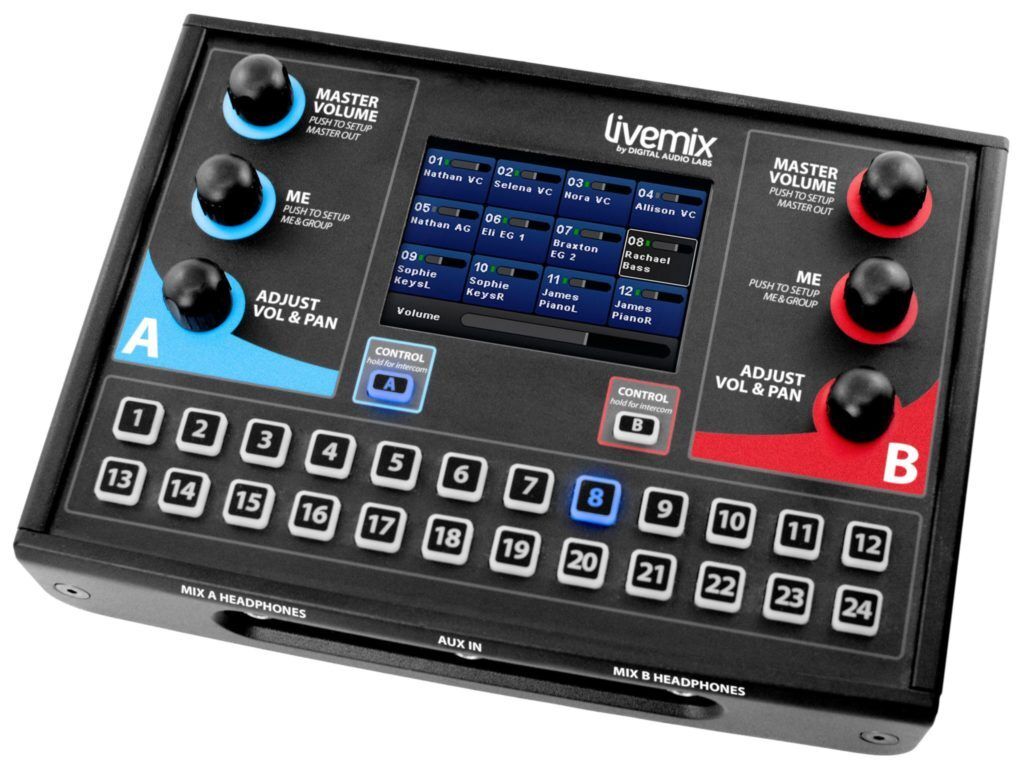

The Livemix CS-DUO is the most feature rich personal mixer on the market. The LCD touchscreen with custom naming makes creating a mix easy. Dedicated knobs provide quick access to essential features.
The Livemix CS-DUO is two personal mixers in one. With two mixes per unit, you can reduce your overall per node cost without sacrificing quality or functionality.
The CS-DUO provides 24 channels plus accessory channels, each with EQ and compression. The master output features EQ, compression and reverb. MirrorMix® remote setup and mixing, mute and solo options, channel grouping and LCD dimming make the Livemix system deep enough for professionals, but simple enough for volunteers.
Key Features
2 Mixes in One Box

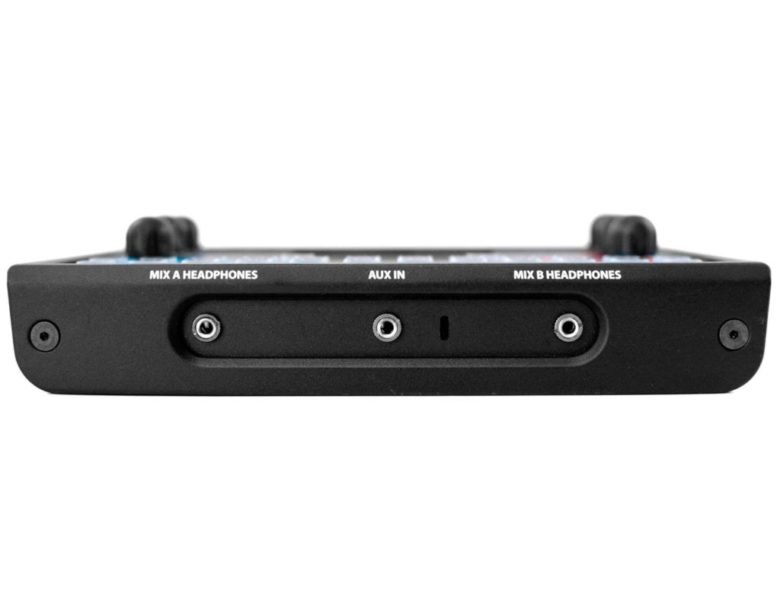

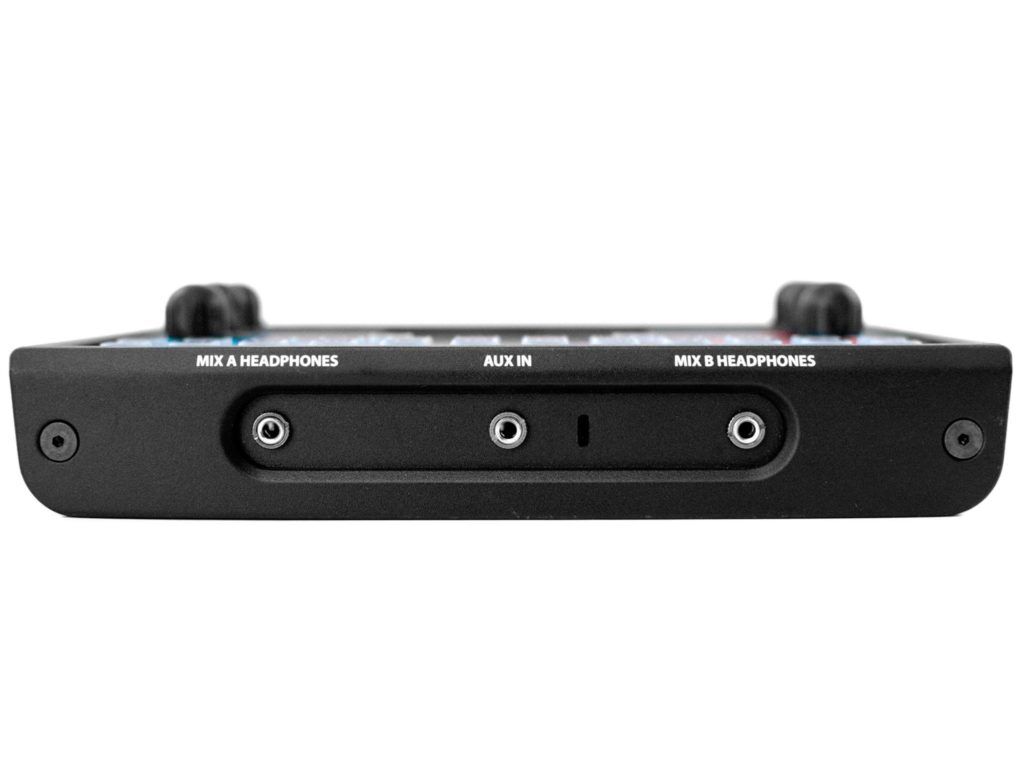

Two performers can share a personal mixer to decrease cost and clutter. Each side (A and B) has its own discrete mix and separate headphone amplifier. This isn’t just a built in splitter, this is two totally separate mixers in one unit!
24 Channels + 4 Accessory Channels
While most personal mixers give you 16 total mixable channels, Livemix offers 24 plus additional accessory channels. With Stereo Pairs and built-in Groups, it’s easy to build true stereo pairs and multi-channel groups.
Simple To Use
Making a personal mix is much easier when you can “turn up Sasha” or “turn down the bass” and not try to remember who is on what channel. With a color LCD touchscreen with custom names, scribble strips and guessing is a thing of the past. Dedicated knobs for adjustments, your own channel group and master volume make mixing simple and intuitive.
Crystal Clear Headphone Amplifier
The headphone amplifier on Livemix will drive nearly any impedance and give you incredible space and tonal separation. This makes creating a personal mix easier as channels on other systems can tend to “smear” or “get muddy”.
EQ, HPF, & Dynamics on Every Channel
Effects presets for each instrument type help make mix setup simple. You can also bypass the presets and edit each effect directly. The effects in Livemix are global so that you only have to set them up once and everyone gets an incredible sounding personal mix.
Built-in Accessory Channels
In addition to the 24 input channels, Livemix boasts 4 accessory channels. Built-in ambient mics helps musicians locate themselves on stage when using in-ear monitors. The intercom allows team communication and the auxiliary input can connect to a media player for practicing songs or for tracks. The built-in metronome helps everyone stay on time.
Remote Mixing and Intercom
MirrorMix remote mixing lets anyone get help when they need it. Any personal mixer can audition and mix any other mix. Push out a good starter mix to all mixers at once with Global MirrorMix. In MirrorMix mode, the built-in intercom is direct to the target mixer for easy confirmation and communication.
Optional Addition
MT-1
Dual Position Mount
The Livemix MT-1 is a dual position mount for Livemix personal mixers. The MT-1 attaches to the top of a microphone stand (with included brass locking nut). Additionally, use the built-in clamp to secure it to a microphone or music stand. The clamp fits pole diameters between ⅜” to 1¼”. The MT-1 connects to the CS-SOLO or CS-DUO personal mixer with attached thumbscrews; no tools necessary. When mounted in the pole position, the MT-1 features cable pass-throughs for clean cable management.
