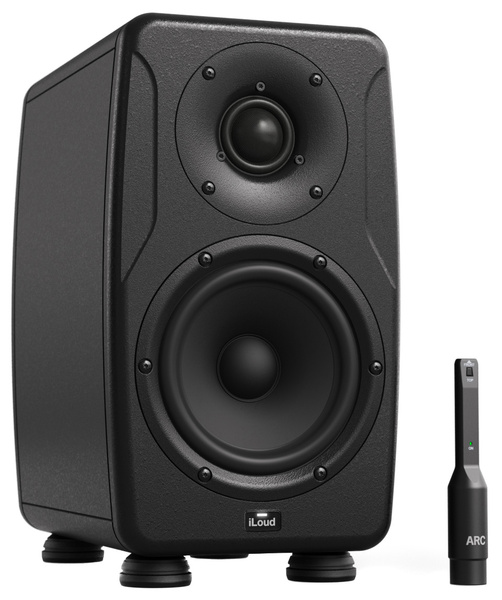

IK MULTIMEDIA iLoud Precision 5

IK MULTIMEDIA iLoud Precision 5

Active 2-Way Monitor

MON-PREMKII-500-IN

Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List



The perfect translation

The iLoud Precision series ensures your mixes sound exactly as you intend, faster and easier than ever. You’ll hear every detail of every mix with exceptional clarity and remove the guesswork entirely to work faster, better and with less ear fatigue. Thanks to IK’s exclusive combination of analog design and advanced DSP, you can enjoy world-class sound and performance in any studio setting.

The perfect mix translates every emotion and detail of each song perfectly outside the studio. iLoud Precision offers a stunning ultra-flat frequency response within +/- 1 dB accuracy from 45 Hz to 30 kHz. You’ll instantly zoom in on which instruments and frequencies need attention, to create the perfect balance faster than ever.

With bass extension down to 36 Hz at only -4 dB, iLoud Precision delivers deep, powerful yet always balanced bass. With ARC enabled, in many rooms iLoud Precision can reach as low as 30 Hz, for full-range monitoring in every genre. And an adjustable bass roll-off lets Precisions integrate with a sub without the need of an external crossover to degrade sonic performance.

Beyond balance and range, a perfect monitor needs to recreate every detail of the original recording. iLoud Precision leverages advanced 96 kHz internal DSP, digital crossovers and custom-designed audiophile amplifiers to deliver true linear phase response above 150 Hz. The result is stunningly precise stereo imaging and transients, and true-to-life clarity so you can have full faith in your every sonic decision.

Reaching nearly the theoretical ideal performance of time coherence, or the precise time alignment between all frequencies, iLoud Precision offers incredibly transient response without sacrificing frequency balance. This eliminates the ear fatigue that can develop over longer listening sessions, as well as improves the “readability” of the program and therefore translation.

Any monitor is only as good as the room it’s in. To avoid room acoustics coloring your mixing decisions, each iLoud Precision offers built-in acoustic self-calibration based on the acclaimed ARC™ System technology. Just connect the included MEMS measurement microphone and in a few seconds, the iLoud Precisions will tune themselves to any environment, taking your room out of the mix for good.

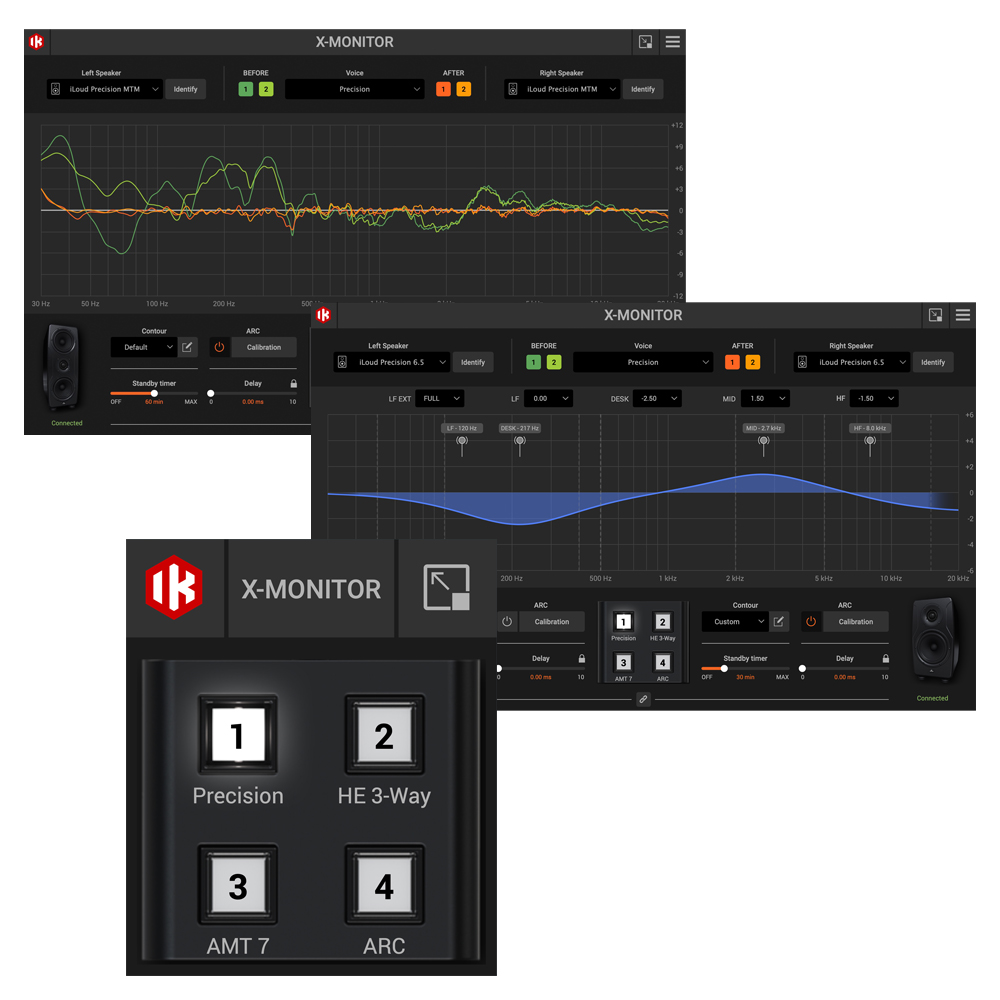

iLoud Precision series introduces X-MONITOR, a newly developed advanced control application that assists ARC calibration, enables extended acoustic and voicing control to fine-tune iLoud Precision to your taste, plus convenient remote access to the Precision’s back panel controls. The software is plug-n-play via a simple USB connection with no special setup needed.

X-MONITOR also allows iLoud Precision to emulate the frequency and phase response of many iconic studio monitors, as well as popular hi-fi speakers and mobile devices, with breathtakingly true-to-life results. With over 20 profiles included, a single pair of iLoud Precisions with X-MONITOR lets you test your mix on different reference systems quickly, without ever having to head to your car!



Key Features

Advanced electro-acoustic design

  • Audiophile, custom-designed Class-D power amplifiers
  • High-end A/D and D/A conversion
  • Ultralight coated paper membrane mid-woofers
  • Low distortion, low resonance chambered 1.5” textile dome tweeter
  • Low resonance, high damping MDF enclosure
  • Precision damped front baffle to minimize diffractions and resonances
  • Coherent and controlled dispersion for optimal room-interfacing

State-of-the-art DSP/software

  • Total digital system control with 96 kHz internal processing
  • Built-in room calibration with included microphone
  • X-MONITOR technology emulates various reference systems, including frequency and phase responses
  • Wired remote (optional) to switch among X-MONITOR profiles
  • LF extension, LF, HF levels, and Desktop acoustic space controls

Stunning audio performance

  • Flat +/- 1 dB frequency response
  • Linear phase response from 150 Hz up and minimal phase rotation below 150 Hz
  • Time coherent across the audio spectrum
  • Best-in-class maximum SPL

Specifications

Woofer 5″ ultralight coated paper mid-woofer
Tweeter 1.5″ high output, low distortion chambered textile dome tweeter
Amplifiers Audiophile, custom-designed Class-D power amplifiers
Total Power 135 W total RMS power
DSP Control Complete DSP controlled system, 96 kHz sampling rate
Frequency Response 46 Hz to 30 kHz frequency response +/- 1 dB
Low Frequency Extension 39 Hz @ -4 dB
Phase Response Coherent, 0/+20° max from 150 Hz up
Phase Rotation at 100Hz 50° max
Directivity (Vertical – all voices) +/-50°
Directivity (Vertical – Wide Dispersion mode) +70°/-50°
Continuous SPL 101.6 dB
Peak SPL (Free Field) 113.3 dB
Peak SPL (Half Space) 115.3 dB
Crossover Frequency 2.1 kHz
Crossover Type 8th order, linear phase
LF Power Amp 110 W
HF Power Amp 25 W
Power Amp Distortion 0.005%
Total Latency 2.52 ms
Adjustable Delay 0-10 ms
High Pass Filter Off, 35, 50, 65, 80 Hz
LF Contour -10 to +6 dB
Desk Contour -10 to 0 dB
Mid Contour -4 to +4 dB
HF Contour -6 to +6 dB
Sensitivity -14 dBu / 86 dBSPL
Input Gain Trim +/-5 dB
Unit Consistency +/-0.5 dB
Operating Temperature 0 to 35 °C
Design High performance vented design
Built-in Features ARC room calibration, X-MONITOR technology
Remote Control X-MONITOR voice selection and measurement process control
Software X-MONITOR macOS and Windows control software
Handcrafted Italy
Dimensions 30.5 cm x 17.7 cm x 24.8 cm
Weight 6.1 kg
Package Includes
  • 1 x iLoud Precision 5 monitor
  • Power cord
  • ARC Microphone
  • ARC Microphone clamp
  • USB-B to USB-A 2.5 m cable
  • 1 x kit of 4 iLoud Isolation Pods
