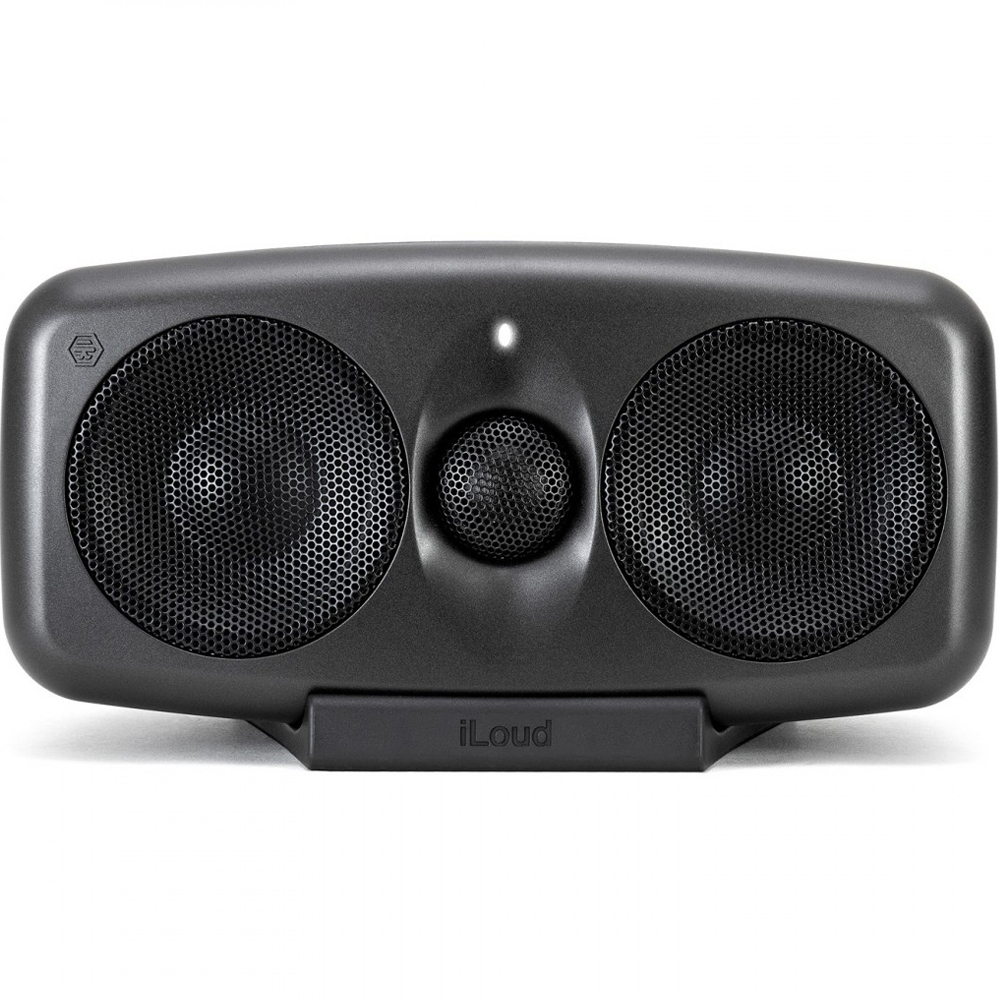

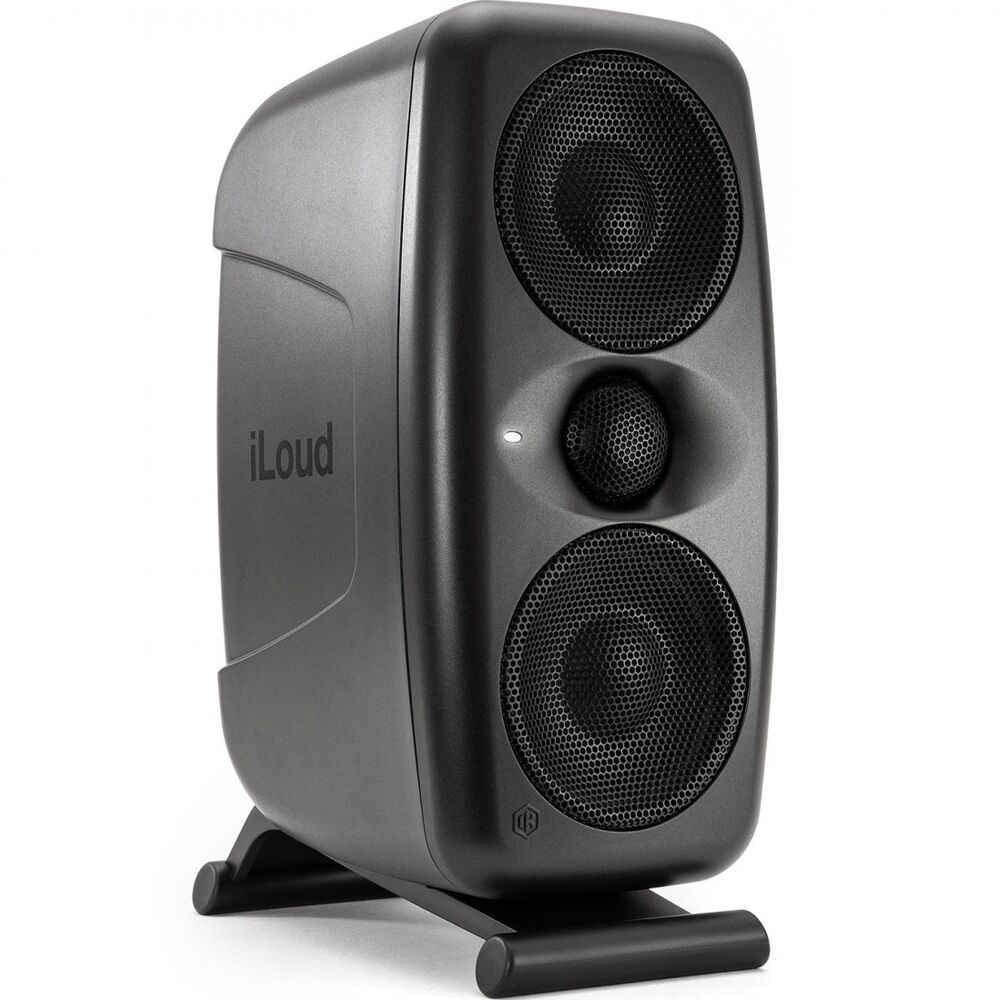

IK MULTIMEDIA iLoud MTM MKII
IK MULTIMEDIA iLoud MTM MKII
Active 2-Way Monitor
IP-ILOUD-MTMMKII-IN
Price excludes VAT
Product lists can be submitted to HHB for a packaged quotation
iLoud Studio Monitoring System
iLoud MTM MKII offers sonic perfection and volume levels previously unavailable in this class of reference monitors. Maintaining its iconic form, MTM MKII sports more efficient drivers and twice the processing power under the hood to turn any space into the ideal mixing and mastering setup.
Enjoy clear, neutral sound with the deep, controlled low end you’d expect from a speaker twice the size and linear phase response that rivals speakers twice the price. Its MTM design and precise time alignment make hours of fatigue-free listening possible while minimizing acoustic interactions, which is ideal for desktop use.

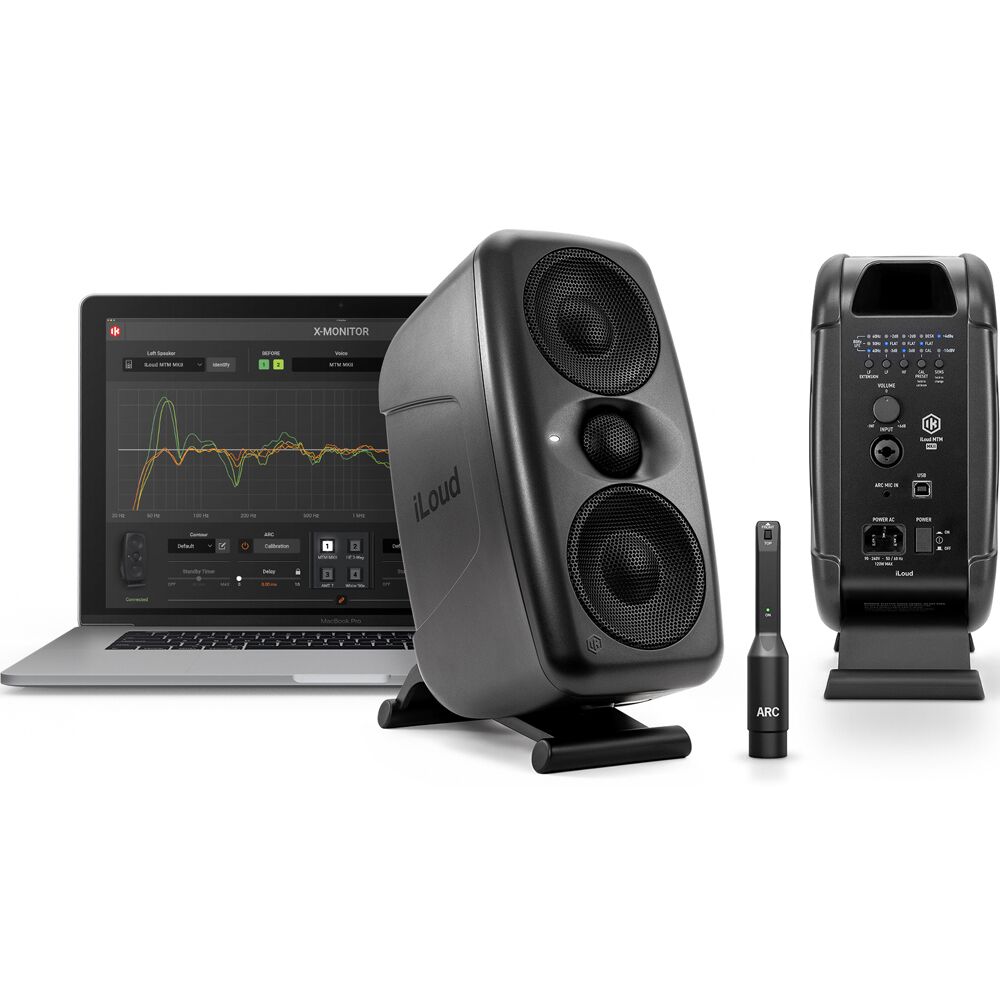

With advanced ARC auto-calibration, MTM MKII guarantees improved acoustic performance in any space in seconds. Connected to a computer, award-winning X-MONITOR software adds deep customization and breathtaking emulations of 20+ top studio monitors and other playback systems to A/B your mixes instantly for the perfect translation.
MTM MKII is like having an entire suite of precision-tuned monitoring tools.
Key Features
- Incredible volume and ultra-flat response
- iLoud physics-defying bass down to 36 Hz
- Improved linear phase offers even more clarity
- Perfectly time-aligned to reduce ear fatigue
- MTM design minimizes troublesome reflections
- Built-in ARC self-calibration adjusts to any space
- Deeply customizable with X-MONITOR software
- Tilting base plus threaded insert for mounting
Specifications
| Type | 2-Way/3-Speakers Bi-Amped, Digitally Controlled Studio Monitor |
| LF Drivers | 2 x 3.5″ Composite Cellulose Fiber, Custom-Made Mid-Woofers |
| HF Drivers | 1″ Low Distortion, Back Chambered Silk Dome Tweeter |
| Acoustic Design | DSP Tuned Bass Reflex |
| Number Of Amps Per Speaker | 2 |
| Amplifiers Type | High Efficiency Class-D |
| Total Power | 100 W RMS |
| LF Power | 70 W RMS |
| HF Power | 30 W RMS |
| Crossover Type | Digital, Linear Phase |
| Crossover Frequency | 2.8 kHz |
| Frequency Response | 48 Hz To 28 kHz ± 2 dB, 36 Hz To 32 kHz @ -10 dB |
| Phase Response | System Remains Coherent Within ±15° From 200 Hz To 20 kHz |
| Sensitivity At +4 dBu | -6 dBu Signal Generates A 94 dB SPL @ 1 m |
| Sensitivity At -10 dBV | -17 dBu Signal Generates A 94 dB SPL @ 1 m |
| Continuous, Long Term SPL Free Field, 1 m Distance, One Speaker, ANSI-2034 Weighted Pink Noise | 97 dB |
| Peak SPL Free Field, 1 m Distance, One Speaker, ANSI-2034 Weighted Pink Noise | 110.5 dB |
| Peak SPL, Half Space, 1 m Distance, One Speaker, ANSI-2034 Weighted Pink Noise | 112.5 dB |
| Placement Setup | Manual Switches For LF Extension, LF Trim, HF Trim, Desk Position |
| LF Extension Switch | Sets -3 dB Point Of The Frequency Response At 40, 50, 60 Or 80 Hz (LFE) |
| LF Switch | Low Shelf, +2 dB Or -3 dB From 100 Hz Down |
| HF Switch | High Shelf, +2 dB Or -3 dB From 8 kHz Up |
| Desk Switch | -4 dB At 160 Hz And +1 dB At 1.8 kHz |
| Calibration | Fully Automatic And Built-In Digital Calibration |
| Full DSP Control | |
| Total Latency (TOF) | 2.44 ms |

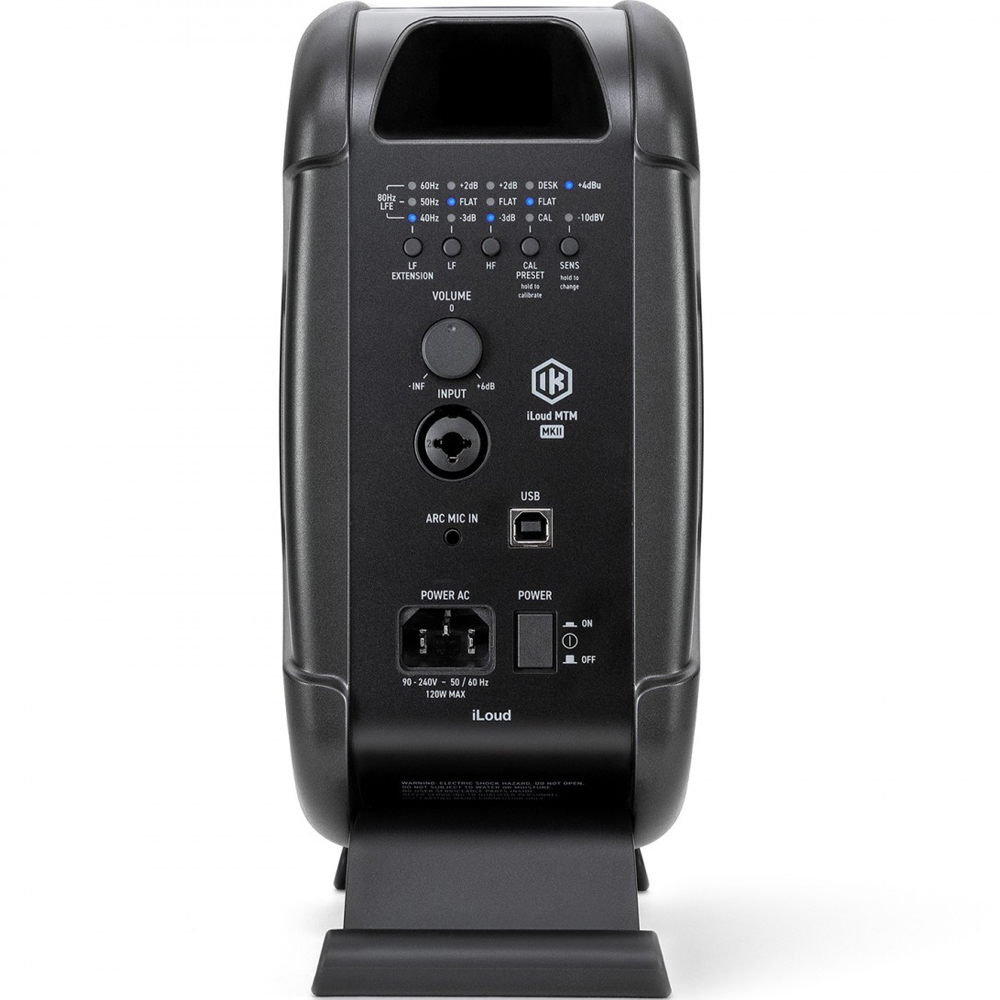

| Connectors | 1x Combo XLR-1/4″ TRS Balanced Input; 1/8″ TS ARC Microphone Input, 1 x USB Type-B, AC Power Socket |
| Power Requirement | 90 To 240 V AC, Auto-Ranging, 50 Or 60 Hz, 120 W Max Power Consumption |
| Dimensions | Size: 264 mm/10.39″ x 160 mm/6.3″ x 130 mm/5.12″ |
| Weight (Per Speaker) | 2.5 kg/5.5 lbs (Speaker + Foot) |
