BRAINSTORM SR-112

Timecode distripalyzer.

SR112

£1,739.00 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List



A Timecode Reader, Distributor, Reshaper, Analyzer and Optional Generator

The SR-112 reshapes and distributes timecode through its 12 outputs, sending it over long lines with no signal degradation. It analyzes the source for quick diagnostic and generates or repairs timecode, locked to video if required.

The industry standard SR-112 is designed to distribute time code through its 12 buffered outputs while analysing it. The reshaper sends clean time code, even over long cables, making it ideal for live environments.

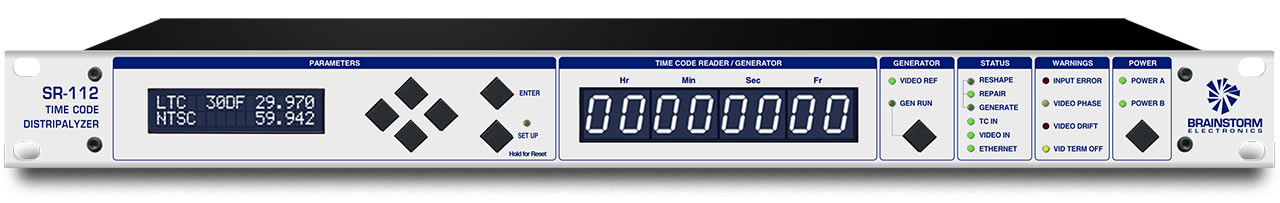

The front panel includes a large 8 digit reader and an LCD display showing the units status and reporting errors as they are detected. All modern SMPTE and EBU SD/HD rates are supported.

With the option TCG, the SR-112 can also generate new time code or repair exisitng one.

The SP/SR112 hardware serial port option allows for the TCG Time Code Generator to be remote controlled with serial commands from a computer. The SP/SR112 includes a serial port adapter and the complete protocol documentation.

Features

1 x 12 DISTRIBUTOR / RESHAPER

  • Designed to send clean time code over long cables
  • Eliminates level fluctuations
  • Buffered outputs; balanced or unbalanced

TIME CODE ANALYZER

  • Identifies time code format, reports errors (drop outs…)
  • Monitors video phase
  • Generates a comprehensive report via Ethernet

TIME CODE GENERATOR (option)

  • Generates new time code with or without video reference
  • Repairs faulty time code (jam sync)
