AXELTECH Oxygen 1000

AXELTECH Oxygen 1000

Digital Broadcast Console

OXYGEN1000

Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List



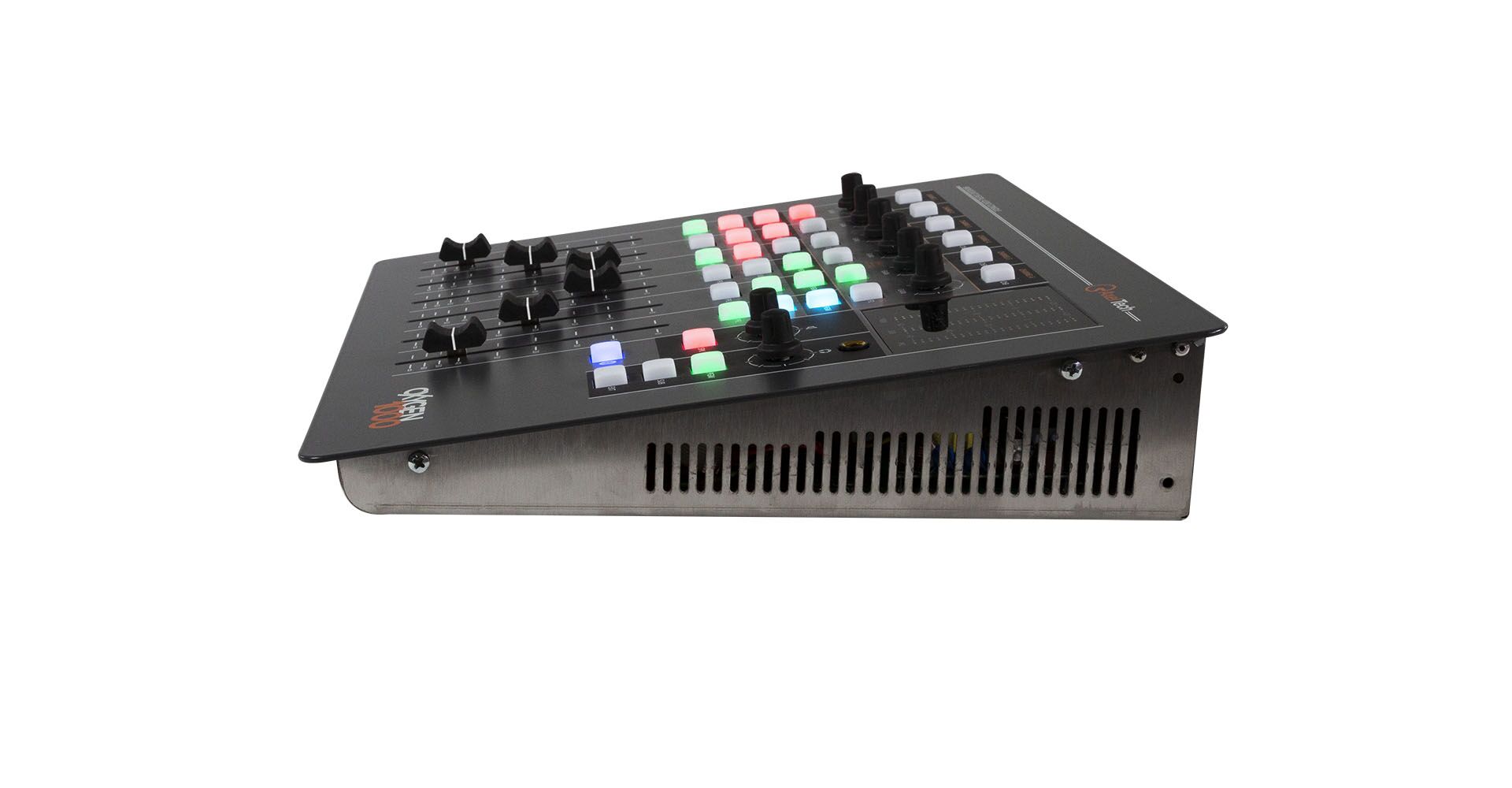

Oxygen 1000 is a fully Digital Broadcast Console designed for On Air and Production in any Radio Station: a compact 6 faders unit, 3 microphone inputs with Automix, with a powerful internal audio routing and a wide range of controls and I/O in a rugged and classy steel chassis.
Oxygen 1000 DSP based audio processing delivers high-end quality and guarantees latest features and flexibility.

Reliable and easy to use as an analogue mixing console Oxygen 1000 offers top class features: Low Latency, Users Preset, Smart Keys, EQ, Compressors, Telephone Hybrid, HDMI Output, Analogue and Digital I/O, USB, BT, Dante™ AoIP, Telco, Presenter Talk Box.
Oxygen 1000 can be remotely controlled through the Oxygen Remoter tool.

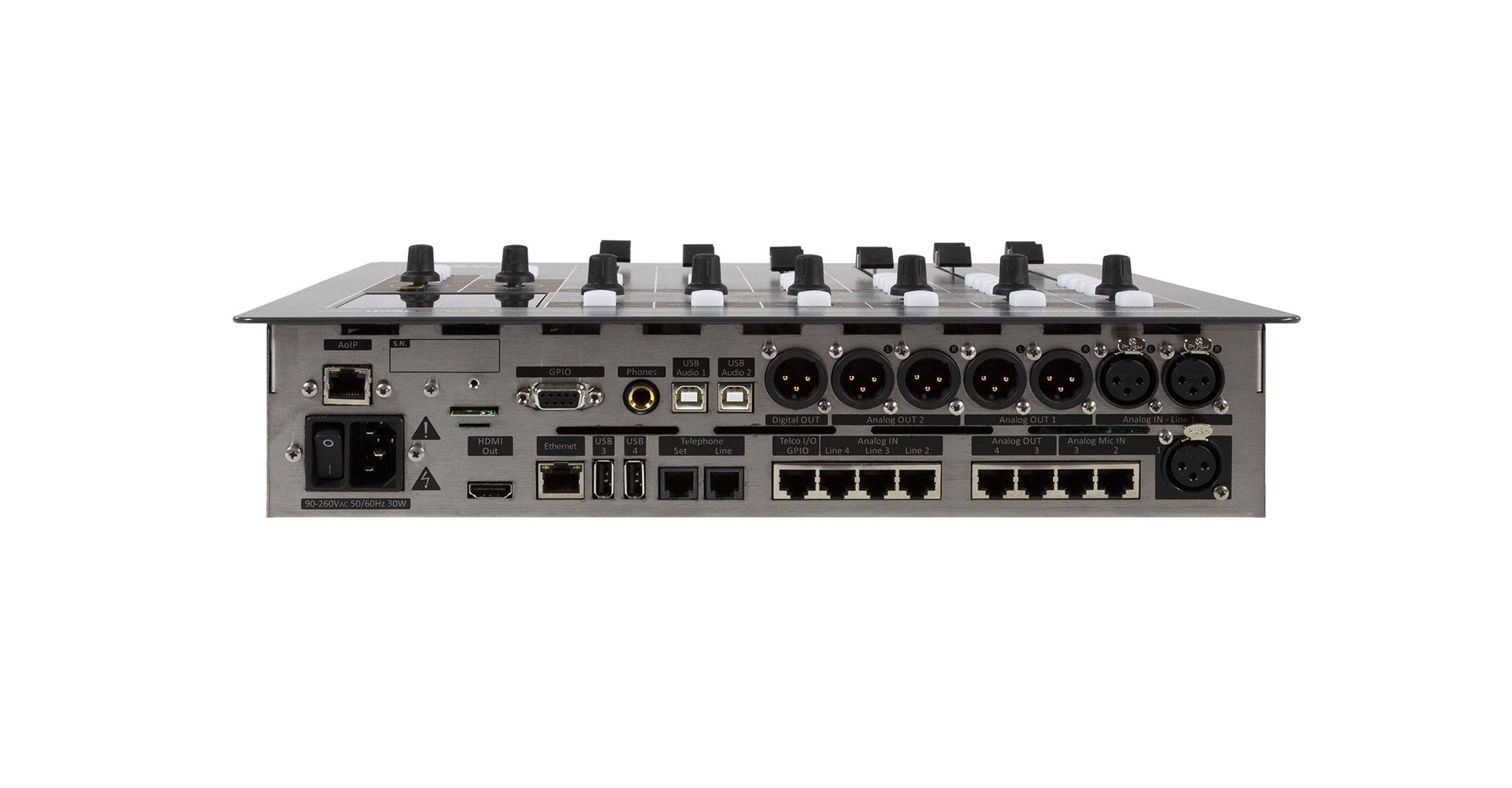

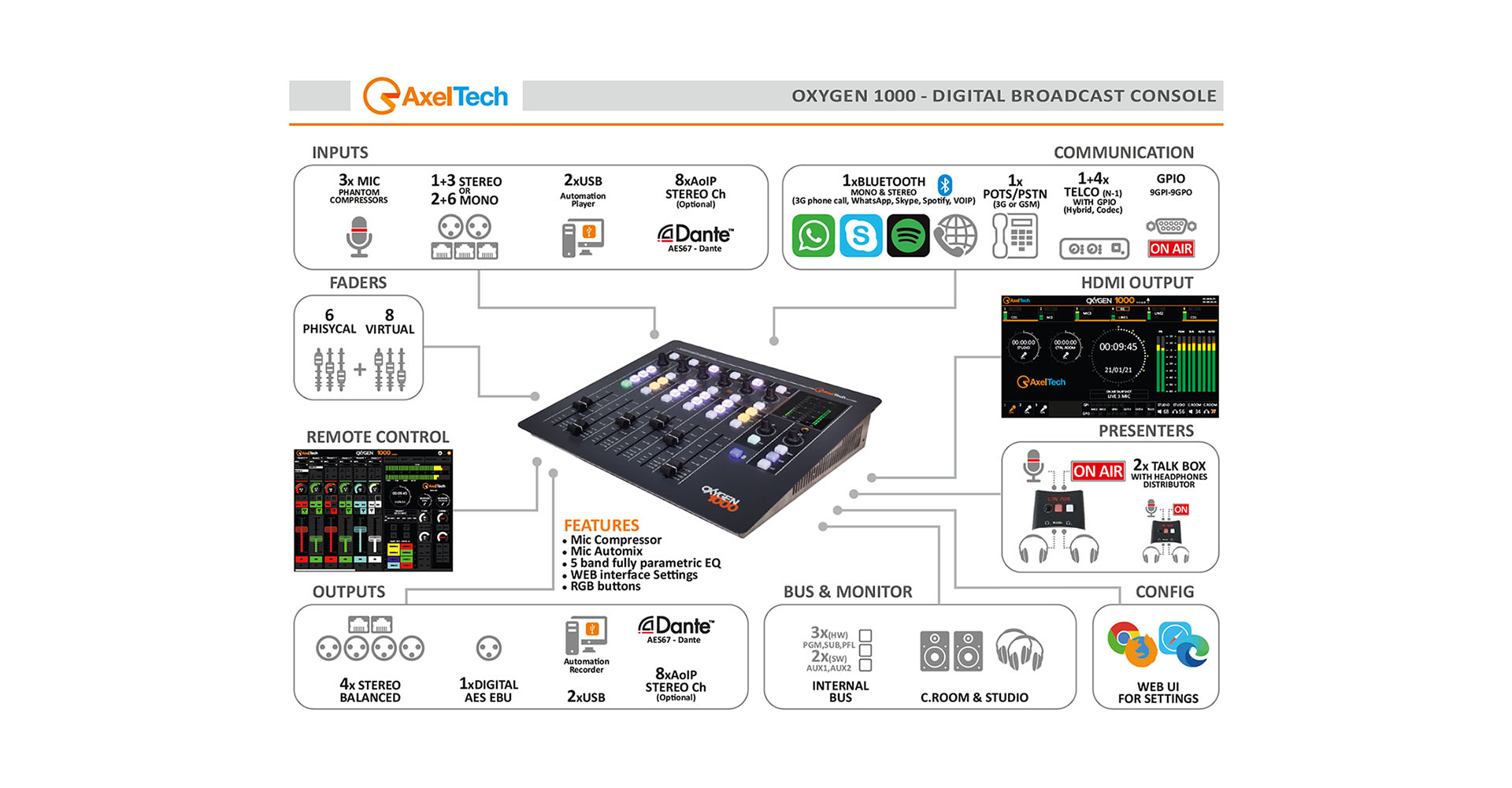

Input & Output

  • 3 microphone inputs with Automix
  • 4 stereo analogue inputs
  • 4 stereo analogue outputs
  • 1 built-in telephone hybrid
  • 1+4 telco interface with GPIO
  • BT audio interface
  • 1 digital Out (AES/EBU)
  • 2 USB audio interfaces (disabled with Dante™ option installed)
  • 8 stereo inputs + 8 stereo outputs via Dante™ (optional)

Key Features

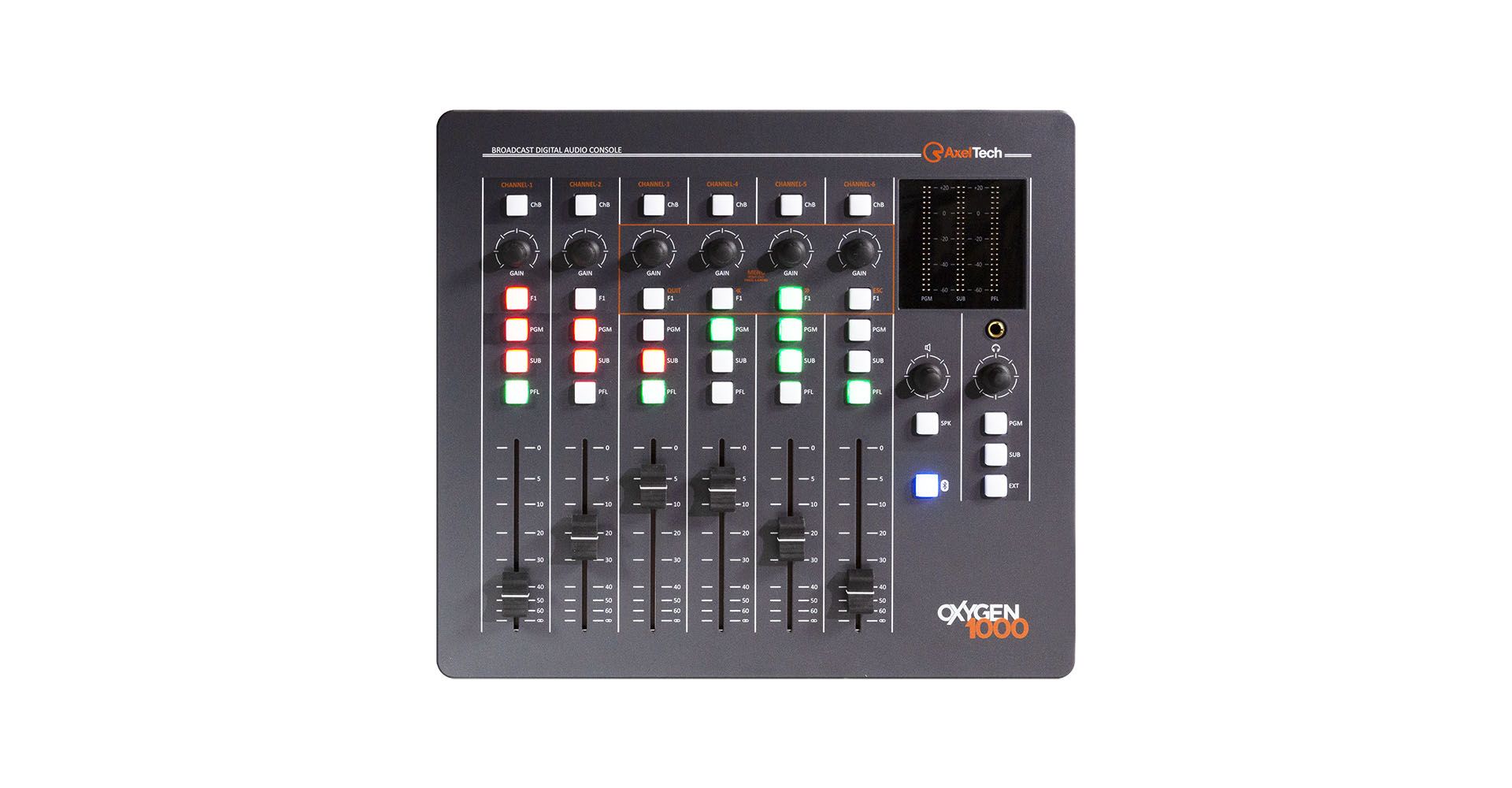

  • Fully Digital Broadcast Console for Radio Broadcasting with 6 faders
  • A/B Fast source switch buttons for each fader
  • 4+1 busses (PGM, SUB, Aux1, Aux2, PFL)
  • Near 0 latency (< 0,7 ms I/O)
  • Complete Remote Control by means of an application replicating the surface
  • Remote configuration and maintenance via Web Interface
  • User-definable Presets & Snapshot
  • 5 bands fully parametric Equalizer on every input
  • Dynamic Processor with expander and compressor section on each microphone inputs
  • Advanced and configurable Monitor Facilities for Control Room and Studio
  • Customizable RGB colored buttons
  • High Resolution (120 leds) meter bars for outputs
  • HDMI Out for console status display
  • 2 Timers (Ctrl-Room and Studio microphones timers on HDMI Monitor)
  • TalkBox for guest and presenter (optional)

Versions

  • Oxygen 1000
  • Oxygen 1000 Dante™

Options

  • Talk Box
  • Dante™ I/O Board
  • RJ45 adapters for:
    o Mic with GPIO
    o Line In
    o Line Out with GPIO
    o Telco with GPIO

The Falcon X Series

Different users have different needs: that’s the reason why AxelTech features a whole line up of processors with different models suitable for different workflows. Falcon X7 is the full option unit, Falcon X6 embeds the same features only except the controls on the front panel, perfect to be remotely installed and managed through the WEB interface. Falcon X5 is entry level unit with the same processing power of the Falcon X7 and a simplified I/O and changeover sections.

Dante™ AUDIO-OVER-IP CONNECTIVITY

Dante™ option (also supporting AES67 and SMPTE ST 2110-30 transport protocols) provides an Ethernet connection for 2 Stereo Input and 2 Stereo Output, with independent and dedicated Level Control and Sample Rate Conversion.


RDS Radio Data System Encoder

Falcon RDS option performs a full digital Static and Dynamic RDS encoding in compliance with the latest standards: UECP EBU SPB490 v7.05, Cenelec (Europe) and NRSC (USA).

It provides 8 Data Sets with a wide range of static services, including Radio Text.

The dynamic RDS features allows to manage many kinds of services: PS, RT, CT, EON, RT+, PTY, PTYN.

With the addition of the RDS encoder, the processor makes the listening experience even more engaging by also transmitting emergency information, such as weather or traffic alerts, helping to keep listeners informed and safe.

Add the RDS encoder to the Falcon is easy and convenient and does not require additional hardware installation. Furthermore, the RDS encoder can be controlled and configured through the web user interface, making managing the services/data transmitted even easier.


ADVANCED CHANGEOVER

The Advanced Audio Changeover/Silence Detector can switch between any available input source: Analog, Digital, MPX, FM, IP, Dante™.

Analog Balanced Microphone Inputs
Connector RJ45 & XLR Balanced – EMI Suppressed
Input Impedance 2,4 KΩ
Nominal Input Level (sensitivity) -9/-66 dBu
Max Input Level (clipping point) +9 dBu
A/D conversion 24 bit / 48 Khz
Signal To Noise Ratio (referred to peak level) >90 dB
THD+N <0,01%
Analog Gain Adjustable +0 ÷ +57 dB (3dB step)
Phantom Power +48V





Analog Balanced Stereo Inputs
Connector XLR & RJ45 Balanced – EMI Suppressed
Input Impedance 10 KΩ
Nominal Input Level (sensitivity) 0 dBu
Max Input Level (clipping point) +18 dBu
A/D conversion 24 bit / 48 Khz
Frequency response +/-0,5 dB from 20 Hz to 20 kHz
Signal To Noise Ratio (referred to peak level) >100 dB
Stereo Separation (referred to peak level) >90 dB
THD+N <0,002 %





Analog Balanced Telco Input
Connector RJ45 Balanced – EMI Suppressed
Input Impedance 10 KΩ
Nominal Input Level (sensitivity) 0 dBu
Max Input Level (clipping point) +18 dBu
A/D conversion 24 bit / 48 Khz
Signal To Noise Ratio (referred to peak level) >100 dB
THD+N <0,002%





PSTN Interface
Connector RJ11
Transhybrid loss >20 dB





Analog Balanced Stereo Outputs
Connector RJ45 Balanced – EMI Suppressed
Output Impedance 23 Ω, nominal 600 Ω
Nominal Output Level 0 dBu
Max Output Level (clipping point) +18 dBu
D/A conversion 24 bit / 48 Khz
Signal To Noise Ratio (referred to peak level) >100 dB
Stereo Separation (referred to peak level) >90 dB
THD+N <0,002 %





USB Audio Digital I/O
Connector USB Type B – EMI Suppressed
Playback And Recording Sample Rate SRC 44.1-48 KHz
Resolution 16 bit
Available Stereo Channels 1 Play & 1 Rec for each USB interface





Digital Output
Connector Balanced on 1 XLR – EMI Suppressed
Input Impedance 110 Ω
Standard AES3
Audio Sample Rate 48 KHz
Resolution 24 bit
Dynamic Range (Converter Values) 124 dB





Analog Balanced Telco Output
Connector RJ45 Balanced – EMI Suppressed
Output Impedance 23 Ω, nominal 600 Ω
Nominal Output Level 0 dBu
Max Output Level (clipping point) +18 dBu
D/A conversion 24 bit / 48 Khz
Signal To Noise Ratio (referred to peak level) >100 dB
THD+N <0,002 %





System
Audio Core Analog Devices ADAU1452 32bit 294 MHz fixed point DSP
Audio CODECs Cirrus CS42448 24 bit/192 kHz
System Core Allwinner A20 dual core cortex-A7 at 800MHz, 1GB RAM
LAN Connection RJ45 – 100Mbit
Nominal Delay (analog input to analog output) 0,7 ms
GPIO Inputs/Outputs 4 GPI/4 GPO on DB9; 4 GPI/2 GPO on Mic2 & Mic3 RJ45; 2 GPO on Out3 & Out4 RJ45; 1 GPI/1 GPO on Telco RJ45
Communication Port 2xUSB type-A, 2xUSB type-B , 1xLAN, 1xHDMI
Operating Temperature 0°C ÷ 40°C





PSU
Power Supply 90-260 VAC / 47-63 Hz / 30 W





Dimensions
Dimensions (W; H; D) 344mm; 80mm; 343mm
Weight < 5Kg
