AXELTECH Oxygen 2000
AXELTECH Oxygen 2000
Digital Broadcast Console
OXYGEN2000
Price excludes VAT
Product lists can be submitted to HHB for a packaged quotation

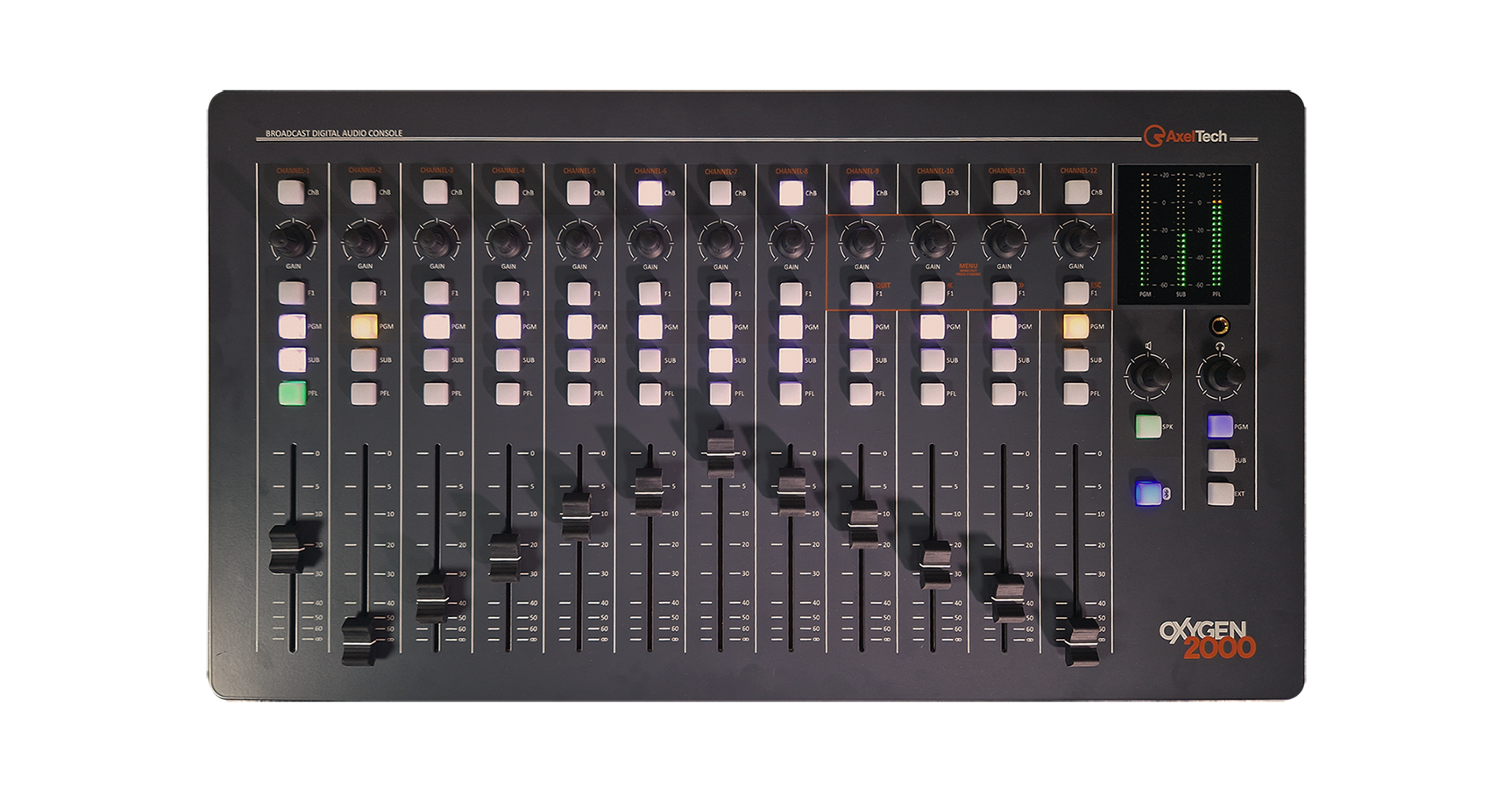

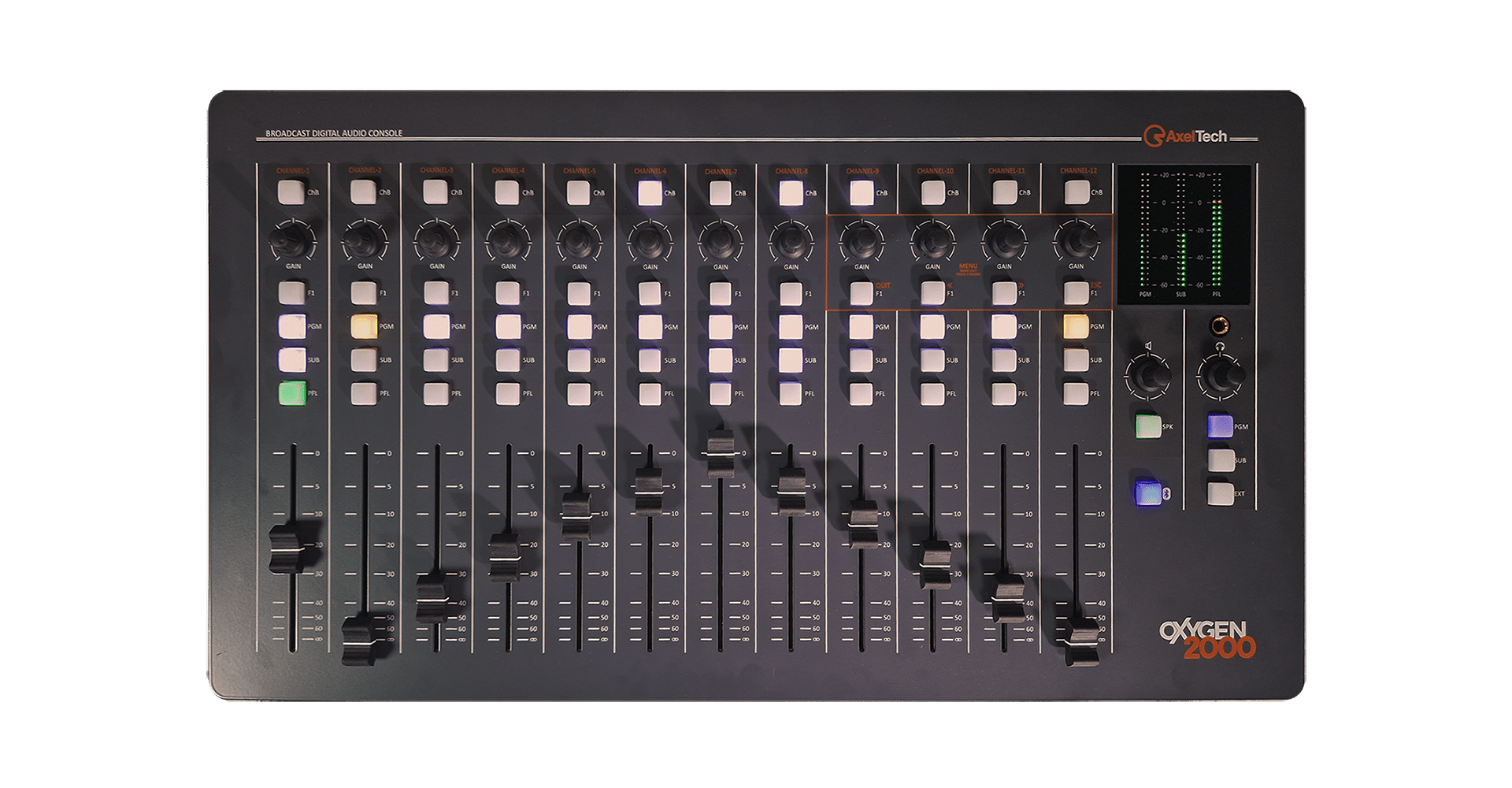

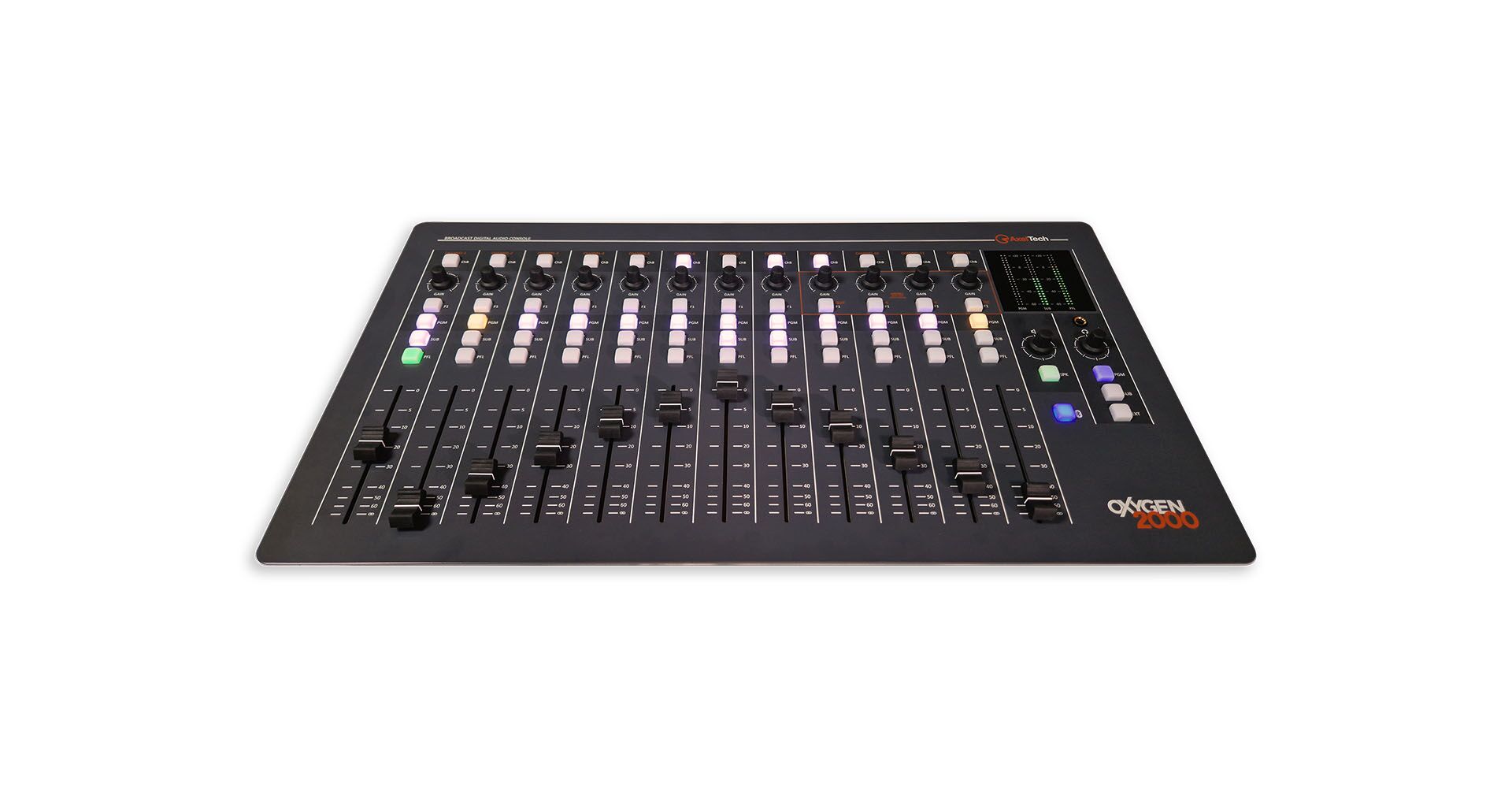

Oxygen 2000 is a fully Digital Broadcast Console designed for On Air and Production in any Radio Station: a compact 12 faders unit, 5 microphone inputs with Automix, with a powerful internal audio routing and a wide range of controls and I/O in a rugged and classy steel chassis. Oxygen 2000 DSP based audio processing delivers high-end quality and guarantees latest features and flexibility. Reliable and easy to use as an analogue mixing console Oxygen 2000 offers top class features: Low Latency, Users Preset, Smart Keys, EQ, Compressors, Telephone Hybrid, HDMI Output, Analogue and Digital I/O, USB, BT, Dante™ AoIP, Telco, Presenter Talk Box.
Oxygen 2000 can be remotely controlled through a dedicated application.

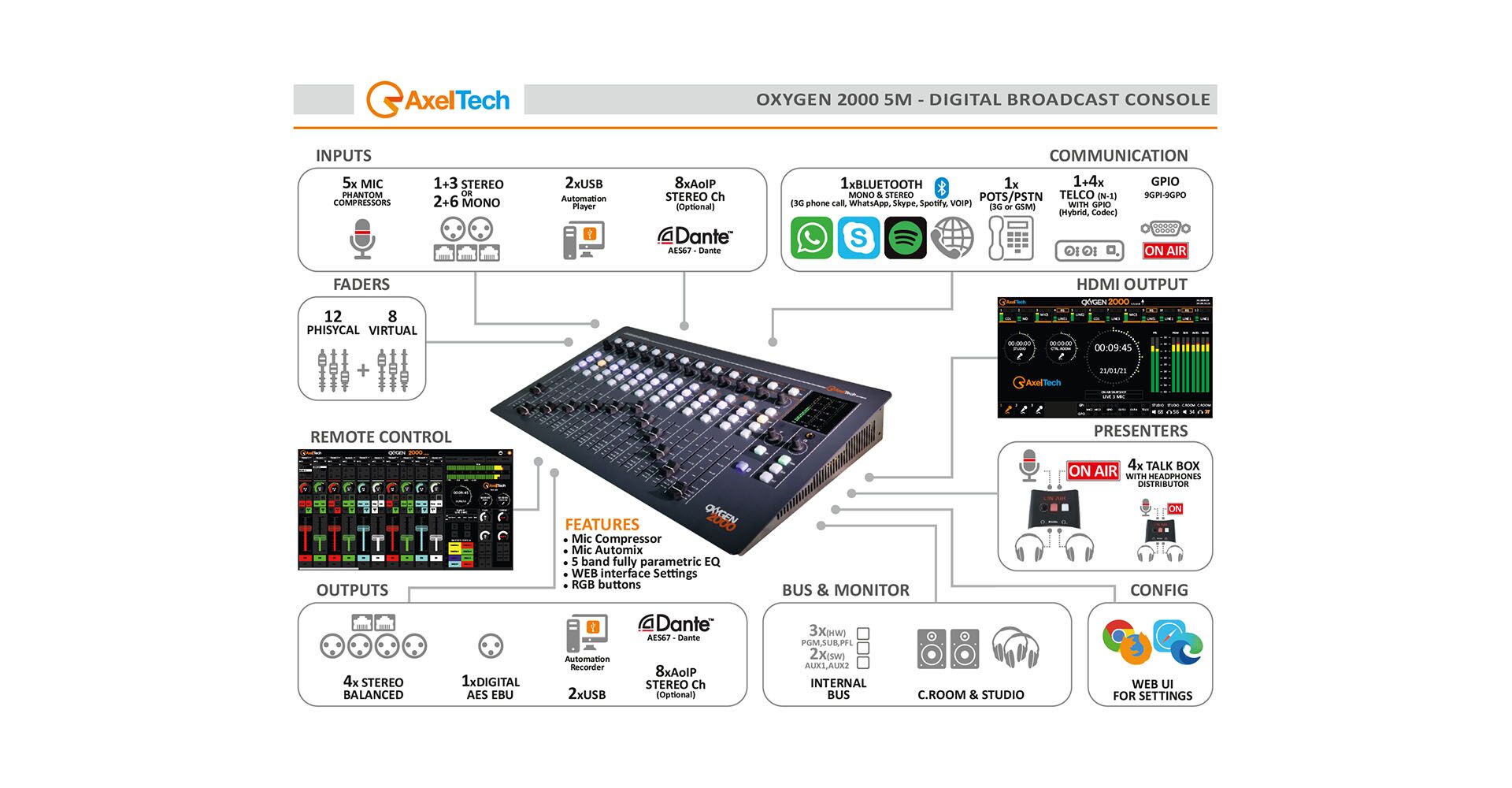

Input & Output
- 5 microphone inputs with Automix
- 3 stereo analogue inputs (4 if the console is configured for 3 Mic)
- 4 stereo analogue outputs
- 1 built-in telephone hybrid
- 1+4 telco interface with GPIO
- BT audio interface (optional)
- 1 digital Out (AES/EBU)
- 2 USB audio interfaces (disabled with Dante™ option installed)
- 8 stereo inputs + 8 stereo outputs via Dante™ (optional)
Key Features
- Fully Digital Broadcast Console for Radio Broadcasting with 12 faders
- A/B Fast source switch buttons for each fader
- 4+1 busses (PGM, SUB, Aux1, Aux2, PFL)
- Near 0 latency (< 0,7 ms I/O)
- Complete Remote Control by means of an application replicating the surface
- Remote configuration and maintenance via Web Interface
- User-definable Presets & Snapshot
- 5 bands fully parametric Equalizer on every input
- Dynamic Processor with expander and compressor section on each microphone inputs
- Advanced and configurable Monitor Facilities for Control Room and Studio
- Customizable RGB colored buttons
- High Resolution (120 leds) meter bars for outputs

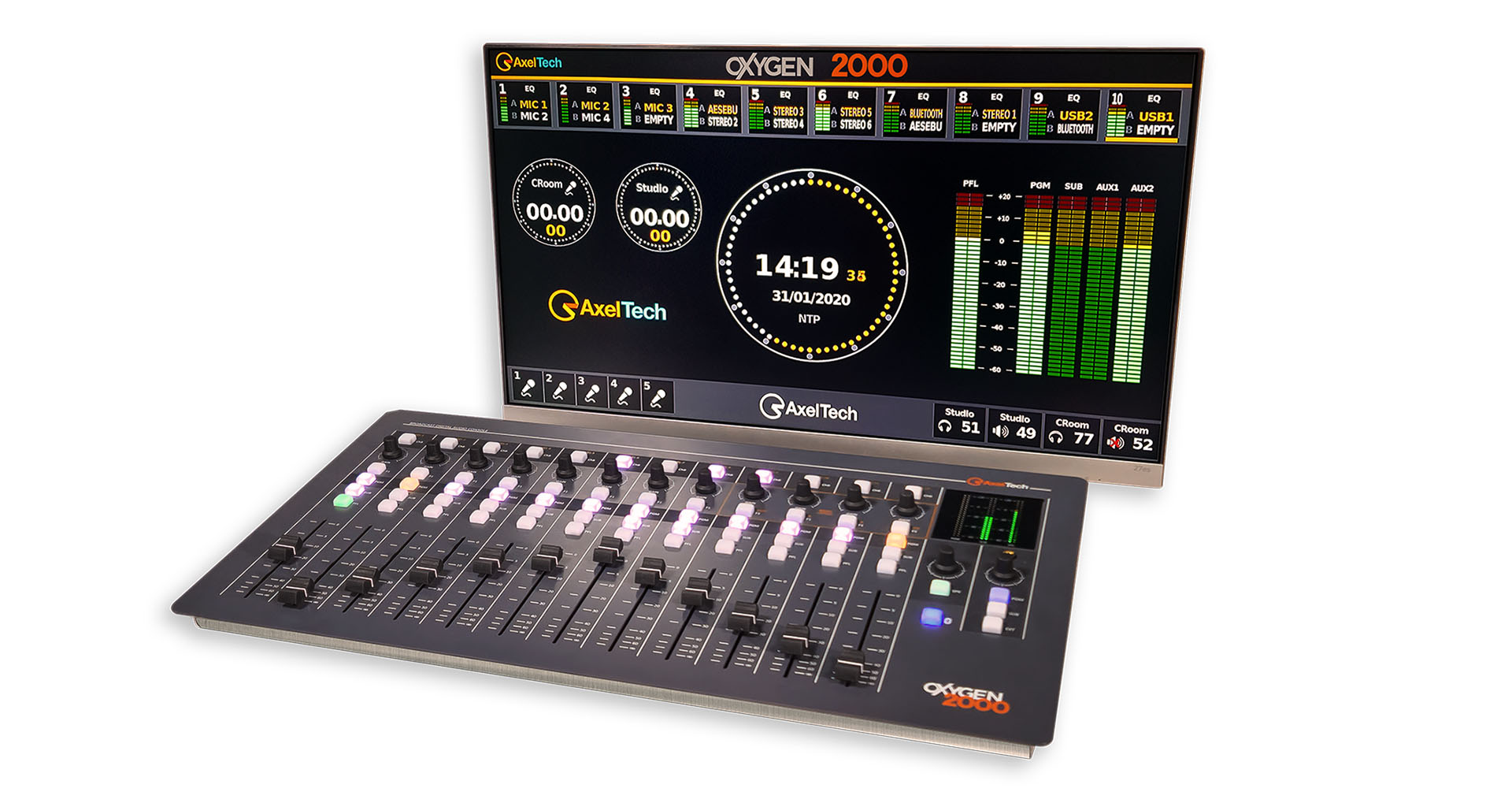

- HDMI Out for console status display
- 2 Timers (Ctrl-Room and Studio microphones timers on HDMI Monitor)
- TalkBox for guest and presenter (optional)
Versions
- Oxygen 2000
- Oxygen 2000 Dante™
Options
- Talk Box
- Dante™ I/O Board
- RJ45 adapters for:
o Mic with GPIO
o Line In
o Line Out with GPIO
o Telco with GPIO
Specifications
Analog Balanced Microphone Inputs | |
---|---|
Connector | RJ45 & XLR Balanced – EMI Suppressed |
Input Impedance | 2,4 KΩ |
Nominal Input Level (sensitivity) | -9/-66 dBu |
Max Input Level (clipping point) | +9 dBu |
A/D conversion | 24 bit / 48 Khz |
Signal To Noise Ratio (referred to peak level) | >90 dB |
THD+N | <0,01% |
Analog Gain | Adjustable +0 ÷ +57 dB (3dB step) |
Phantom Power | +48V |
Analog Balanced Stereo Inputs | |
---|---|
Connector | XLR & RJ45 Balanced – EMI Suppressed |
Input Impedance | 10 KΩ |
Nominal Input Level (sensitivity) | 0 dBu |
Max Input Level (clipping point) | +18 dBu |
A/D conversion | 24 bit / 48 Khz |
Frequency response | +/-0,5 dB from 20 Hz to 20 kHz |
Signal To Noise Ratio (referred to peak level) | >100 dB |
Stereo Separation (referred to peak level) | >90 dB |
THD+N | <0,002 % |
Analog Balanced Telco Input | |
---|---|
Connector | RJ45 Balanced – EMI Suppressed |
Input Impedance | 10 KΩ |
Nominal Input Level (sensitivity) | 0 dBu |
Max Input Level (clipping point) | +18 dBu |
A/D conversion | 24 bit / 48 Khz |
Signal To Noise Ratio (referred to peak level) | >100 dB |
THD+N | <0,002% |
PSTN Interface | |
---|---|
Connector | RJ11 |
Transhybrid loss | >20 dB |
Analog Balanced Stereo Outputs | |
---|---|
Connector | RJ45 Balanced – EMI Suppressed |
Output Impedance | 23 Ω, nominal 600 Ω |
Nominal Output Level | 0 dBu |
Max Output Level (clipping point) | +18 dBu |
D/A conversion | 24 bit / 48 Khz |
Signal To Noise Ratio (referred to peak level) | >100 dB |
Stereo Separation (referred to peak level) | >90 dB |
THD+N | <0,002 % |
USB Audio Digital I/O | |
---|---|
Connector | USB Type B – EMI Suppressed |
Playback And Recording Sample Rate | SRC 44.1-48 KHz |
Resolution | 16 bit |
Available Stereo Channels | 1 Play & 1 Rec for each USB interface |
Digital Output | |
---|---|
Connector | Balanced on 1 XLR – EMI Suppressed |
Input Impedance | 110 Ω |
Standard | AES3 |
Audio Sample Rate | 48 KHz |
Resolution | 24 bit |
Dynamic Range (Converter Values) | 124 dB |
Analog Balanced Telco Output | |
---|---|
Connector | RJ45 Balanced – EMI Suppressed |
Output Impedance | 23 Ω, nominal 600 Ω |
Nominal Output Level | 0 dBu |
Max Output Level (clipping point) | +18 dBu |
D/A conversion | 24 bit / 48 Khz |
Signal To Noise Ratio (referred to peak level) | >100 dB |
THD+N | <0,002 % |
System | |
---|---|
Audio Core | Analog Devices ADAU1452 32bit 294 MHz fixed point DSP |
Audio CODECs | Cirrus CS42448 24 bit/192 kHz |
System Core | Allwinner A20 dual core cortex-A7 at 800MHz, 1GB RAM |
LAN Connection | RJ45 – 100Mbit |
Nominal Delay (analog input to analog output) | 0,7 ms |
GPIO Inputs/Outputs | 4 GPI/4 GPO on DB9; 4 GPI/2 GPO on Mic2 & Mic3 RJ45; 2 GPO on Out3 & Out4 RJ45; 1 GPI/1 GPO on Telco RJ45 |

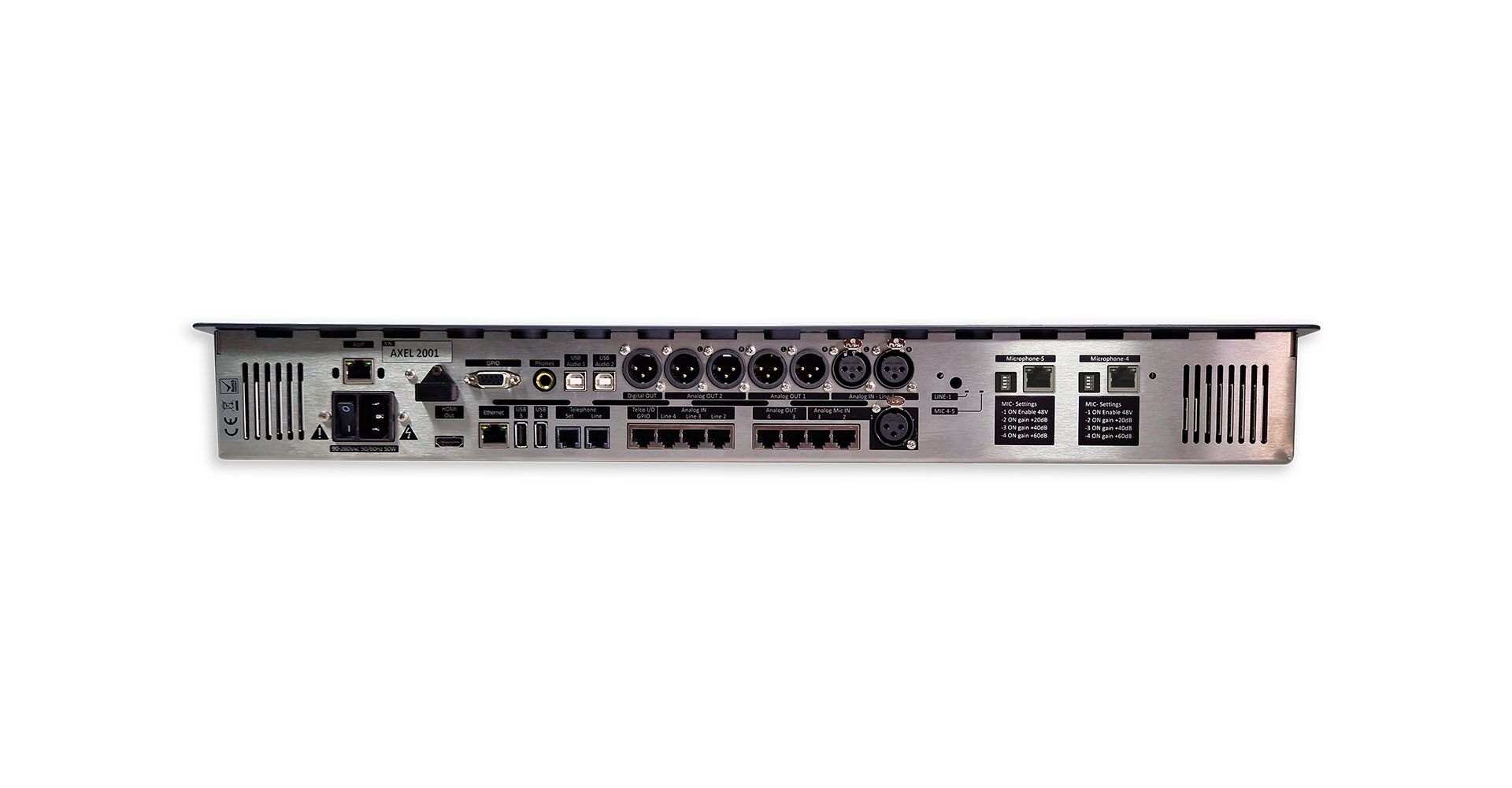

Communication Port | 2xUSB type-A, 2xUSB type-B , 1xLAN, 1xHDMI |
Operating Temperature | 0°C ÷ 40°C |
PSU | |
---|---|
Power Supply | 90-260 VAC / 47-63 Hz / 30 W |
Dimensions | |
---|---|
Dimensions (W; H; D) | 614mm; 80mm; 343mm |
Weight | 7.1 Kg |
