AXELTECH Oxygen 1000 Rack

AXELTECH Oxygen 1000 Rack

Rack Mountable Digital Broadcast Console

OXYGEN1000-R

Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List



Oxygen 1000 Rack is a fader less fully Digital Broadcast Console designed for On Air and Production in any Radio Station, with 3 microphone inputs with Automix, a powerful internal audio routing and a wide range of controls and I/O in a rugged and classy steel 2 RU chassis. Oxygen 1000 Rack is remotely controlled through a dedicated application. Oxygen 1000 Rack DSP based audio processing delivers high-end quality and guarantees latest features and flexibility. Reliable and easy to use as an analogue mixing console Oxygen 1000 Rack offers top class features: Low Latency, Users Preset, Smart Keys, EQ, Compressors, Telephone Hybrid, HDMI Output, Analogue and Digital I/O, USB, BT, Dante™ AoIP, Telco, Presenter Talk Box.

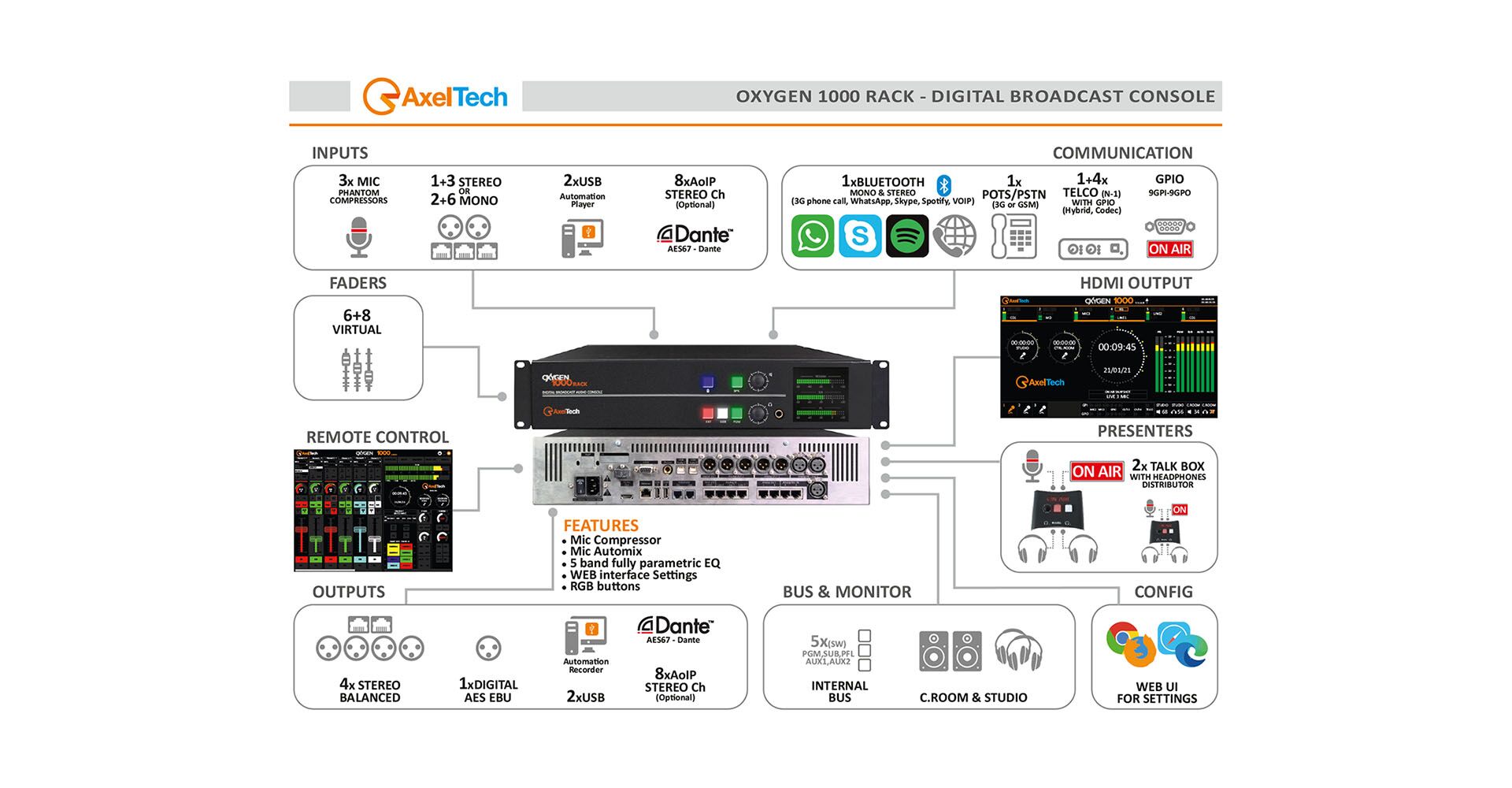

Input & Output

  • 3 microphone inputs with Automix
  • 4 stereo analogue inputs
  • 4 stereo analogue outputs
  • 1 built-in telephone hybrid
  • 1+4 telco interface with GPIO
  • BT audio interface
  • 1 digital Out (AES/EBU)
  • 2 USB audio interfaces (disabled with Dante™ option installed)
  • 8 stereo inputs + 8 stereo outputs via Dante™ (optional)

General

  • Fully Digital Broadcast Console for Radio Broadcasting
  • A/B Fast source switch buttons for each fader
  • 4+1 busses (PGM, SUB, Aux1, Aux2, PFL)
  • Near 0 latency (< 0,7 ms I/O)
  • Complete Remote Control by means of an application replicating the surface
  • Remote configuration and maintenance via Web Interface
  • User-definable Presets & Snapshot
  • 5 bands fully parametric Equalizer on every input
  • Dynamic Processor with expander and compressor section on each microphone inputs
  • Advanced and configurable Monitor Facilities for Control Room and Studio
  • Customizable RGB colored buttons
  • High Resolution (120 leds) meter bars for outputs
  • HDMI Out for console status display
  • 2 Timers (Ctrl-Room and Studio microphones timers on HDMI Monitor)
  • TalkBox for guest and presenter (optional)

Versions

  • Oxygen 1000 Rack
  • Oxygen 1000 Rack Dante™

Options

  • Talk Box
  • Dante™ I/O Board
  • RJ45 adapters for:
    o Mic with GPIO
    o Line In
    o Line Out with GPIO
    o Telco with GPIO
