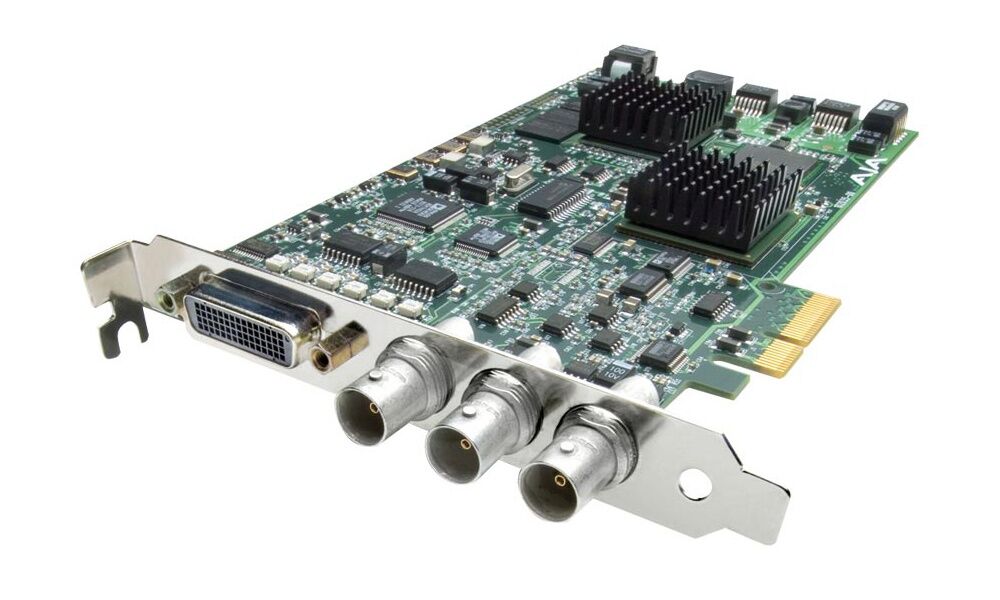

AJA KONA LHe Plus

AJA KONA LHe Plus

Affordable, flexible KONA power.

KONALHE

£1,280.00 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List



Powerful video and audio I/O with a full set of no-compromise features for video professionals.

Features
• Supports HD and SD ingest and output at frame rates up to 30p
• Real-time down-conversion
• HD-SDI I/O and Component Video I/O on supplied breakout cable
• 2-ch AES/EBU, 8-ch embedded SDI digital audio I/O on supplied breakout cable
• 2-ch balanced analogue audio I/O on supplied breakout cable
• Extend external connectivity incl Ref and RS-42 with the supplied breakout cable.
• macOS, Windows and Linux support
• Compatible with leading creative apps
• Three-year warranty

Affordable power
KONA LHe Plus offers video professionals at all levels an affordable desktop I/O solution that doesn’t compromise on quality or essential functionality. KONA LHe Plus supports both HD/SD analogue and digital I/O for video and audio, providing maximum capability, simplifying integrating analogue and digital signals into a single workflow and multiple output options to ensure you can deliver whatever formats are required.

Versatile I/O
With support for 10-bit or 8-bit uncompressed video, KONA LHE Plus features one input and two outputs which can be configured independently for HD or SD. KONA LHe Plus also includes 2-channel AES digital audio, 8-channel SDI embedded digital audio, analogue composite/S-video/SD/HD component video I/O, 2-channel balanced analogue audio I/O, Genlock input, and three BNCs which may be configured for analogue video input and output (HD or SD).

Unique analogue workflows
Because KONA LHe Plus supports 12-bit analogue component HD input and output, devices with analogue HD output, such as analogue VTRs and game consoles, can be connected for a variety of workflows.

RS-422
A 9-pin RS-422 connection available on either the included breakout cable or the optional KL-Box-LH breakout box, allows KONA LHe Plus to take control of external devices for frame accurate ingest and layoffs.

AJA hardware conversion
KONA LHe Plus features full 10-bit, broadcast-quality, motion-adaptive HD to SD down-conversion, and HD/SD 12-bit component analogue output. The down-converter allows KONA LHe Plus to connect to analogue SD devices for output. This can be used to check framing and colour for SD versions while still working in full resolution HD within your application, ensuring proper quality for multi-format deliveries. Since conversion is hardware-based, it’s available all the time – during ingest or playback.

Extensive software support
AJA hardware is supported by an extensive list of professional software for editing, visual effects, graphics and more allowing the same AJA device to be used by many different applications on the same system. In addition, AJA provides several free applications that enable you to utilize the power of your AJA hardware even without having to run a particular software package. This allows you to create unique workflows without tying up valuable resources unnecessarily.

Extend Your Connectivity with KL-Box-LH
The optional KL-Box-LH breakout box lets you integrate KONA LHe Plus easily into rack environments for quick access to all video and audio connections. Additional connectivity includes BNC digital AES/EBU connectors and RCA audio monitoring jacks.

Industry-Leading Support
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your KONA installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.
KONA products are covered by a generous three year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.
