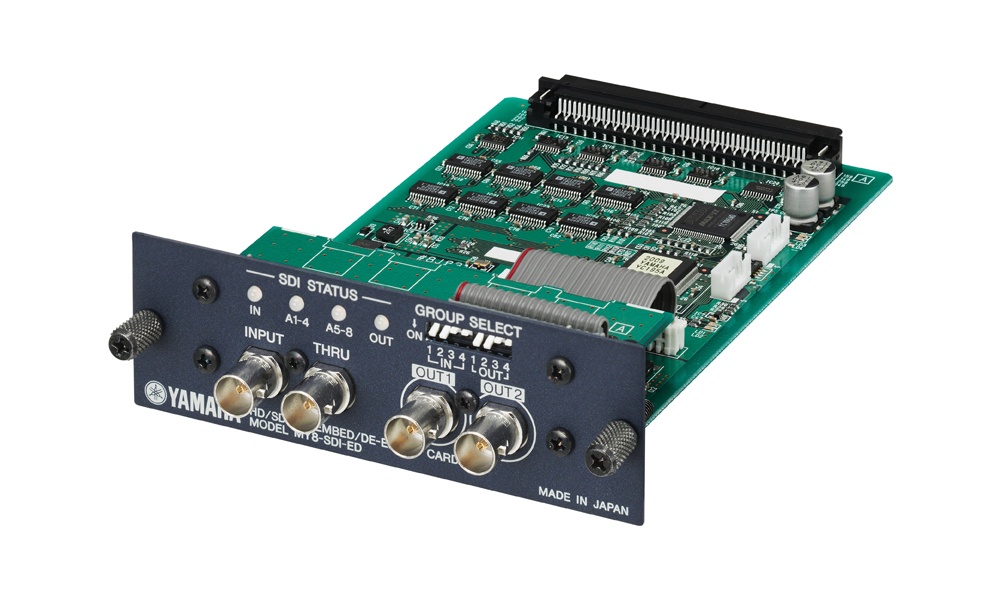

The MY8-SDI-ED Interface Card provides 1 x HD/SD-SDI Input and 2 x HD/SDI Output (same signal) of audio signal in 24-bit resolution for Yamaha Digital Consoles. It provides the ability to de-embed up to two of the 4 audio groups (4 channels per group; total 8 channels) multiplexed in a HD-SDI signal, and embed 2 audio groups into an HD/SD-SDI signal for output. An LED audio status display is also featured.

• 1 x HD/SD-SDI Input, 2 x HD/SDI Output (same signal)

• De-embed up to two of the 4 audio groups (4 channels per group;total 8 channels) multiplexed in a HD-SDI signal

• Embed 2 audio groups into an HD/SD-SDI signal for output

• LED audio status display.
