YAMAHA HS7

2-way active studio monitor

HS7

£205.00 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List

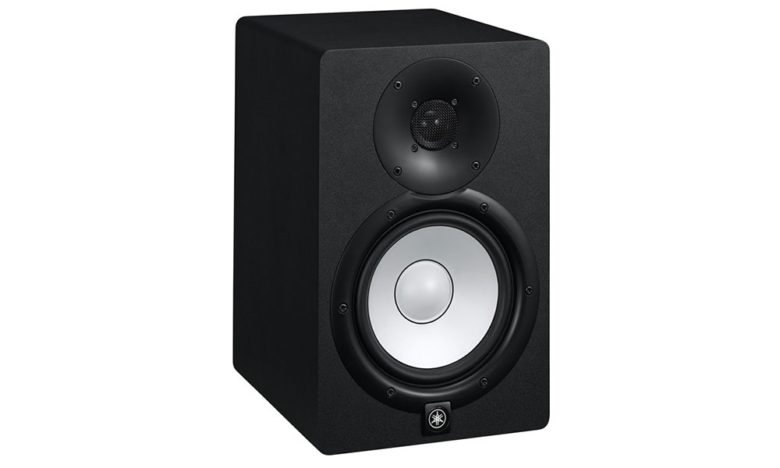

The Yamaha HS7 is a 2-way bass-reflex, bi-amplified nearfield studio monitor, with a 6.5-inch cone woofer and 1-inch dome tweeter. Featuring a 60W LF plus 35W HF bi-amp system, the HS7 studio delivers high-performance 95W power amplification with a frequency response of 43Hz – 30kHz.

A room control knob matches the HS7 monitor’s LF output to compensate for exaggerated low-frequency response caused by room reflections. A high trim switch controls the HS7’s high-frequency response. When the switch is set to the [0] position it produces a flat frequency response. The [+2 dB] setting boosts the range above 2 kHz by 2 dB, while the [-2 dB] setting attenuates the range above 2 kHz by -2 dB. An output level control of is also provided. Both XLR and TRS phone jack inputs are offered, which accept balanced or unbalanced signals.


• 2-way bi-amp powered
• Frequency range (-10dB): 43Hz – 30kHz
• HF: 1″ dome
• LF: 6.5″ cone
• Dimensions: W 210mm (8.3″) x H 332mm (13.1″) x D 284mm (11.2″)
• Net weight: 8.2kg (18.1 lbs.)
• I/O connectors:  XLR3-31 type (balanced), PHONE (balanced)

Media

Manual (2.40 MB)
