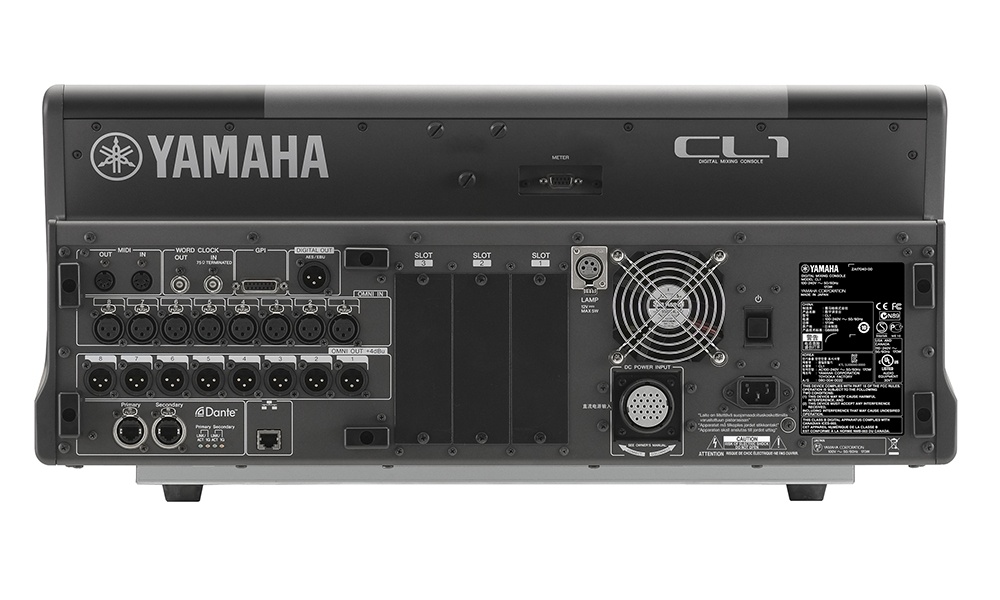

YAMAHA CL1

48-8 digitial mixing console.

YAMCL1

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List



Yamaha’s CL series of digital mixing consoles comprises three models – the CL1, CL3 and CL5. Ranging in mix capacity from 48 to 72 mono plus eight stereo inputs, all models feature 16 DCAs, 24 mix and eight matrix busses, plus stereo and mono output busses.

Yamaha’s Centralogic user interface has been updated for the CL Series to incorporate a new highly responsive colour touch screen and an array of user definable rotary encoders and buttons, which are freely configurable to allow control of any combination of inputs, outputs or the 16 DCA faders. The control surface also provides editable, backlit channel name displays above each fader, with assignable colour bars. The CL1 and CL3 also feature the option of an external meter bridge.

Newly-designed mic preamps and delays are featured on each input channel and output port, in addition to a range of studio-quality processing. The console’s Effects Rack provides the equivalent of eight SPX2000 effects processors, along with a range of VCM EQs and dynamics, while two further virtual racks provide access to up to 32 channels of graphic EQs.

The CL Series Premium Rack provides a range of high quality, dynamic processors and EQs developed in collaboration with Rupert Neve to incorporate the Portico 5033 EQ and 5043 Compressor. These processors come as a standard feature.

The new Yamaha CL Editor standalone (online/offline) editor software runs on both Mac and Windows PC. A new version of StageMix for iPad has also been created to include new features such as channel naming, DCA fader control and tap tempo. Both CL Editor and StageMix can be run simultaneously. The CL consoles also ship with a copy of the new Steinberg Nuendo Live recording software, designed specifically for live recording applications.

• Input channels: 48 mono, 8 stereo

• Fader configuration: 8-fader left section, 8-fader Centralogic section, 2-fader master section

• Meter bridge optional
