Warm Audio WA-87 R2

FET Condenser Microphone

WA87

£474.17 Price excludes VAT

Available for purchase online. For other products, contact us for a quote

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List



A Faithful Reproduction With Top-Shelf Components

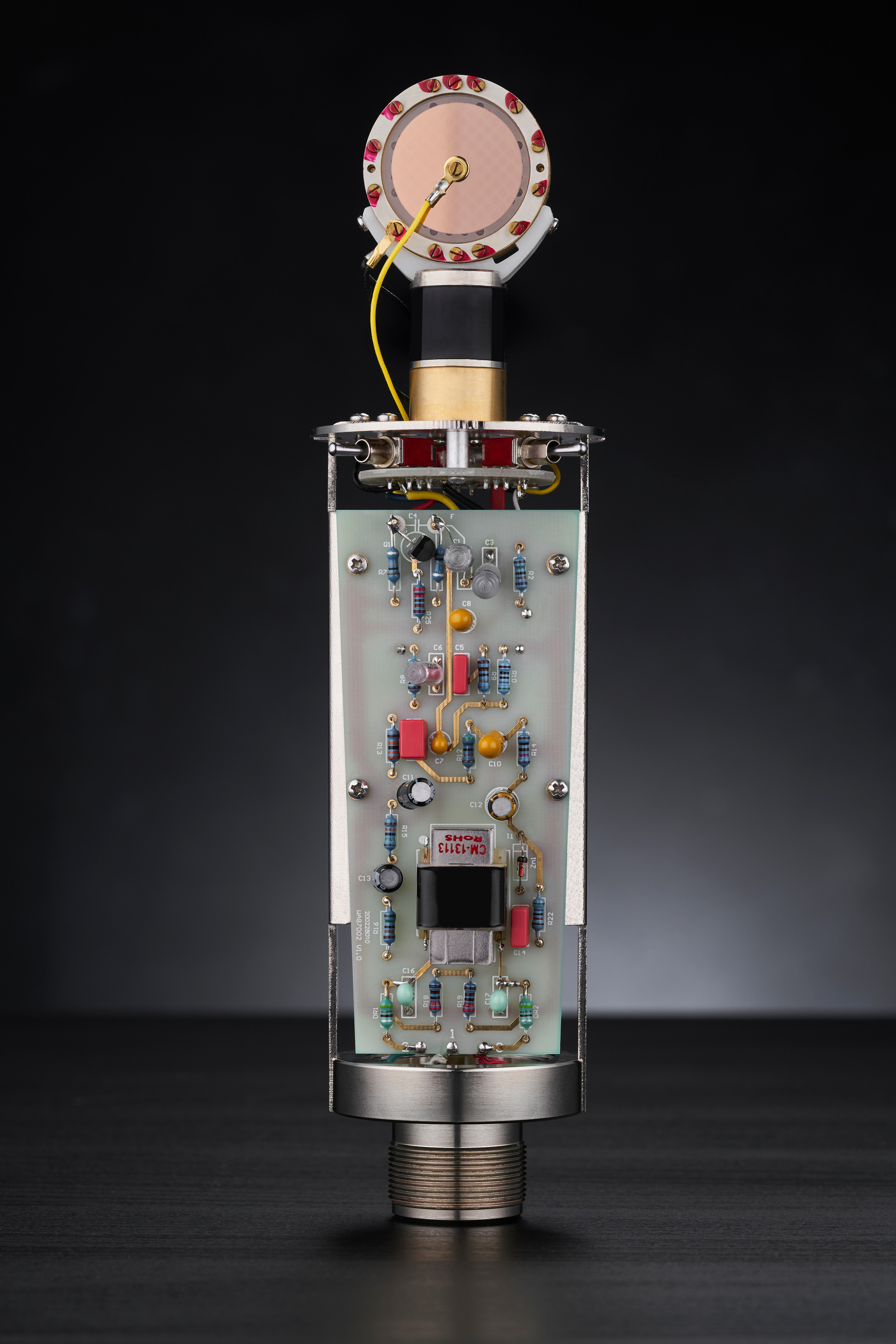

The WA-87 is based on a classic 60s circuit that is widely considered to be one of the greatest studio microphones ever designed. Warm Audio spent countless hours trying to get even closer to the sound of the vintage version than they had with the WA-87, so the new WA-87 R2 uses top-quality components like a NOS Fairchild transistor and high-bandwidth polystyrene and film capacitors from Wima. The WA-87 R2 uses a custom-wound Cinemag USA output transformer like the original WA-87 did, with the new version providing a slightly increased output level and improved frequency response. They also employed the same capsule the WA-87 uses, which was designed to the exact specifications of the ones found in the vintage mics. The result is an incredibly accurate sonic replica of arguably the widest-used studio microphone in popular recording history!

The Most Versatile Mic In Your Locker

Just like the vintage microphone, the WA-87 R2 excels at recording virtually anything. Three polar patterns (cardioid, omni, and figure 8) make sure you’re covered for a wide variety of applications, and an 80Hz high pass filter reduces low-frequency rumble if needed. The switchable -10dB pad comes in handy when you want to record extremely loud sources and not overload the internal electronics.

The WA-87 R2 works brilliantly on vocals, drum overheads, guitars, piano, auxiliary percussion, brass, strings, and more. Not only that, it’s the same price as the original WA-87, so you can afford to have several in your mic locker!

Technical Specifications

  • LARGE DIAPHRAGM STUDIO CONDENSER MICROPHONE, WITH A FAITHFUL REPRODUCTION OF THE ORIGINAL VINTAGE 87-STYLE CIRCUIT
  • ALL DISCRETE PREMIUM COMPONENTS, INCLUDING A NOS FAIRCHILD TRANSISTOR AND WIMA/NICHICON CAPACITORS
  • CUSTOM CINEMAG USA OUTPUT TRANSFORMER
  • WA-87-B-50V CAPSULE—REPRODUCTION OF CLASSIC DUAL BACKPLATE (FOUR-WIRE TERMINATION) K87 CAPSULE
  • NICKEL-PLATED BRASS BODY
  • THREE POLAR PATTERNS: CARDIOID, FIGURE-OF-EIGHT, AND OMNIDIRECTIONAL
  • -10DB PAD AND 80HZ HIGH PASS FILTER
  • FREQUENCY RESPONSE: 20HZ – 20KHZ
  • SPL: .5% THD @ 125DB (WITHOUT PAD), 132DB
  • DIAPHRAGM: 6-MICRON THICKNESS, GOLD-SPUTTERED MEMBRANE, NOS MYLAR (PET FILM)
  • NOISE: -117DB
  • INCLUDED ACCESSORIES: WOODEN STORAGE CASE, HARD MOUNT, AND SHOCK MOUNT. (OPTIONAL FLIGHT CASE AVAILABLE)
  • WEIGHT (FULLY BOXED): 6.5 LBS / 3 KG

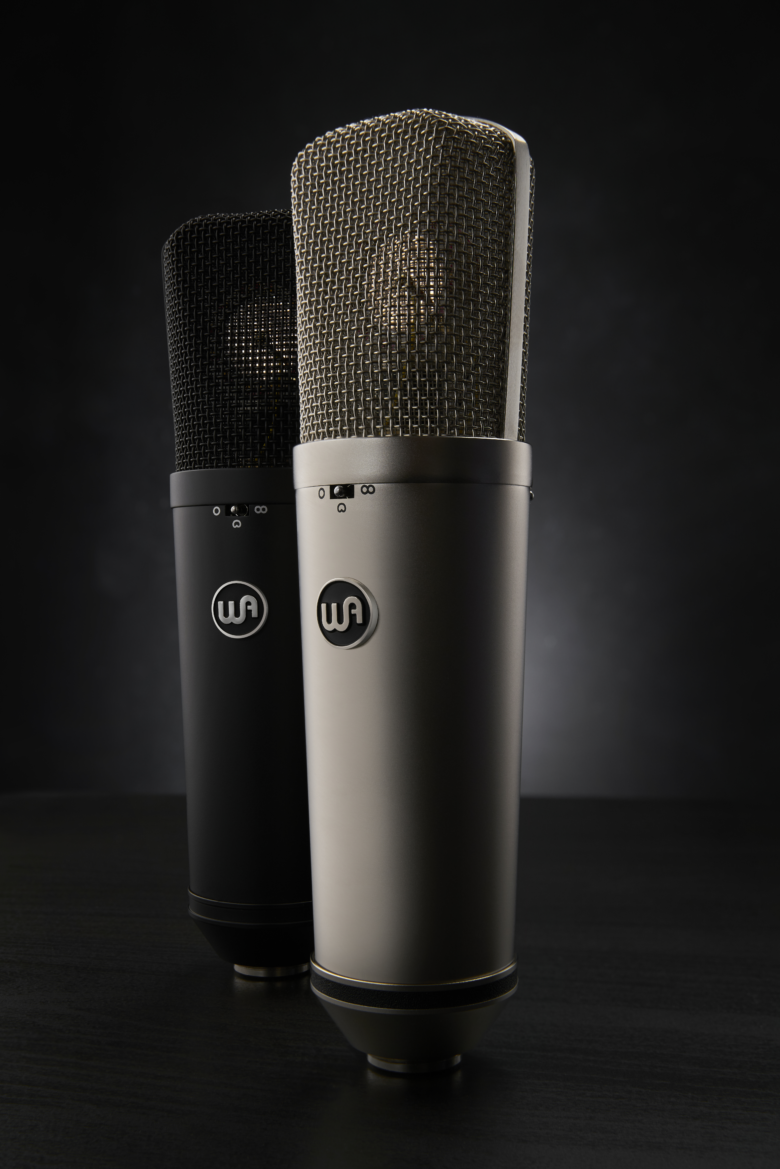

  • COLOR: AVAILABLE IN NICKEL OR BLACK FINISH



Media

Manual (10.86 MB)
