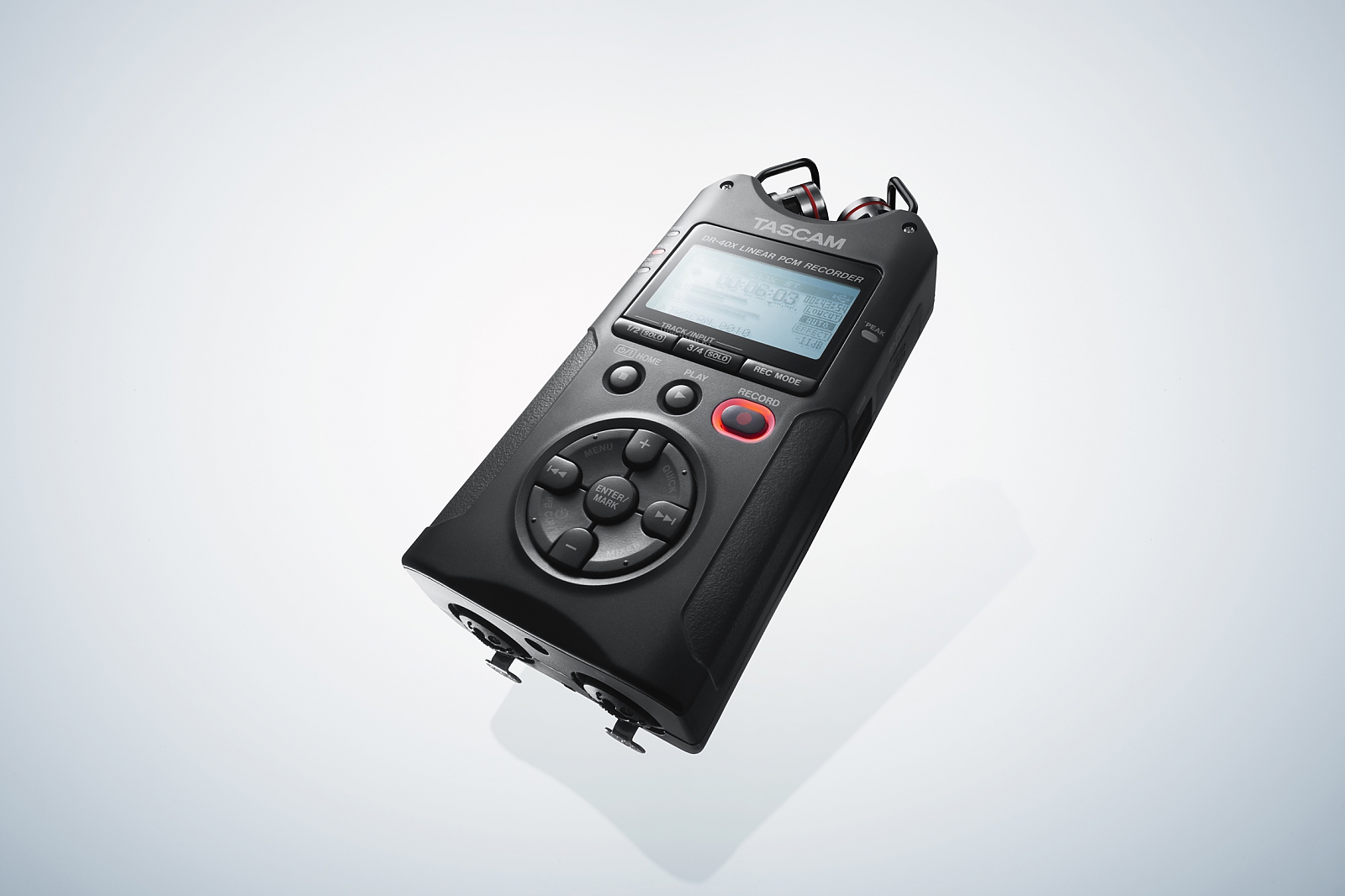

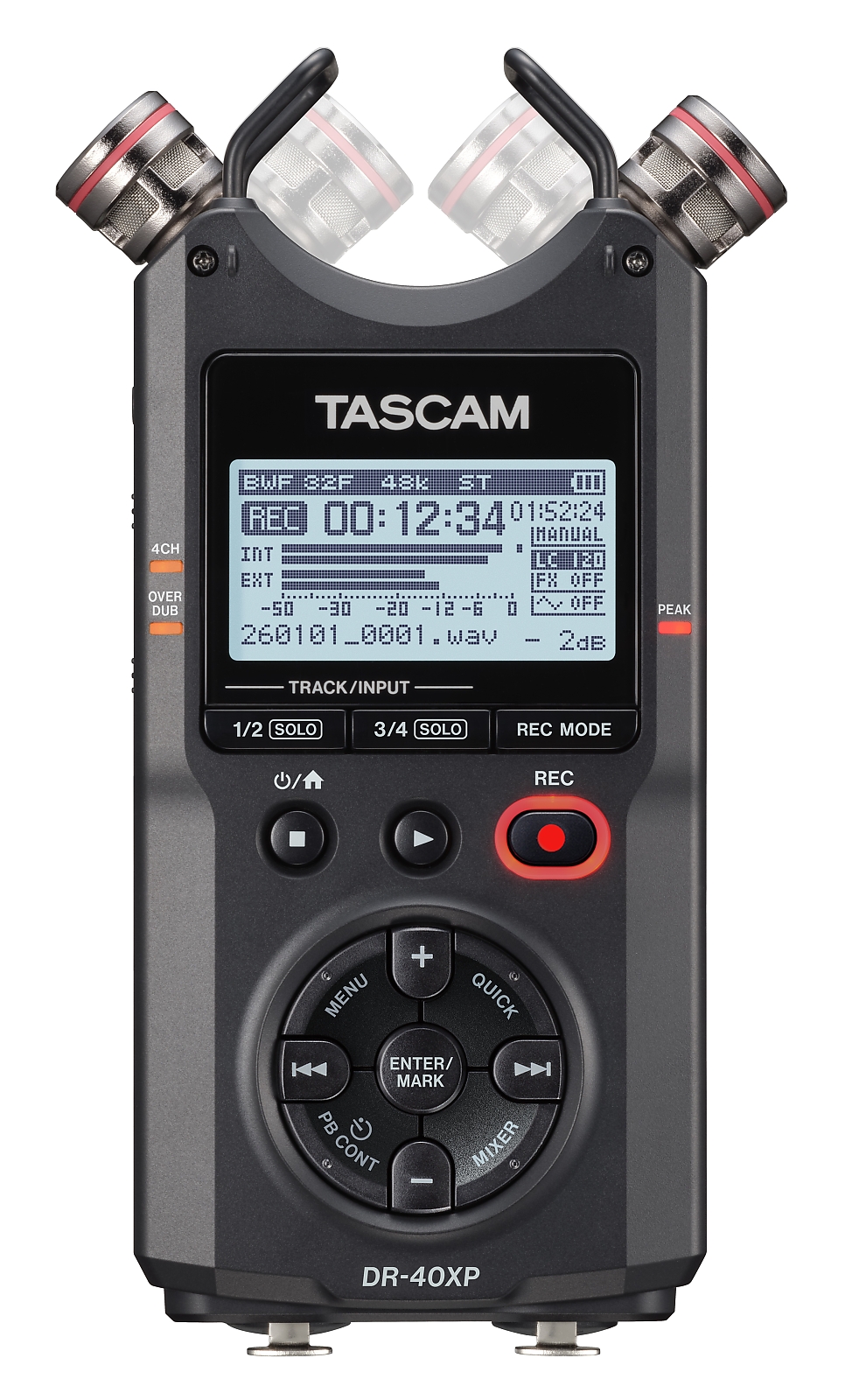

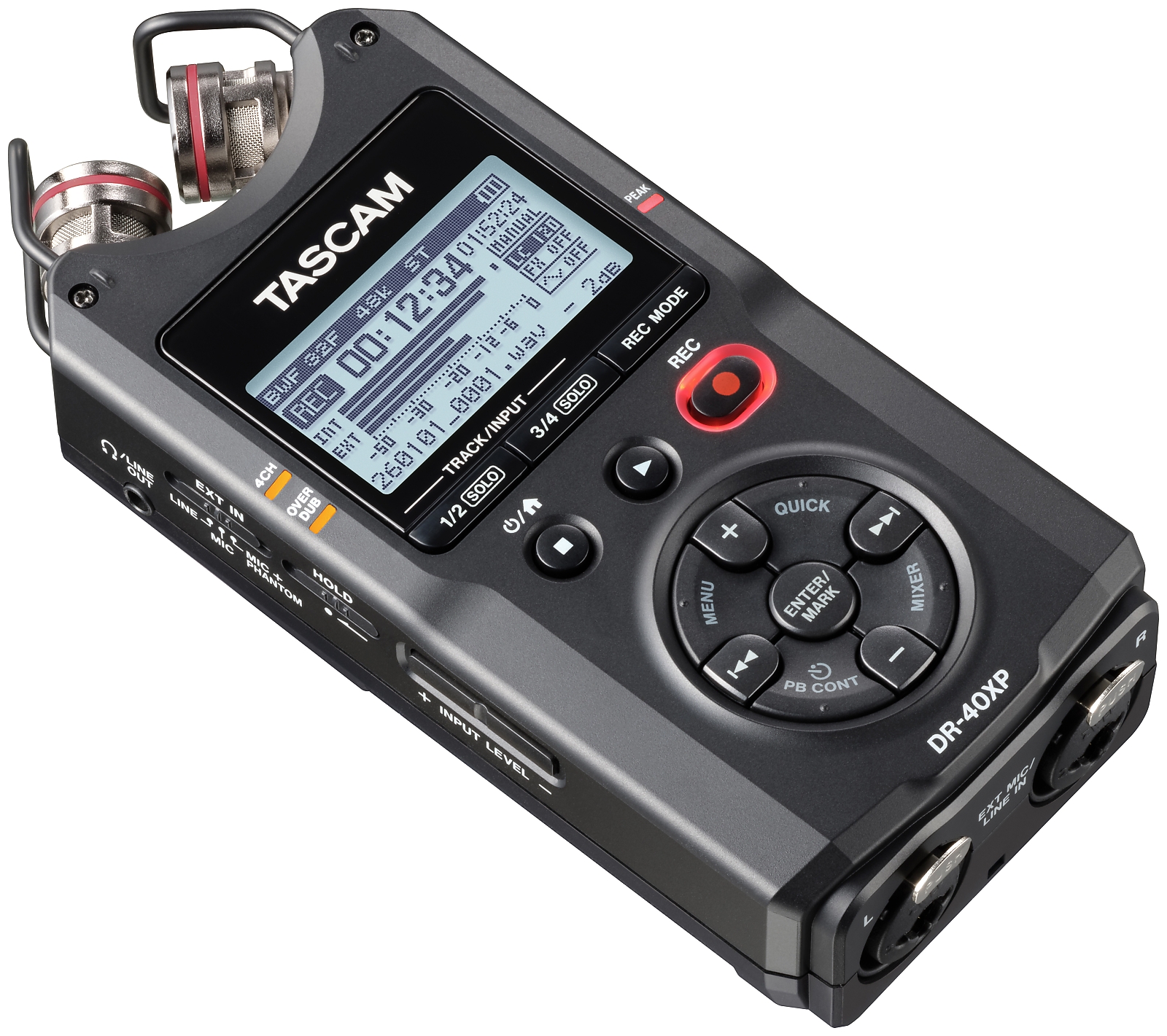

TASCAM DR-40X

Portable Four-Track Digital Audio Recorder and USB Audio Interface

DR-40X

£159.99 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List



Professional Features for Professional Audio Recordings

The DR-40X is a versatile four-track audio recorder for music, podcasting, cinema and any other application requiring high-quality audio. Building on the highly successful Tascam DR-40, this recorder adds several new functions to the already comprehensive feature set.

A pair of cardioid condenser microphones handles high sound pressure levels and can be set up in AB or XY orientation for a wide stereo field or extra-clear reproduction with reduced phase displacement between both channels. Users can also use their own microphones or line-level source through dual Neutrik XLR/TRS combo jacks that support both mic level and +4 dBu line level from mixers or the FOH console. The microphone preamps include 48-volt phantom power and plenty of gain to capture everything from small whispers to loud live sounds. Using the stereo built-in microphones, you can capture ambient sound of the audience while recording directly from an external console, which is ideal for live performances. Like its predecessor, the DR-40X also offers dual-level recording, a feature that helps to avoid distortion by providing a second recording file created with a lower level setting.

Simple to Operate

The layout of the DR-40X has been revamped to be quick and easy to work with one thumb. Operations like recording, adjusting levels, deleting bad takes and adding marks are just a button press away. Menus are available in English, Spanish, Portuguese, French, Italian, German, Russian, Chinese, Korean, Japanese. Three different auto level modes (Limiter, Peak Reduction, Auto Level) can help to prevent accidental distortion while recording. You may apply one out of six reverb effects to the input or output signal, and an Overdub feature allows voices or instruments to be added to existing audio files. There is also a Level Align function that allows to smooth out any sudden volume jumps during playback, and a built-in speaker is provided for quick check-back. Other features like variable speed audition, low-cut filtering, chromatic tuner and more can be chosen from the menu.

Transcript Your Voice Recordings

The new Dictation Mode enables you to jump back and forth in preselected increments while playing back a file. It can be combined with speed control and a special dictation EQ making it useful for transcribing minutes recordings, for example. The new tape-style Overwrite mode with one level of undo lets you select a drop-in time and replace part of an existing recording.

Turn Your Room Into a Studio – In a Minute

Apart from handheld recording, the DR-40X can also be used as a USB audio interface with two inputs and outputs, making it a strong yet easy gear for voiceover work, live streaming, podcasting and songwriting with studio-quality audio.

Key features

    • Portable, high-quality handheld recording
    • Compact size and easy operation
    • SD/SDHC/SDXC cards can be used as recording media (up to 128 GB)
    • Supported audio formats:
      • Linear PCM (WAV/BWF format) at 44.1/48/96 kHz and 16/24-bit
      • Compressed (MP3 format): 32–320 kbit/s at 44.1/48 kHz (VBR files can be played but not recorded)
    • Can be used as a USB audio interface with Mac and Windows computers (two inputs, two outputs)

    Recording

    • Built-in cardioid stereo condenser microphone
      • Accepts high sound pressure level up to 125 dB

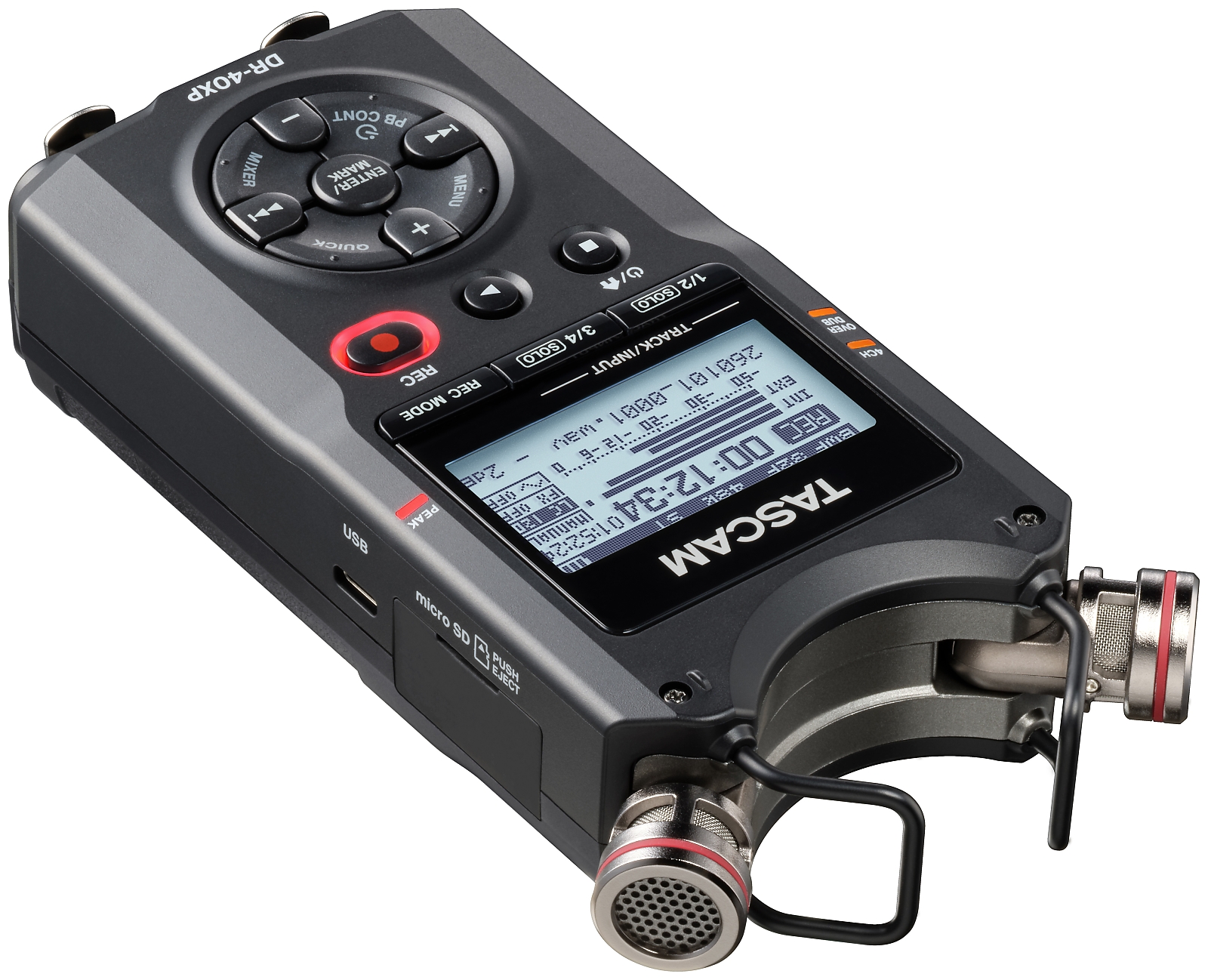

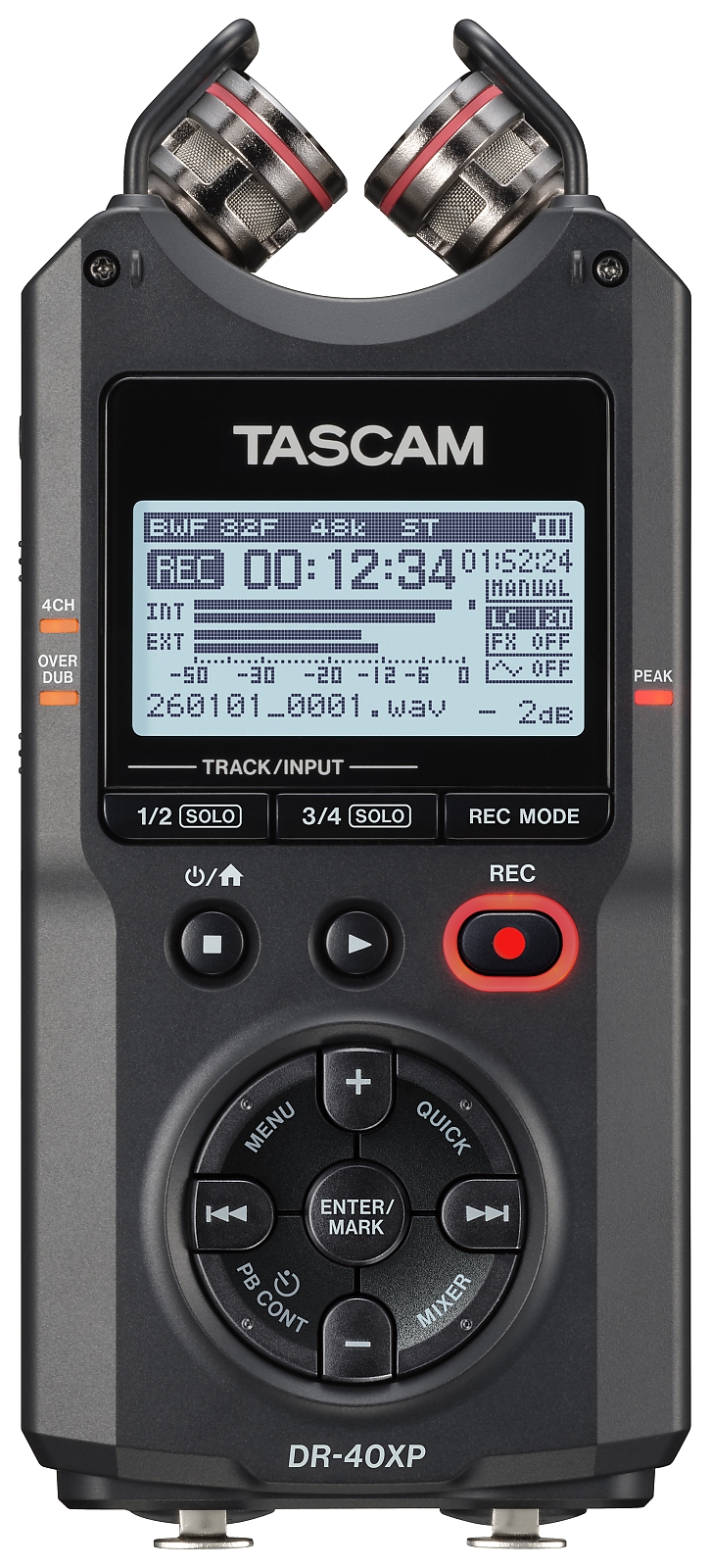

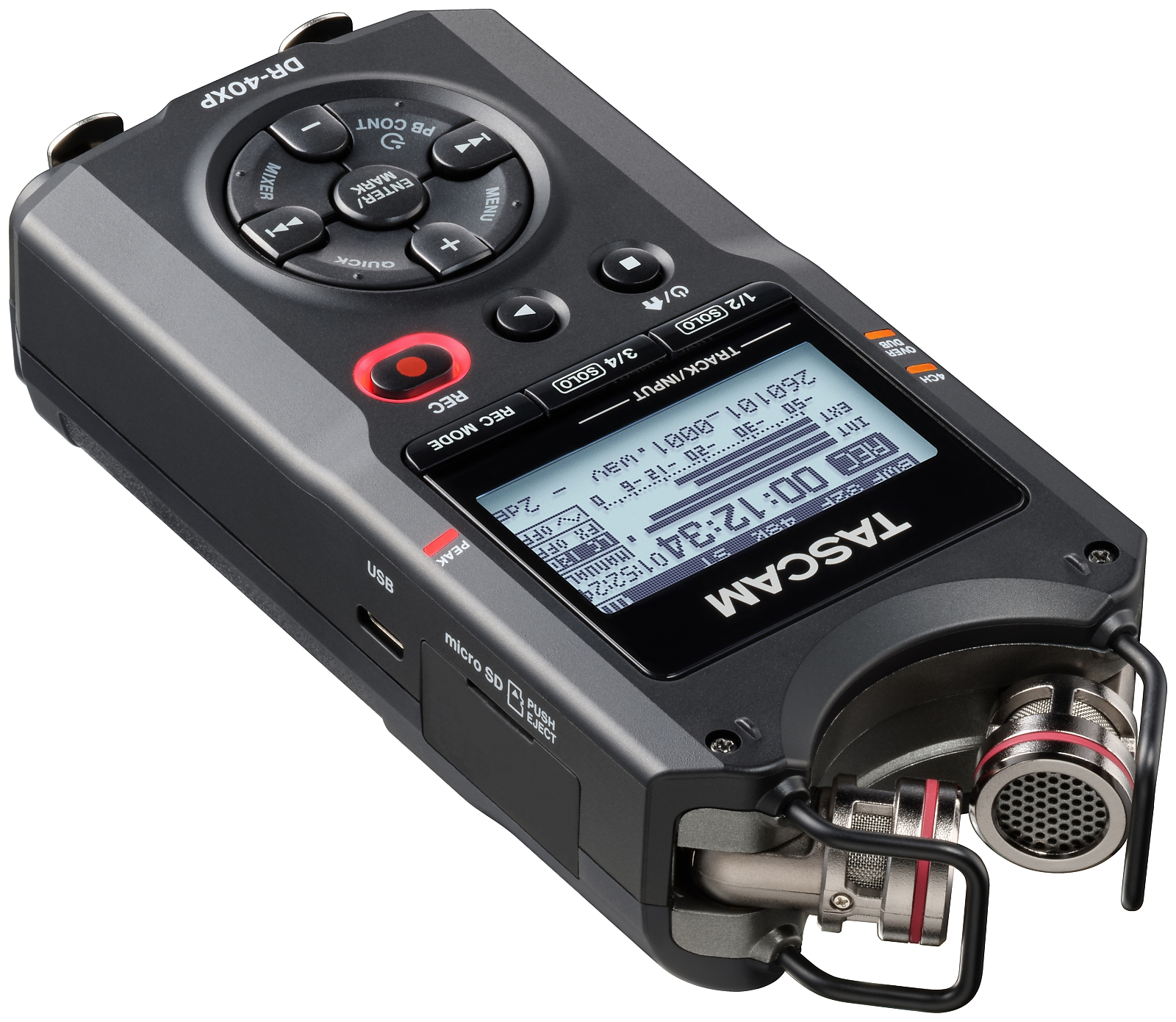

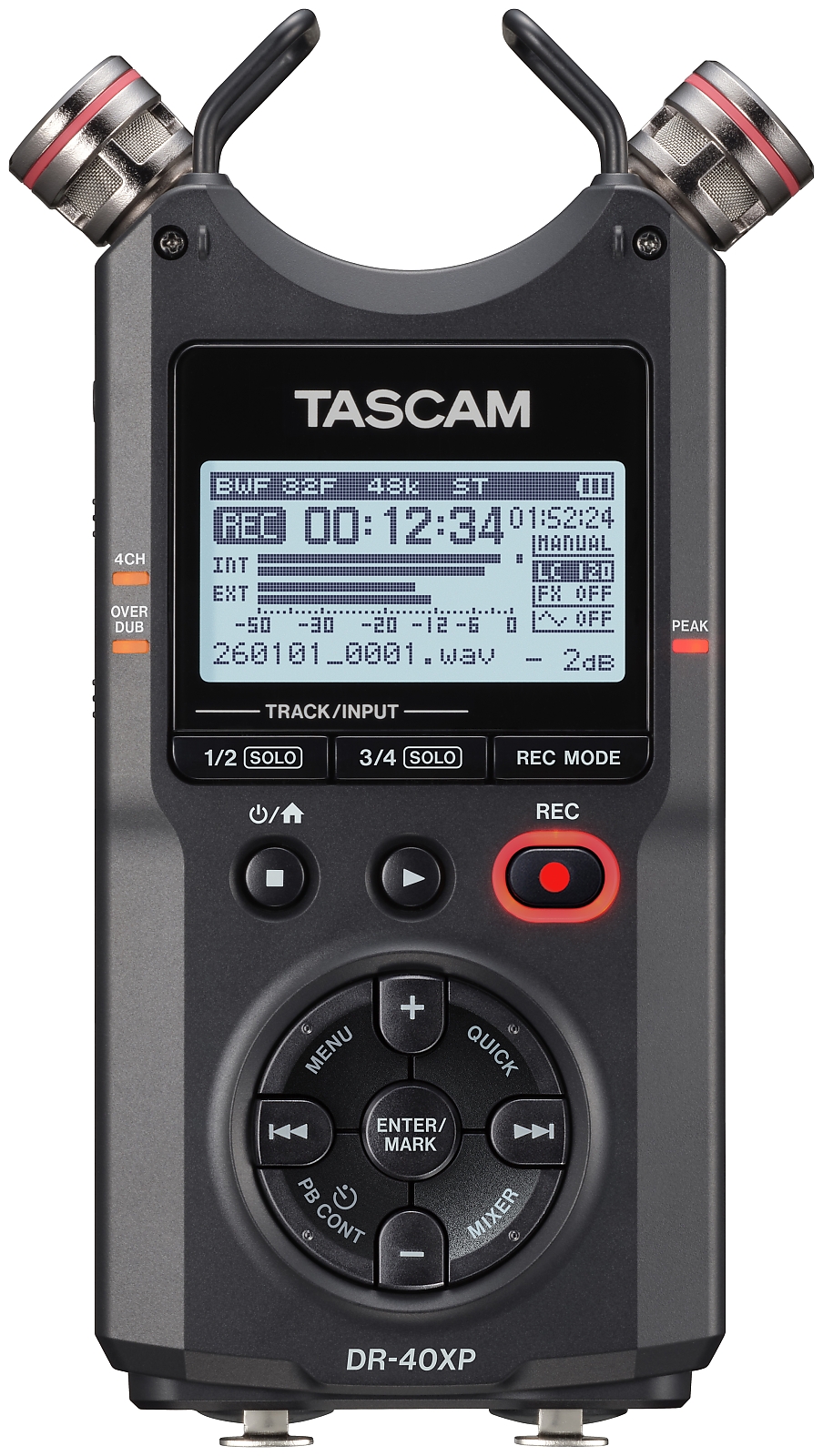

      • Easy setup (AB and XY configuration supported)
      • XY configuration allows mono compatible recordings and high sound localization acuity (lively interviews or field recordings with ambience)
      • Good directivity and channel separation
      • Ideal for live music and field recording, news gathering, music training etc.
      • MS decoder for recordings created with mid/side microphone configuration
    • Stereo XLR/TRS mic/line input with phantom power (supports +4 dB line level input)
    • 4-track recording
      • Create two stereo recordings from the built-in microphones and the external mic/line input at the same time
      • Create two stereo recordings with different level settings from the built-in microphones or external mic/line input at the same time
      • Non-destructive overdub: Record a mix of one or two stereo playback files and a stereo input signal to a new stereo file or record only the input signal while playing back one stereo file
      • Mixdown feature with level, pan and effect controls for each track (creates a stereo track from a 4-track recording)
    • Overwrite function for punch-in recording with one level of Undo
    • MS decoder for recordings created with mid/side microphone configuration
    • Switchable low-cut filter (40 Hz, 80 Hz, 120 Hz, 220 Hz)
    • Manual or automatic recording level setting
    • Three Options of automatic level control during recording: Peak Reduction, Auto Level, Limiter
    • Pre-recording buffer (2 seconds) allows a recording to start before the record key is pressed
    • Auto recording start and stop by input level
    • Self-timer allows a recording to start 5 or 10 seconds after pressing the RECORD button
    • Create a new file during recording (manually or by file size)
    • Mark function (manual or automatic, up to 99 marks for each file)

    Playback

    • Automatic level align allows to increase the perceived overall sound pressure during playback
    • Variable speed audition to change the playback tempo without affecting the key (50–200 %)
    • Repeat function (repeat one track or all tracks)
    • Loop function (repeat a marked section)
    • Playlist feature to play files in a certain order
    • Resume function (start playback from the audio position where the unit was last stopped)
    • Jump back function to instantly review playback (1–10, 20, 30 seconds)
    • Equalizer for tone control during playback
    • MP3 ID3 tag display (up to version 2.4)
    • Built-in monitor loudspeaker

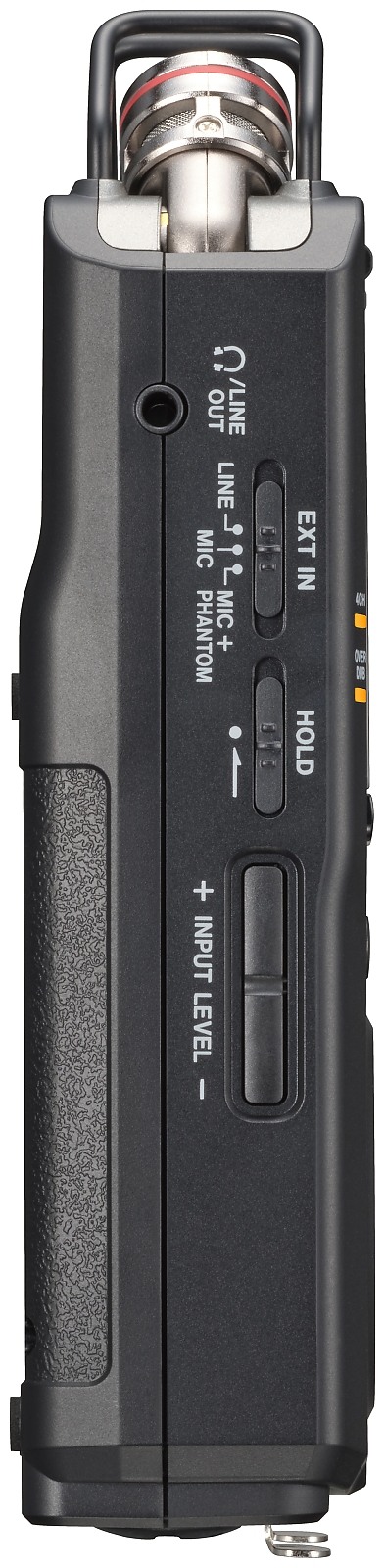

    • Headphones/Line output

    Other features

    • Built-in reverb effect (6 presets, can be applied to input or output signal)
    • Chromatic tuner function to tune your instrument
    • File divide function to cut unwanted noise or to extract parts from long recordings
    • Folder management to organize your files
    • Hold function to avoid inadvertent operation
    • QUICK menu button for easy access to various functions
    • Menu language can be selected between English, German, French, Italian, Spanish, Portuguese, Russian, Korean, Japanese, Chinese
    • Clear, backlit LC display

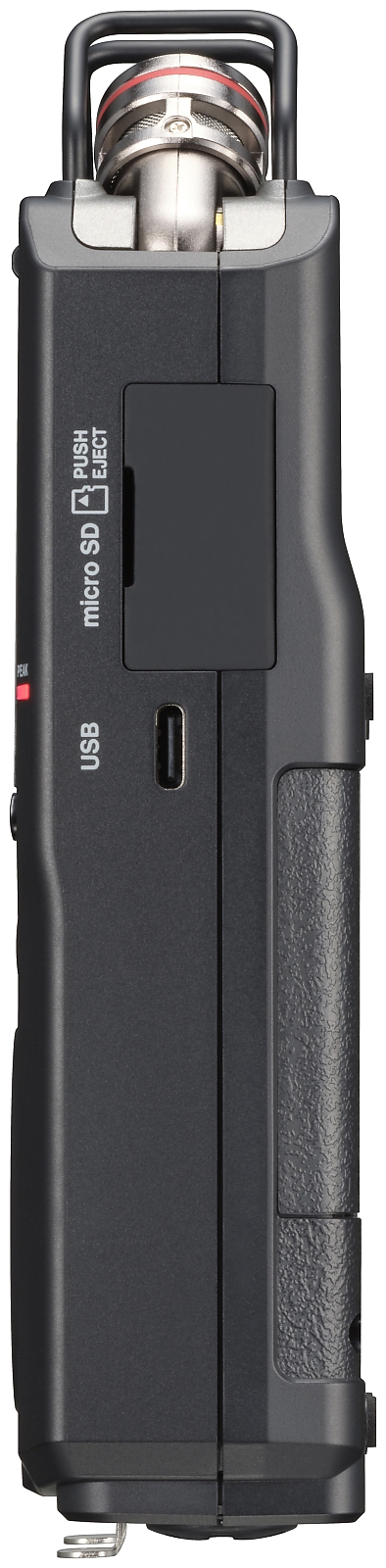

    • USB 2.0 port for file transfer to/from computer
    • Power supply by 3 AA size Alkaline or NiMH batteries (up to 15 hours continuous operation with phantom power off), USB bus power or optional AC adapter (Tascam PS-P520E)
    • Long-time operation of over 20 hours is possible using just the internal batteries
    • Rubber feet included for improving the acoustic properties during desktop recordings
    • Stand adapter (¼ inch) on bottom side to attach the unit to a tripod or microphone stand
    • Optional footswitch (RC-3F) and wired remote control (RC-10)

Specifications

Specifications

General
Recording media microSD card (64 MB – 2 GB)
microSDHC card (4–32 GB)
microSDXC card (48–128 GB)
Recording/playback formats BWF: 44.1/48/96 kHz, 16/24 bit
WAV: 44.1/48/96 kHz, 16/24 bit
MP3: 44.1/48 kHz, 32/64/96/128/192/256/320 kbit/s
Number of channels 4 channels (2 × stereo)
Audio inputs and outputs

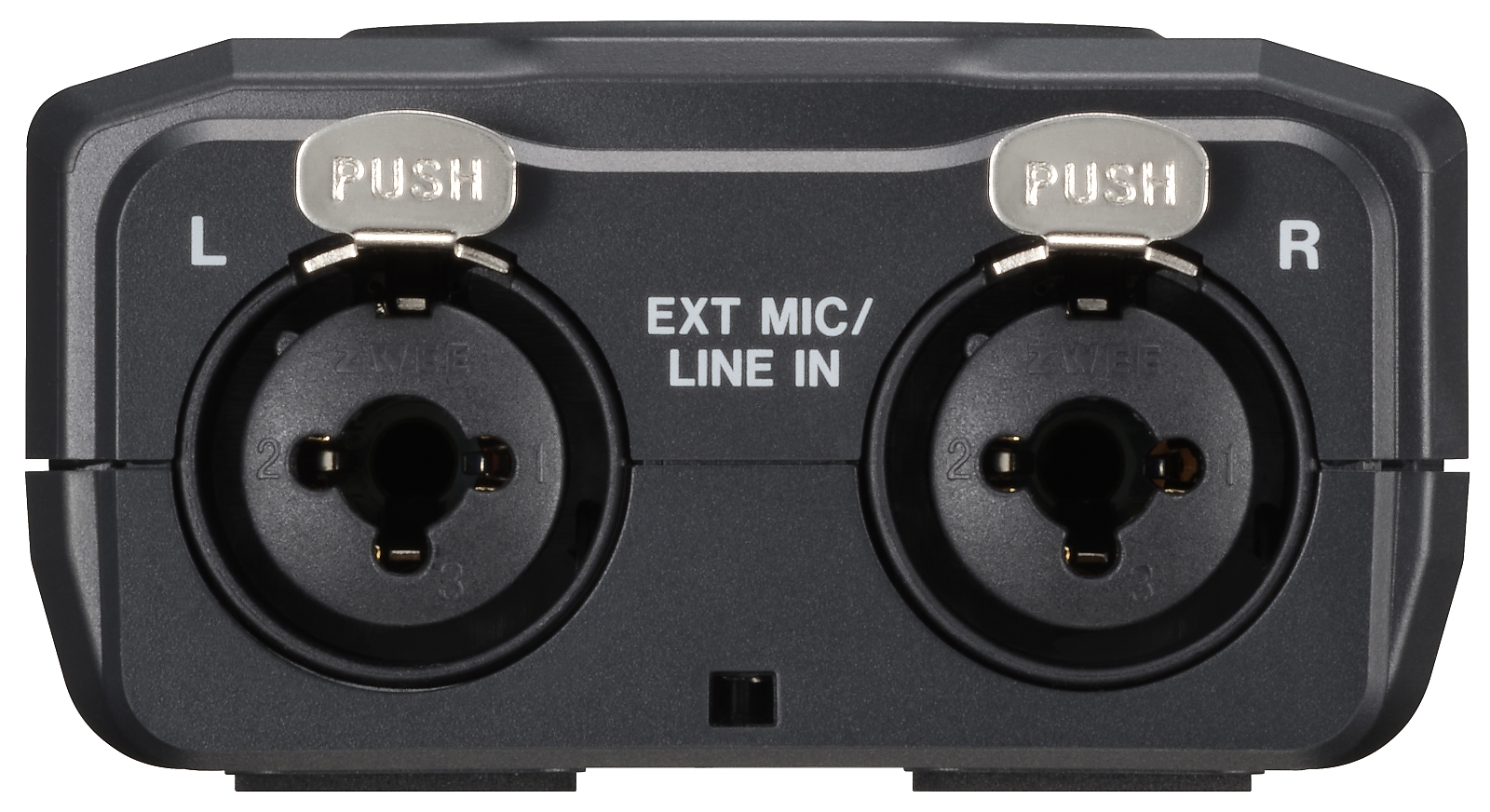

External Mic/Line input XLR/jack combo connectors
(XLR can provide phantom power)
Headphones / Line output 3.5-mm stereo mini jack
Built-in loudspeaker 0.3 W (mono)
Control inputs/outputs
USB port Micro-B connector
  Format USB 2.0 High Speed mass storage class
REMOTE connector 2.5-mm TRS jack
Audio performance
Frequency response 20 Hz – 20 kHz +1/−3 dB
(MIC/EXT IN to LINE OUT, Fs 44.1 kHz, JEITA)
20 Hz – 22 kHz +1/−3 dB
(MIC/EXT IN to LINE OUT, Fs 48 kHz, JEITA)
20 Hz – 40 kHz +1/−3 dB
(MIC/EXT IN to LINE OUT, Fs 96 kHz, JEITA)
Total harmonic distortion ≤0.01 %
(MIC/EXT IN to LINE OUT, Fs 44.1/48/96 kHz, JEITA)
S/N ratio ≥94 dB
(MIC/EXT IN to LINE OUT, Fs 44.1/48/96 kHz, JEITA)
Note: JEITA indicates compliance with JEITA CP-2150
Approximate battery operation time (continuous operation)
Alkaline batteries (Evolta)
WAV, 96 kHz, 24 bit 14:30 (two-track recording with built-in mics)
WAV, 44,1 kHz, 16 bit 18:00 (two-track recording with built-in mics)
6:30 (Phantom power, 48 V, 2 × 3 mA)
MP3, 44,1 kHz, 128 kbit/s 16:00 (two-track recording with built-in mics)
WAV, 96 kHz, 24 bit 8:30 (four-track recording with built-in mics and line input)
WAV, 44,1 kHz, 16 bit 9:00 (four-track recording with built-in mics and line input)
MP3, 44,1 kHz, 128 kbit/s 9:00 (four-track recording with built-in mics and line input)
WAV, 96 kHz, 24 bit 14:00 (two-track playback using headphones)
WAV, 44,1 kHz, 16 bit 19:30 (two-track playback using headphones)
MP3, 44,1 kHz, 128 kbit/s 16:30 (two-track playback using headphones)
WAV, 96 kHz, 24 bit 14:00 (four-track playback using headphones)
WAV, 44,1 kHz, 16 bit 16:00 (four-track playback using headphones)
MP3, 44,1 kHz, 128 kbit/s 16:30 (four-track playback using headphones)
NiMH rechargeable batteries (Eneloop)
WAV, 96 kHz, 24 bit 11:00 (two-track recording with built-in mics)
WAV, 44,1 kHz, 16 bit 16:00 (two-track recording with built-in mics)
5:30 (Phantom power, 48 V, 2 × 3 mA)
MP3, 44,1 kHz, 128 kbit/s 12:30 (two-track recording with built-in mics)
WAV, 96 kHz, 24 bit 7:30 (four-track recording with built-in mics and line input)
WAV, 44,1 kHz, 16 bit 7:30 (four-track recording with built-in mics and line input)
MP3, 44,1 kHz, 128 kbit/s 8:00 (four-track recording with built-in mics and line input)
WAV, 96 kHz, 24 bit 12:00 (two-track playback using headphones)
WAV, 44,1 kHz, 16 bit 15:30 (two-track playback using headphones)
MP3, 44,1 kHz, 128 kbit/s 13:00 (two-track playback using headphones)
WAV, 96 kHz, 24 bit 11:30 (four-track playback using headphones)
WAV, 44,1 kHz, 16 bit 12:30 (four-track playback using headphones)
MP3, 44,1 kHz, 128 kbit/s 13:30 (four-track playback using headphones)
Power supply and other specifications
Power requirements 3 AA batteries (alkaline or NiMH)
USB bus power from a computer
AC adapter (Tascam PS-P520E, sold separately)
Power consumption 1.7 W (maximum)
Current draw 0.34 A (maximum)
Dimensions (W × H × D) 70 mm × 155 mm × 35 mm (mics folded in)
90 mm × 155 mm × 35 mm (mics folded out)
Weight 213 g (without batteries)
282 g (with batteries)
Permissible operating temperature range 0–40 °C
