Plug-on micro linear PCM recorder


£116.66 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List

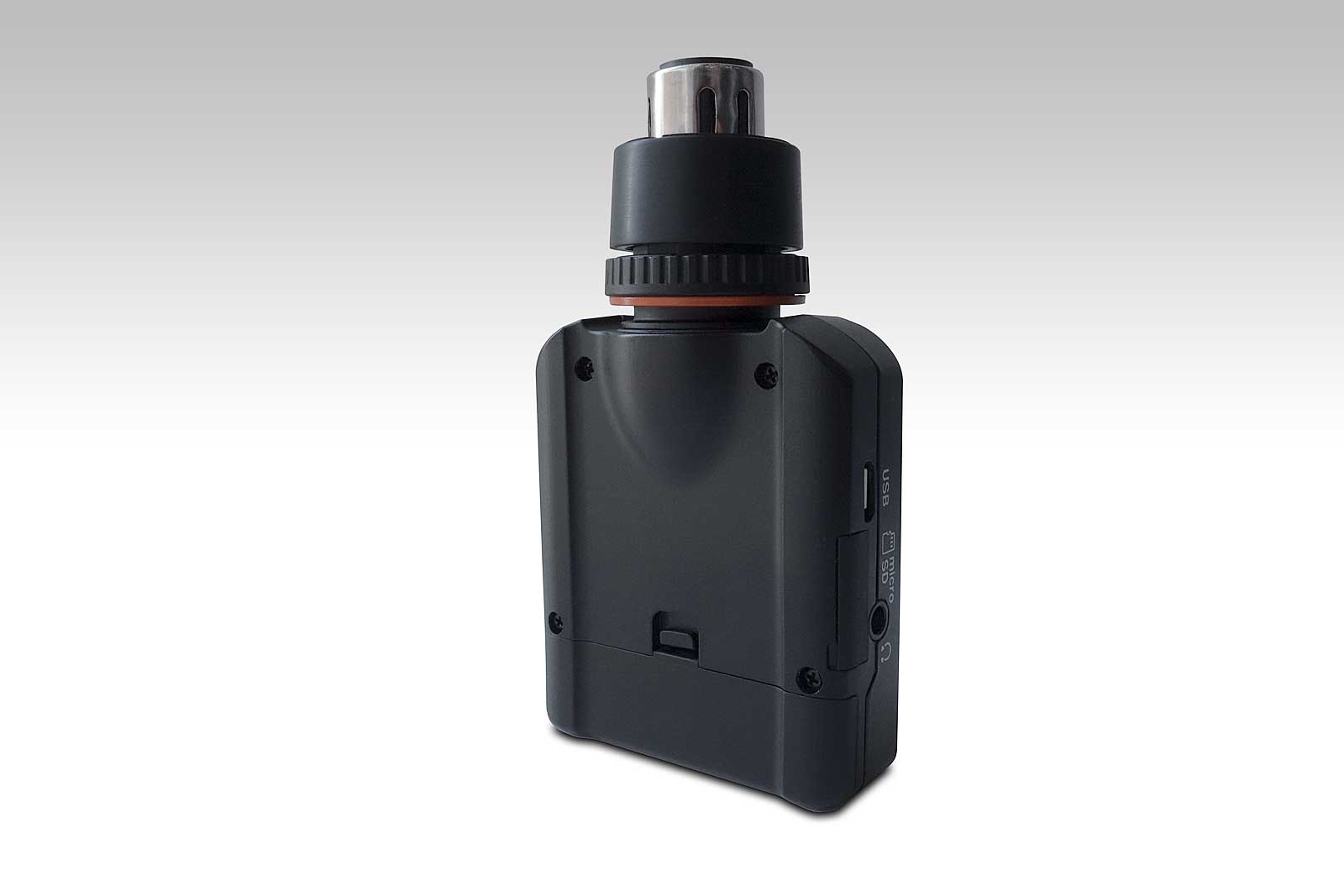

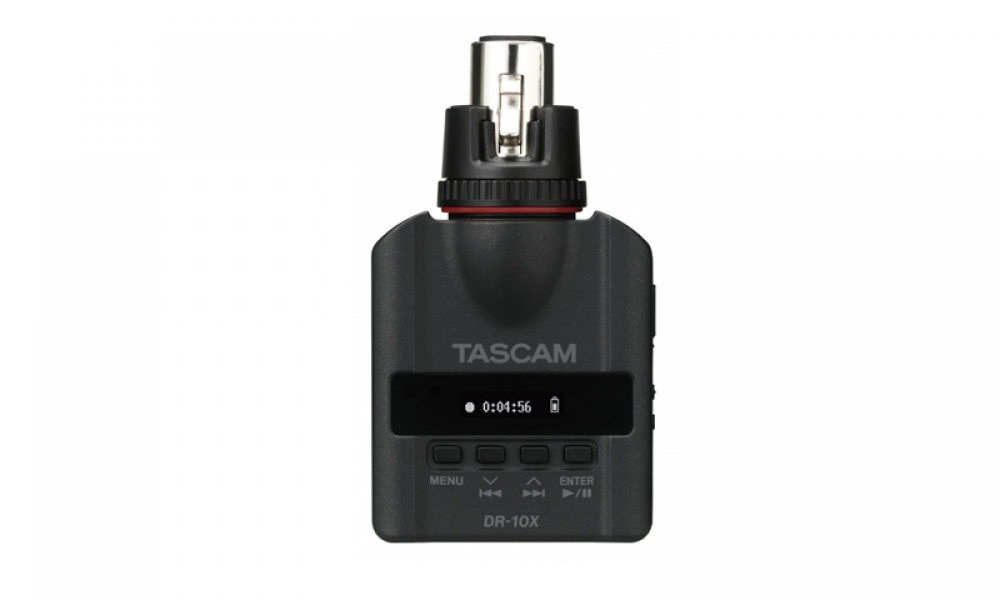

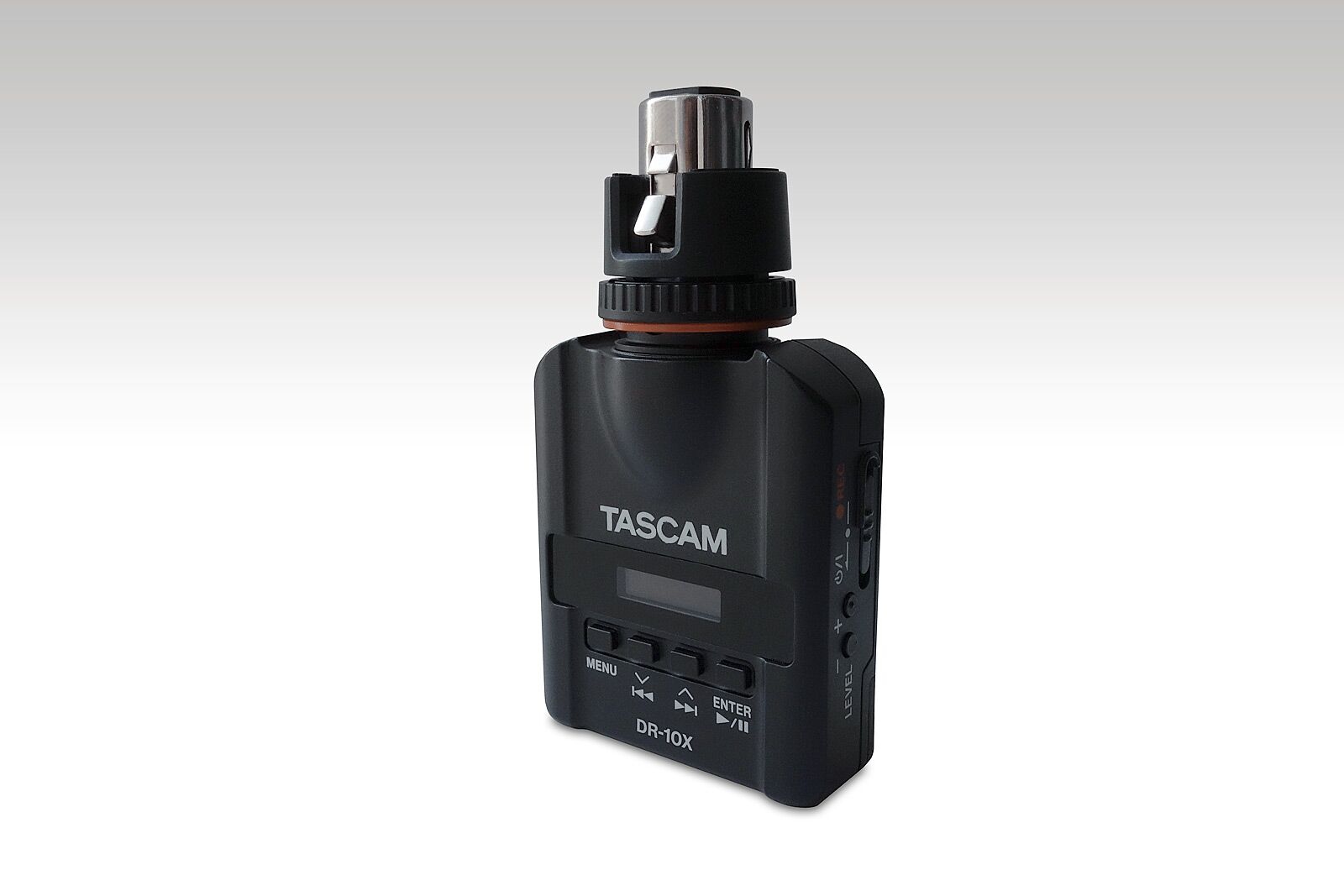

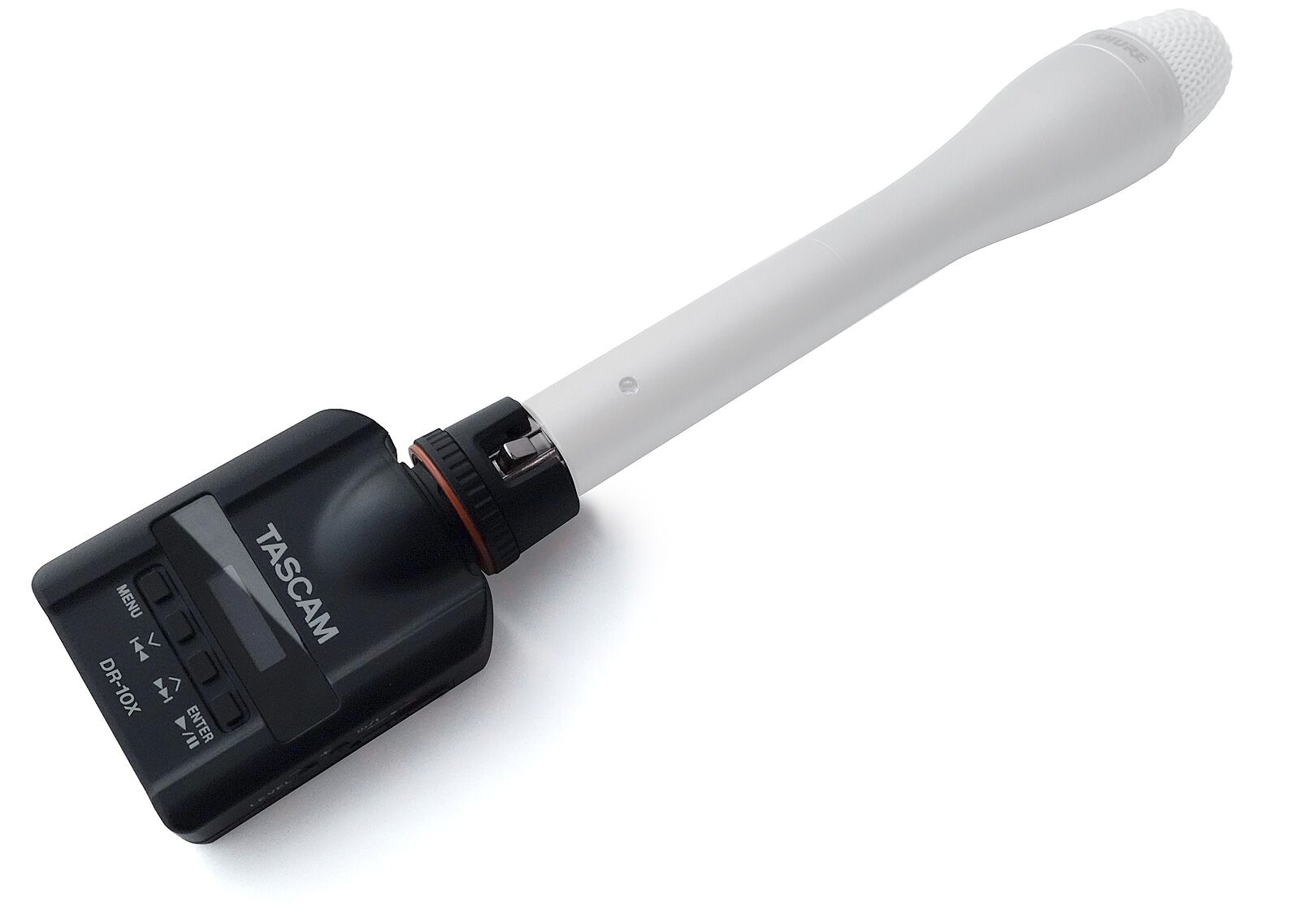

The Tascam DR-10X is a plug-on micro linear PCM recorder that attaches to a handheld microphone for the ultimate compact ENG recording system. A captive XLR connector attaches firmly to your microphone, capturing interviews at 48kHz/24-bit Broadcast WAV resolution.

The DR-10X has both manual and automatic gain settings, with a low cut filter and limiter to prevent overloads. The Dual Recording mode captures a copy of the audio at a lower level, so if there is distortion you have a backup safety. Recording can begin instantly by holding the record side switch while turning the unit on. For simple-to-use ENG recording that stays out of the way, TASCAM’s DR-10X leads the field. Recordings can be retrieved via the microUSB connection or by removing the MicroSD card.

Key features:

• XLR jack mounts directly to dynamic microphone (It also can use condenser microphone powered by battery.)
• 48kHz/24 bit BWF mono recording
• Uses MicroSD or MicroSDHC media, up to 32GB
• Mic pre gain Low/Mid/High control
• Instant record mode – power on while holding record button side switch
• Limiter and low cut filter
• Manual or automatic gain control
• Dual recording mode captures a copy of your audio at a lower level as a safety track
• Time Track Increment function writes a new track marker after a set time limit. There is on/off setting, but the time is 15 minutes fixed when turn it on.
• Easy-to-read OLED display
• Edit settings on a PC and send them to the DR-10X through the microUSB port
• Playback function with headphone out
• More than  8 hours of recording with single AAA battery




Manual (4.02 MB)
