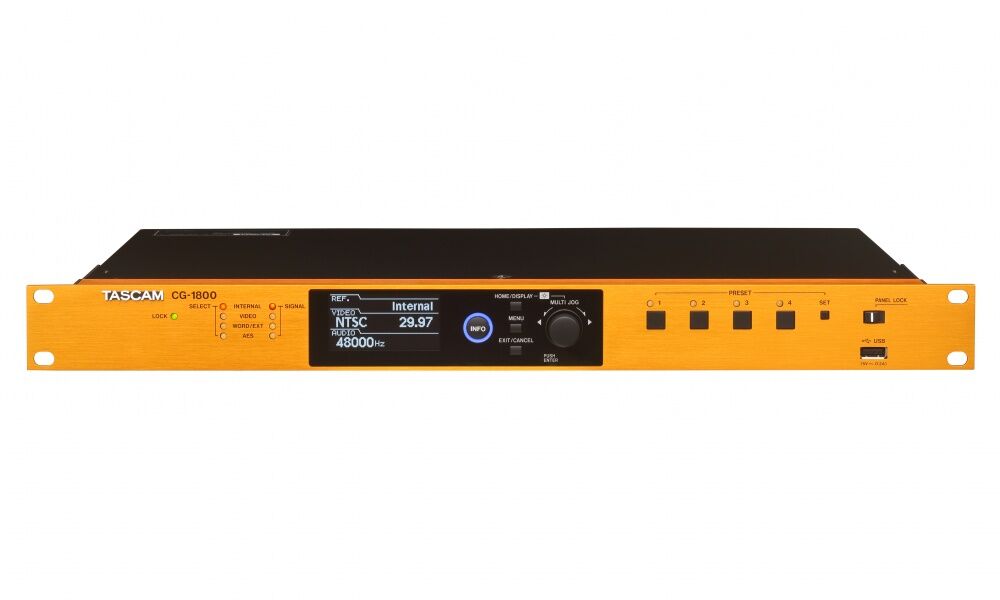

TASCAM CG-1800

TASCAM CG-1800

Clock generator

CG-1800

£1,483.33 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List



TASCAM CG-1800 master clock generator generates NTSC, PAL and HD tri-level video clock – as well as word clock through BNC, AES/EBU and S/PDIF outputs – ensuring compatibility with any synchronisation system.



  • Internal clock uses a high-precision OCXO (oven-controlled crystal oscillator) that is not influenced by the temperature of the environment
  • External input connector that supports 10MHz, allowing creation of systems with even higher precision
  • Jitter management circuit provides stable clock
  • Glitch-free relocking circuit prevents noise and skipping during clock dropouts and recovery
  • Numerous output connectors, including (12) word clock outputs, enabling the use in large-scale video/audio synchronization systems
  • Supports input and output of a variety of video signal formats, including NTSC, PAL and HD Tri-level
  • AES3 and AES11 signals can also be used for external master clock input sources
  • Analyser function that can measure output device termination
  • Optimal levels can be provided to other devices by adjusting wordclock output levels
  • Self-calibration function using an external oscillator (Atomic/GPS 10MHz, GPS PPS)
  • *Use of the self-calibration function requires the use of a separate PPS-output 10MHz oscillator with a built-in GPS antenna.
  • Word clock performance up to 192 kHz
  • 0.1% pull-up/down for 24F(Film) and 29.97F(NTSC), and 4% pull-up/down for 24F(Film) and 25F(PAL)
  • Up to (4) system settings can be saved to buttons for recall, and saved settings can be imported and exported via USB
  • Durable nut-coupling BNC connectors made by Amphenol
  • Independent circuit boards for each connector prevents contact failures due to twisting
  • Three-prong IEC power cable included
  • Panel-lock switch can be used to prevent inadvertent changes to unit operation
  • 128×64-pixel organic EL display with a wide viewing angle
  • Firmware updates possible using the USB port
  • EIA 1U rack mount size
  • RoHS-compliant product
