STUDIO TECHNOLOGIES Model 5418

Mic/Line Interface

MODEL5418

£3,035.00 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List

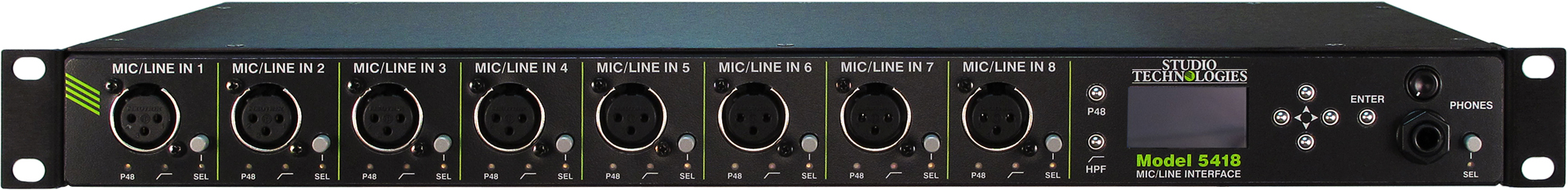

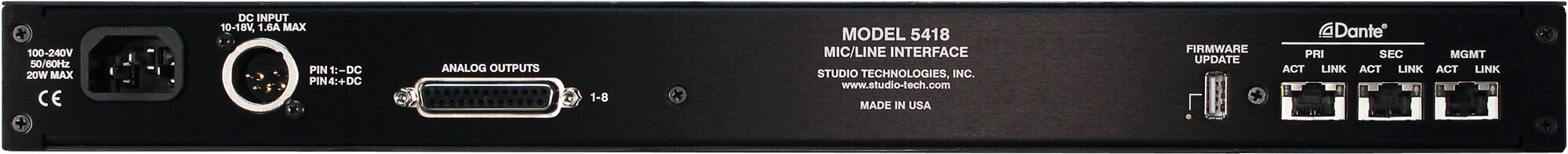

The Model 5418 Mic/Line Interface provides a simple yet high-performance means of interfacing analog signals with applications that utilize Dante® audio-over-Ethernet media networking technology. Eight analog microphone- or line-level sources can be connected to the unit and then output in the digital domain by way of a Dante interface. Eight digital audio signals, which arrive by way of Dante, are converted to analog and then output as balanced line-level signals. Configuration choices also allow other audio signals to be selected as the sources for the analog output channels. A monitor section allows the input and output signals to be selectively observed using meters and a headphone output.

Key Features

  • Dante audio-over-Ethernet technology
  • Eight mic/line inputs to Dante outputs
  • Eight Dante inputs to line-level analog outputs
  • Flexible monitoring with metering and headphone output
  • Three Gigabit Ethernet interfaces
  • Standard connectors
  • Excellent audio quality
  • AC mains and 12 volt DC powering
  • Lightweight enclosure, single rack-space (1U) mounting

(Model5418)

Media

Datasheet (326.69 KB)
