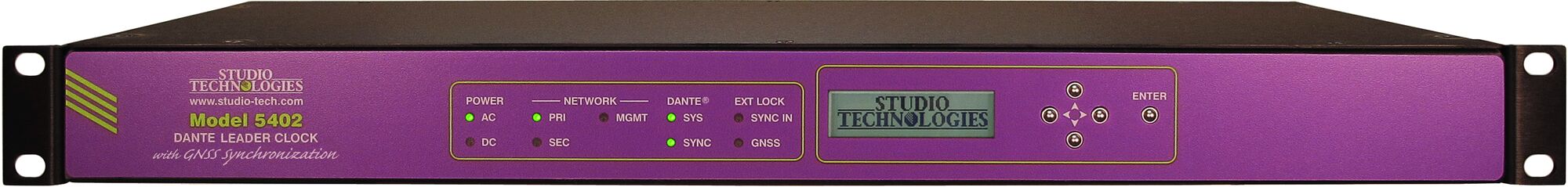

STUDIO TECHNOLOGIES Model 5402

Dante/AES67 Master Clock with GNSS (GPS) Synchronization

MODEL5402

£2,855.00 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List



Introduction
The Model 5402 Dante Leader Clock with GNSS Synchronization provides precise timing signals for applications that utilize the Dante audio-over-IP (AoIP) media networking technology. The unit implements a high-performance IEEE® 1588 precision time protocol (PTP) server, compatible with the requirements of Dante and capable of simultaneously supporting the timing needs of up to hundreds of Dante-compatible devices. As expected, the Model 5402 provides the PTP v1 (IEEE 1588-2002) compatibility that’s required by Dante. In addition, the unit supports PTP v2 (IEEE 1588-2008) for AES67 applications. The unit includes an integrated GNSS (satellite) receiver to allow a precise timing reference to be acquired from the four major constellations: GPS, Galileo, BeiDou, and GLONASS. In addition, a sync input connection allows the Model 5402’s internal oscillator to be synchronized with a variety of external timing and reference signals. A word clock output provides a general-purpose timing reference for use by external devices.

Key Features

  • Integral GNSS (satellite) receiver for nanosecond-level timing accuracy
  • Supports GPS (USA), Galileo (Europe), BeiDou (China), and GLONASS (Russia)
  • Dedicated Leader clock for Dante audio-over-IP, AES67, ST 2110, and DDM applications
  • High-performance IEEE 1588 PTP v1 and v2 servers
  • Allows synchronization of audio between multiple sites
  • Word clock output with selectable rates
  • Eight configurable audio tone signals

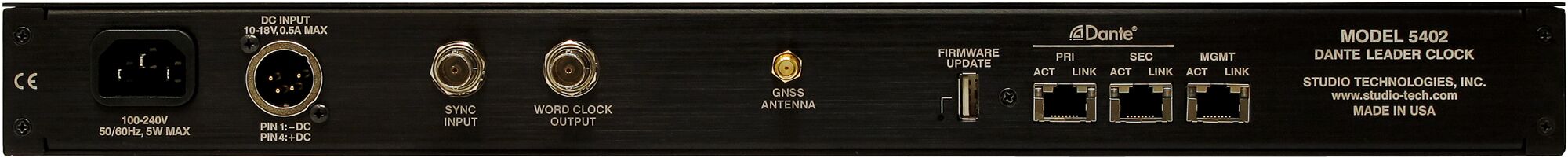

  • Three Gigabit Ethernet interfaces support independent redundant Dante and management networks
  • Webpage management and USB flash drive software updating
  • AC mains and 12 volts DC powering
  • Lightweight enclosure, single rack-space (1U) mounting
