Intercom Station


Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List

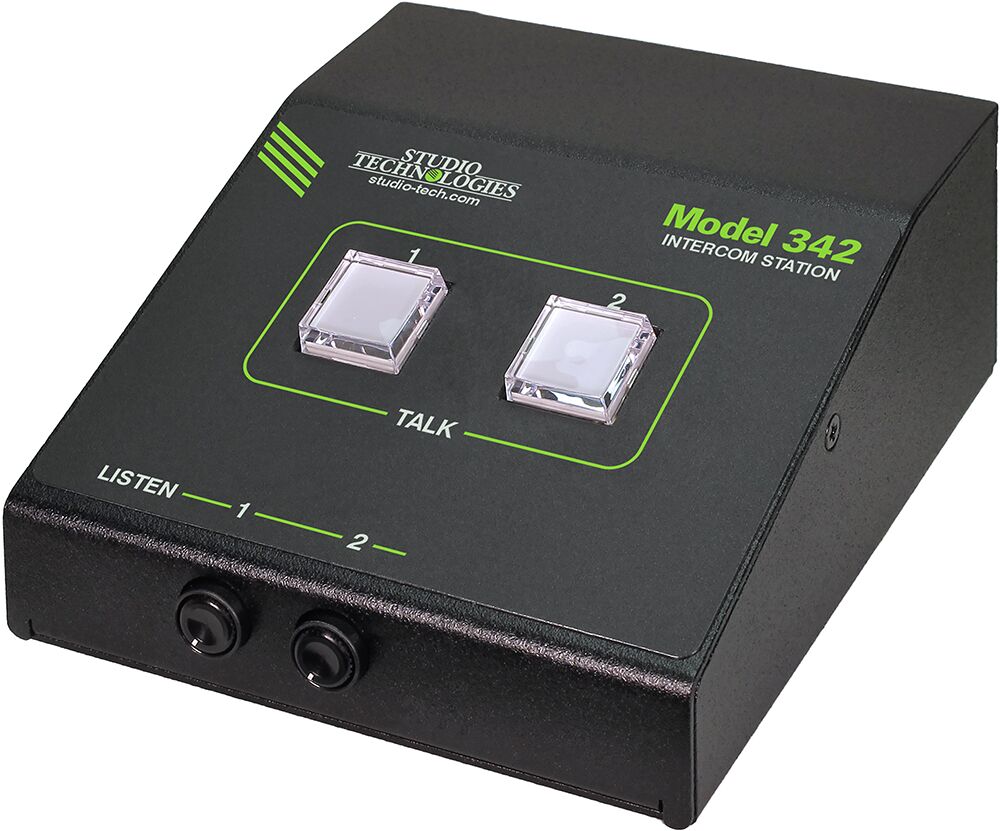

The Model 342 Intercom Station is a compact, desktop device that supports two channels of talk and listen. The unit begins with the features offered by traditional analog party-line (PL) intercom user devices and adds a range of new capabilities, along with the advanced performance and flexibility that Dante® audio-over-Ethernet provides. Over a standard IP network, multiple Model 342 Intercom Station units and other compatible Studio Technologies’ products can be used to create party-line intercom applications with help from an external Dante-enabled audio matrix such as the Studio Technologies’ Model 5421 or Model 5422A Dante Intercom Audio Engines. Alternatively, Model 342 units can be used “point-to-point” or interfaced with Dante-compatible matrix intercom systems.


Key Features

  • Dante audio-over-Ethernet technology
  • Two talk and two listen channels
  • Supports dynamic and electret microphones

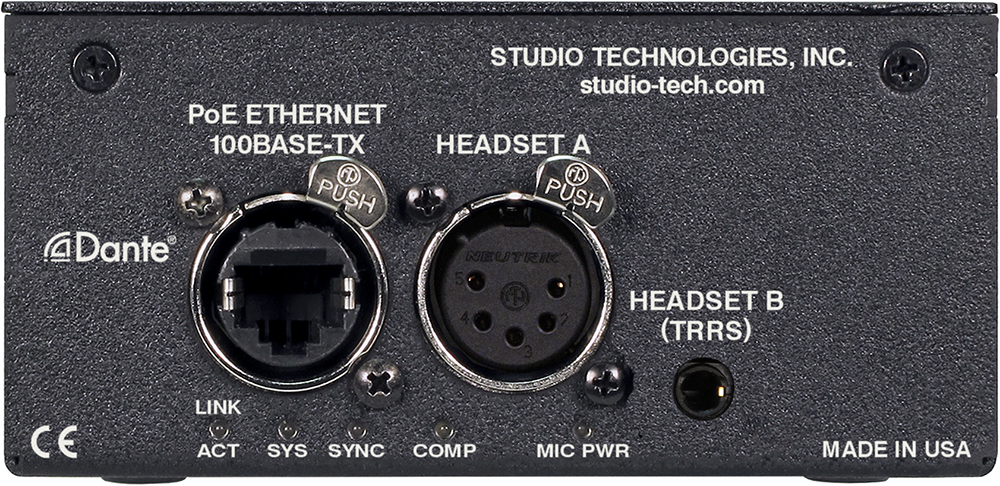

  • 5-pin female XLR headset connector
  • 3.5 mm 4-conductor (TRRS) CTIA-compliant headset connector
  • Call receive and display function
  • Excellent audio quality
  • Uses STcontroller for configuration
  • AES67 and Dante Domain Manager (DDM) support
  • Power-over-Ethernet (PoE) powered


User Guide (869.50 KB)
Data Sheet (570.46 KB)
