STUDIO TECHNOLOGIES Model 234

Dante enabled Announcer’s Console

MODEL234

Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List

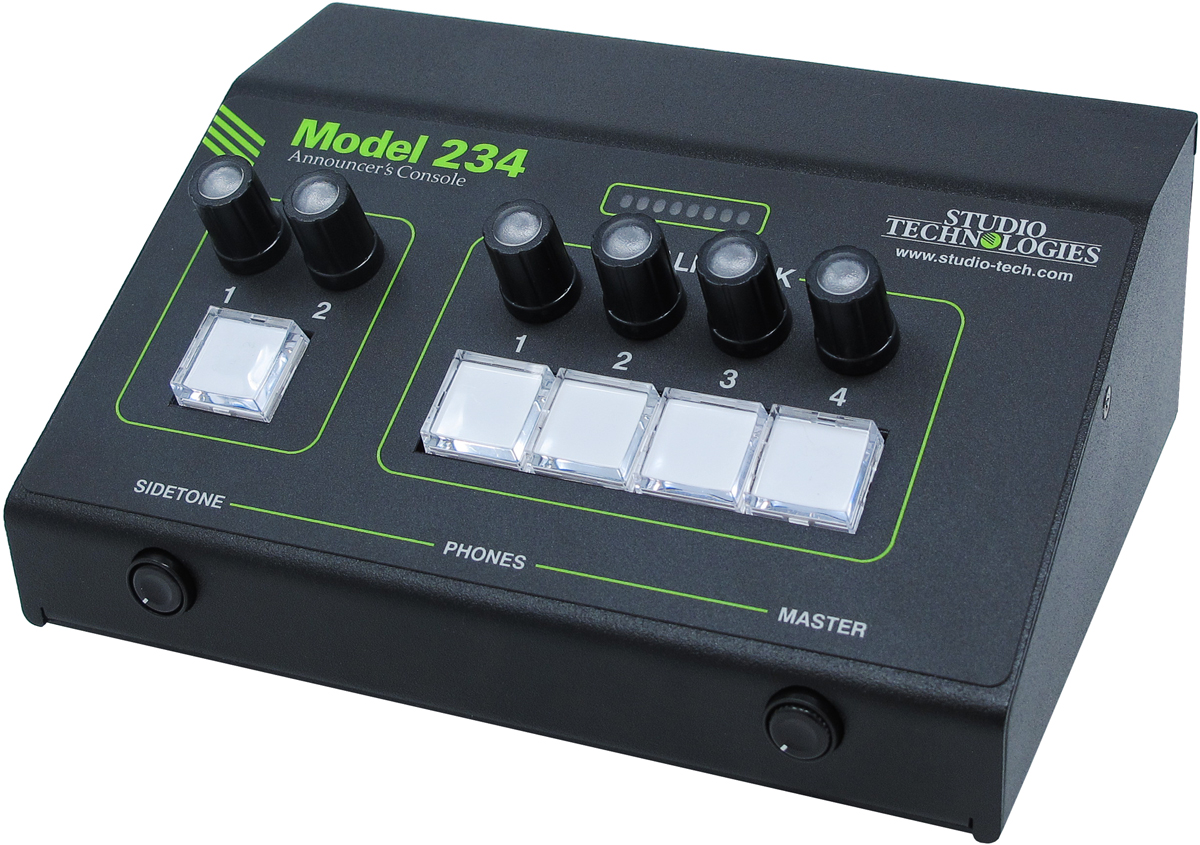

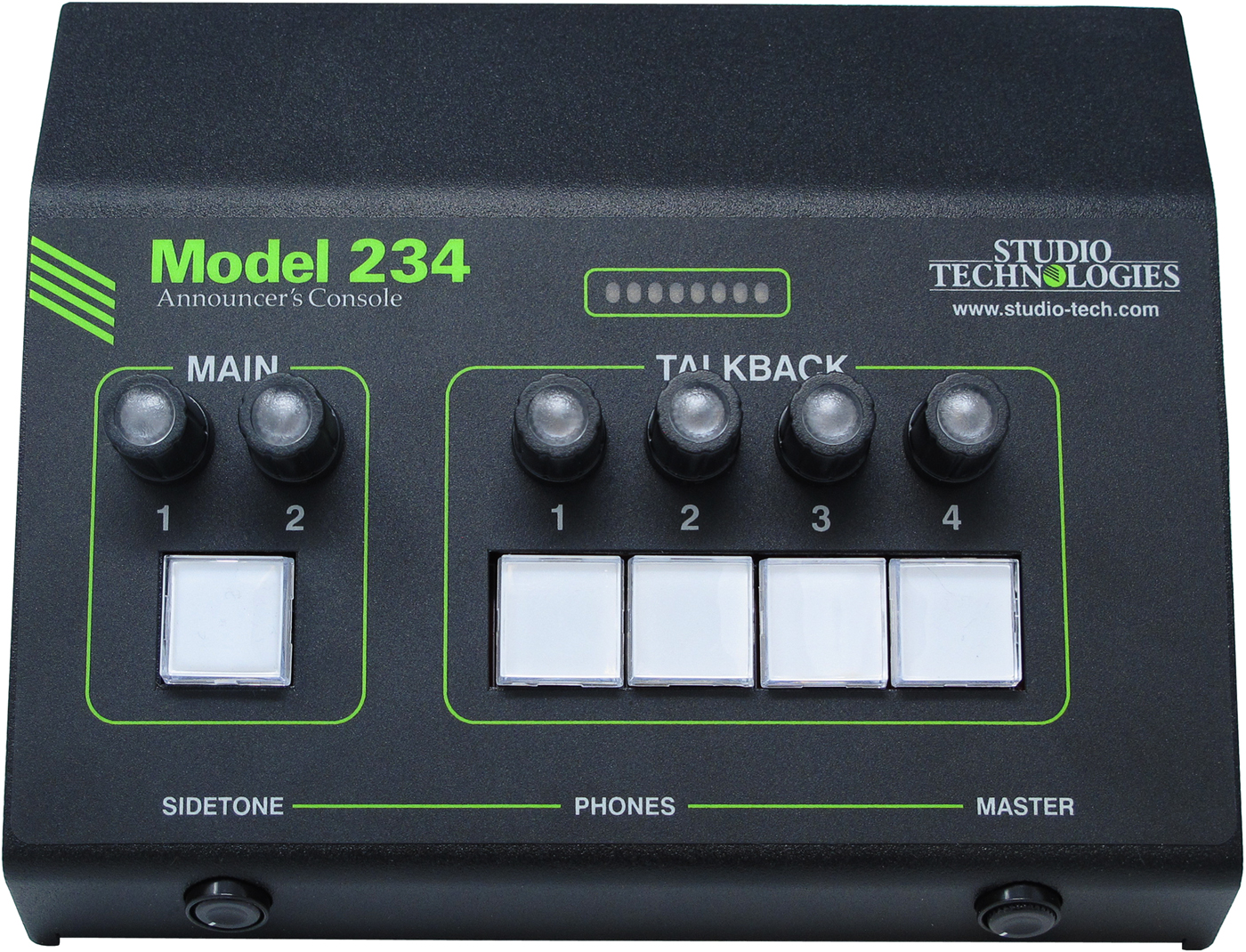

The Model 234 Announcer’s Console is designed for on-air and live-event use by announcers and commentators who will benefit from high-performance microphone and headphone audio resources. Supports Dante audio-over-Etherent media networking technology and includes an extensive set of features. The compact tabletop unit uses the STcontroller software application for configuration. Five pushbutton switches allow the user to control five audio output channels: one main and four talkback. Two gigabit (GbE) Ethernet interfaces allow redundant Dante operation. Powered using a Power-over-Ethernet (PoE) connection or an external source of 12 Vdc.

Key Features

  • Dante audio-over-Ethernet technology
  • Extraordinary audio performance
  • One main, one aux, and four talkback Dante output channels
  • Two main and four talkback Dante input channels
  • Mic input with 10-65 dB adjustable gain and P48 phantom power
  • Passive switched analog mic output
  • 1/4″ headphone output with integrated sidetone

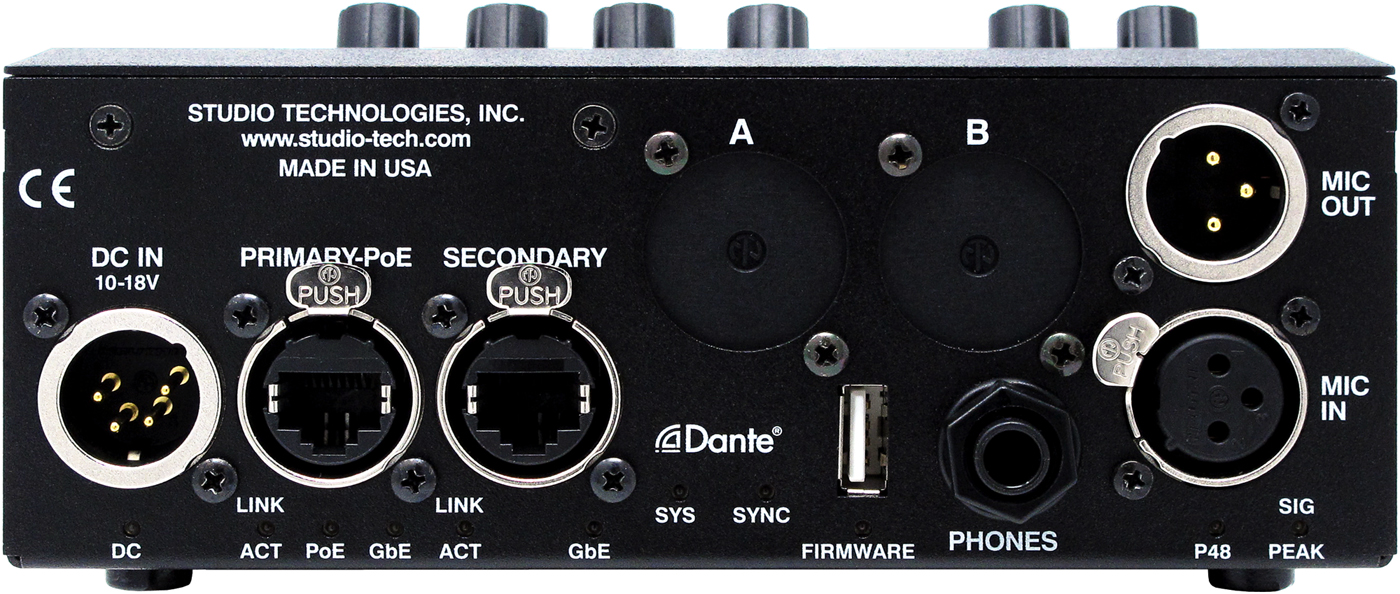

  • Redundant Dante using two GigE interfaces
  • PoE and 12 Vdc powering
  • Ability to create IFB (talent cueing)
  • Designed for REMI/At Home applications
  • Rugged, compact enclosure
  • Configured using STcontroller application
  • AES67 and Dante Domain Manager support
