SONNET SF3 Series AJA PAK Media Pro Card Reader
Duel-slot Media Card Reader for Computers with Thunderbolt 4 or 3 Ports
SON-SF3
Price excludes VAT
Product lists can be submitted to HHB for a packaged quotation
Ingest Simultaneously from Two Cards
Dual Card Slots, Double Productivity

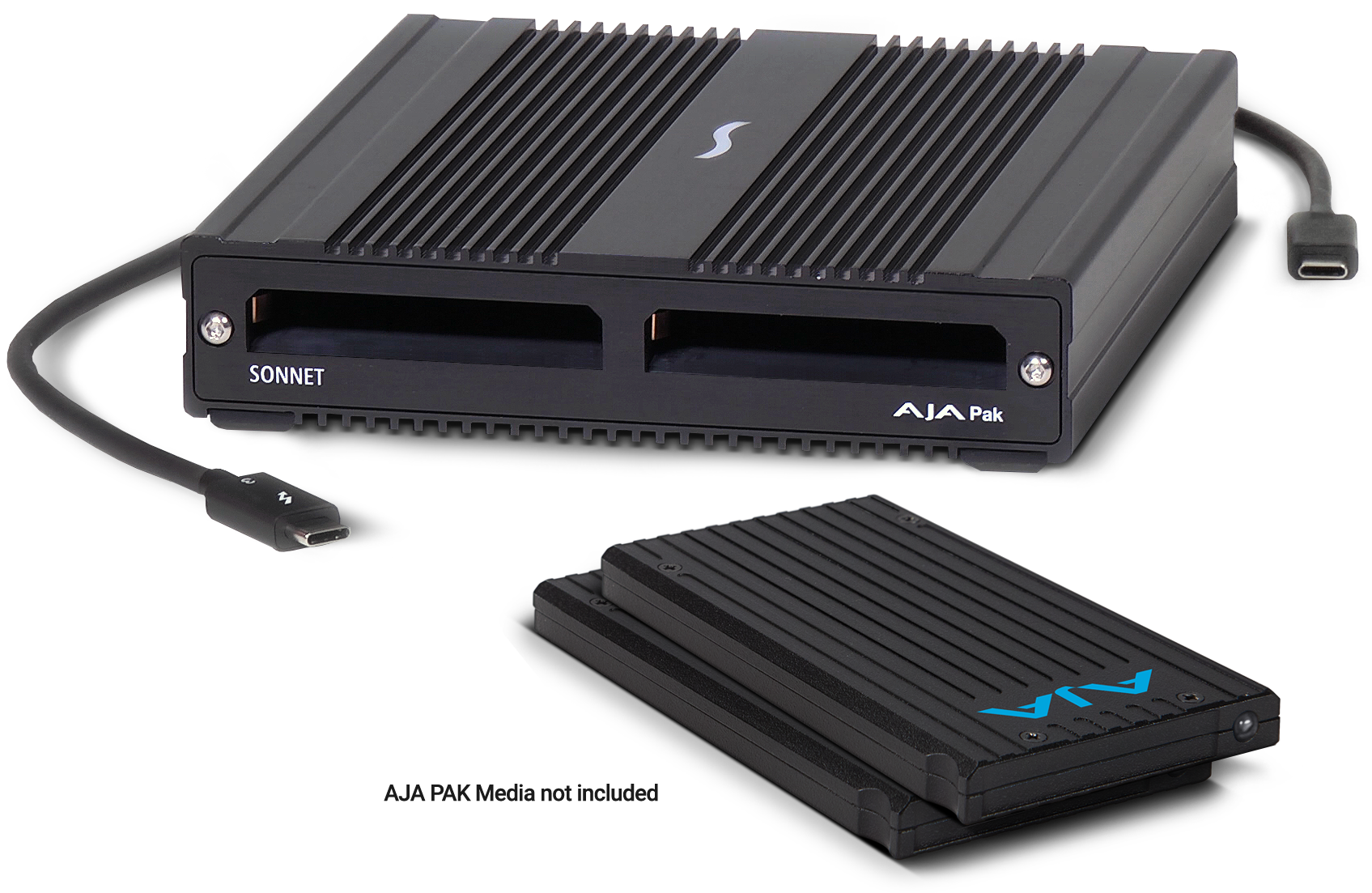

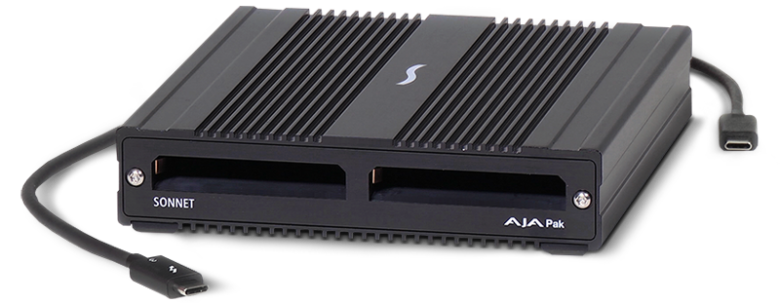

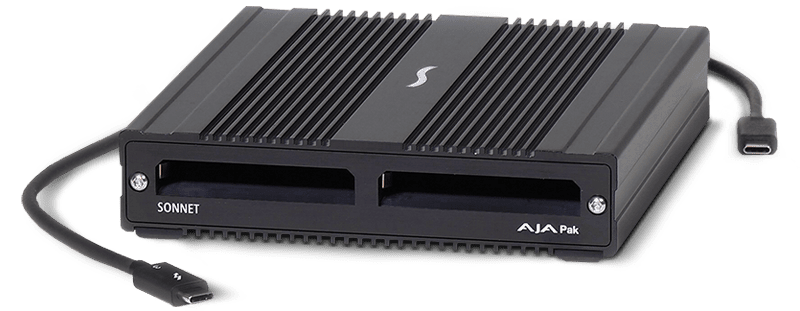

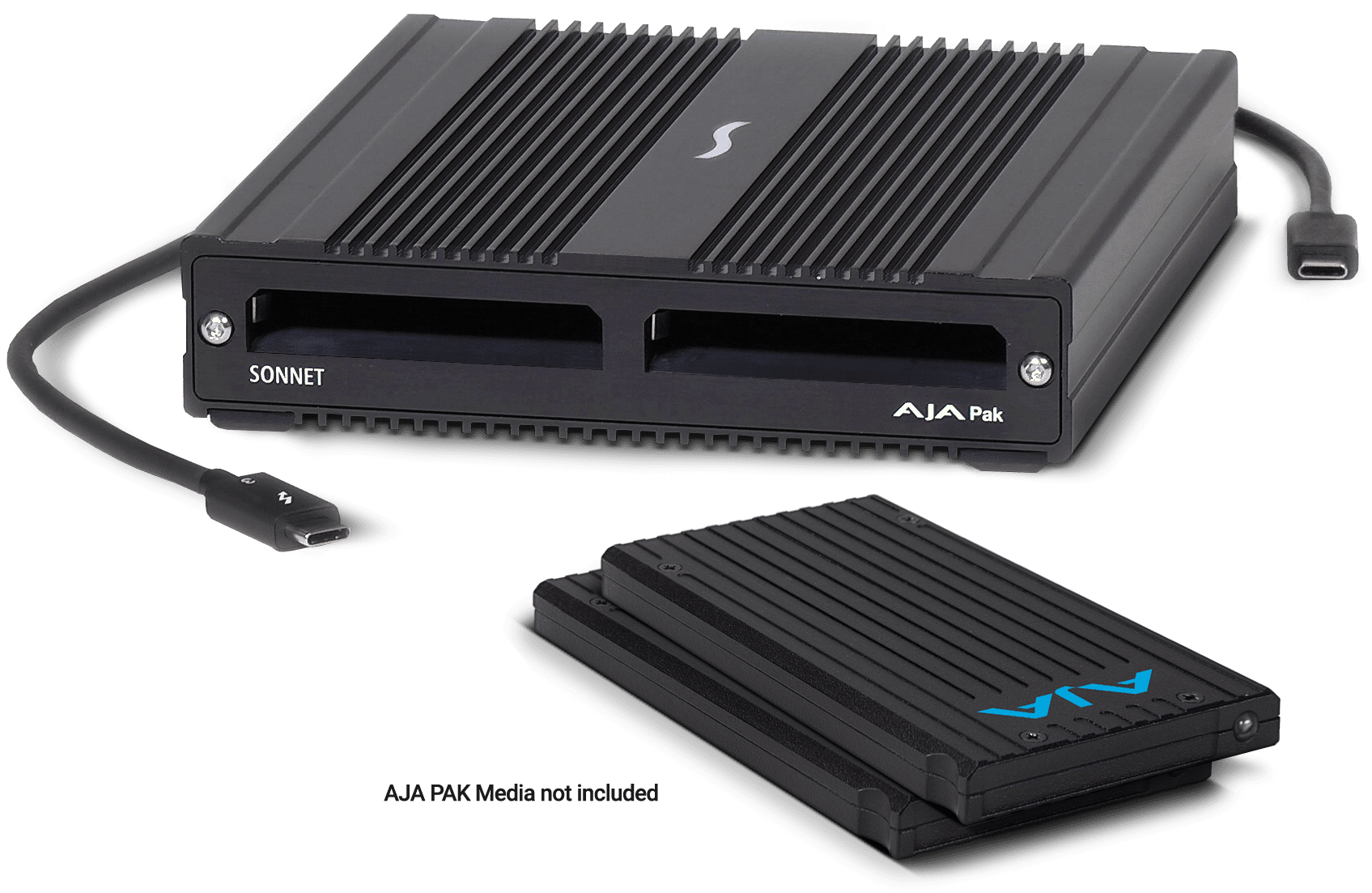

Certified by AJA, the SF3 Series – AJA PAK Media Pro Card Reader ingests media files from PAK Media memory cards at the fastest speeds the cards will support to any computer with Thunderbolt 4 or Thunderbolt 3 ports. And, for even greater efficiency, it can ingest files simultaneously from two cards at high speed — up to 1030 MB/s — to cut your ingest times in half.
Supports AJA PAK Media Cards at Full Speed
Superior Dual-slot Ingest Performance
When your multicam live event production, documentary, news or sports programming is captured to AJA® Video System’s Ki Pro® Ultra 12G 12G-SDI4K/UHD/HD recorder and player, your footage is recorded on ultra-reliable AJA PAK Media SSD cards. With the recorder’s ability to support four channels of simultaneous 1080p at 60 fps recording — or a 4K at 60 fps recording in single-channel mode — those cards fill up fast. The need for a tool that accelerates offloading media files from multiple cards is greater than ever, too. The Sonnet SF3™ Series – AJA PAK Media Pro Card Reader is the perfect tool for the job.
Key Features
- Superior Ingest Performance
- Ingests footage from all AJA PAK media cards at maximum supported speeds.
- Cuts Ingest Times In Half
- Dual card slots enable simultaneous ingest of files from two cards for greater efficiency, up to 1030 MB/s aggregate.
- PCIe 3.0 x4 Thunderbolt Device
- This Thunderbolt 3 device provides four lanes of PCIe 3.0. Thunderbolt 4 would be limited to one lane total. Learn more about Thunderbolt 3 performance benefits over Thunderbolt 4.
- Compact, Rugged, Stackable
- Small and rugged aluminium enclosure for reliable operation; design enables multiple SF3 Series pro card readers to occupy same footprint.
- Rackable
- Threaded mount points enable secure attachment of two readers side-by-side on a rack tray in just 1U of rackspace.
- Two Thunderbolt Ports
- One port connects to computer; second port supports daisy chaining of up to five additional SF3 Series pro card readers.
Compatibility
Mac Compatibility
- Mac (M1, M2, M1 Pro, M1 Max, and M1 Ultra)
- Mac (Intel) with Thunderbolt 3 ports
- Mac (Intel) with a Thunderbolt 2 or Thunderbolt 1 port with an Apple Thunderbolt 3 (USB C) to Thunderbolt 2 Adapter plus a Thunderbolt 2 cable (both sold separately).
- macOS® 10.12.6+
- macOS Ventura compatible
Windows Compatibility
- Windows computer with Thunderbolt 4 or Thunderbolt 3 ports
- Windows 11 and 10
Supported Media
- All AJA PAK Media cards including the PAK 2000, PAK 1000, PAK 512, and PAK 256
Hardware
Part Number
- SF3-2AJAPK
Warranty
- 2-year
Form Factor
- Portable card reader
Bus Interface
- 40Gbps Thunderbolt
External Connectors
- Two PAK Media card slots
- Two Thunderbolt ports
- Power port
Power Adapter
- Universal 60W, 100-240V AC, 50–60 Hz
Operating Temperatures
- 0˚C to 35˚C (32˚F to 95˚F)
Dimensions (WxDxH)
- 5.8 x 6.1 x 1.4 in. (148 x 155 x 36 mm)
Weight
- Reader and Power Adapter: 2.6 lbs. (1.2 kg)
- Complete Package: 3.2 lbs. (1.4 kg)
Compliance
- RoHS 3 (Directive 2015/863)
- IEC62368-1 and IEC62368-2 Safety

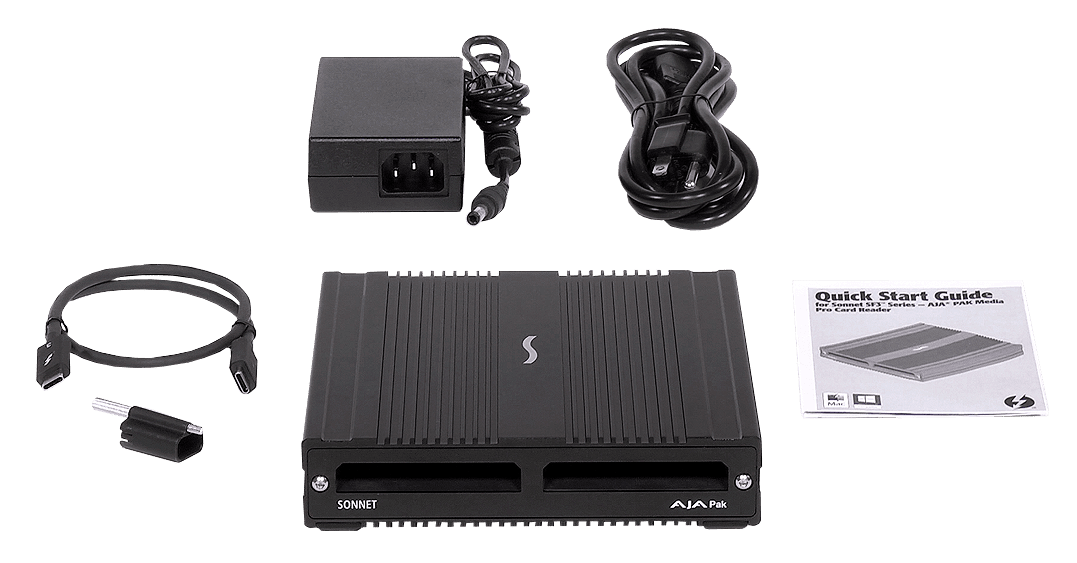

Package Contents
- Sonnet SF3 Series – AJA PAK Media Pro Card Reader
- Power adapter
- Region-specific power cable for US, Australia, Europe, Japan, Switzerland, or UK
- 0.5-meter Thunderbolt cable
- ThunderLok 3 Thunderbolt connector retainer clip(1)
- Documentation
