SONNET McFiver PCIe Card
Multifunction Adapter Card with Dual M.2 NVMe SSD Slots, 10Gb Ethernet, and Two 10Gbps USB-C Ports
SON-G10E-USBC-M2-E
Price excludes VAT
Product lists can be submitted to HHB for a packaged quotation
Add item to Quote List
Add item to Quote List

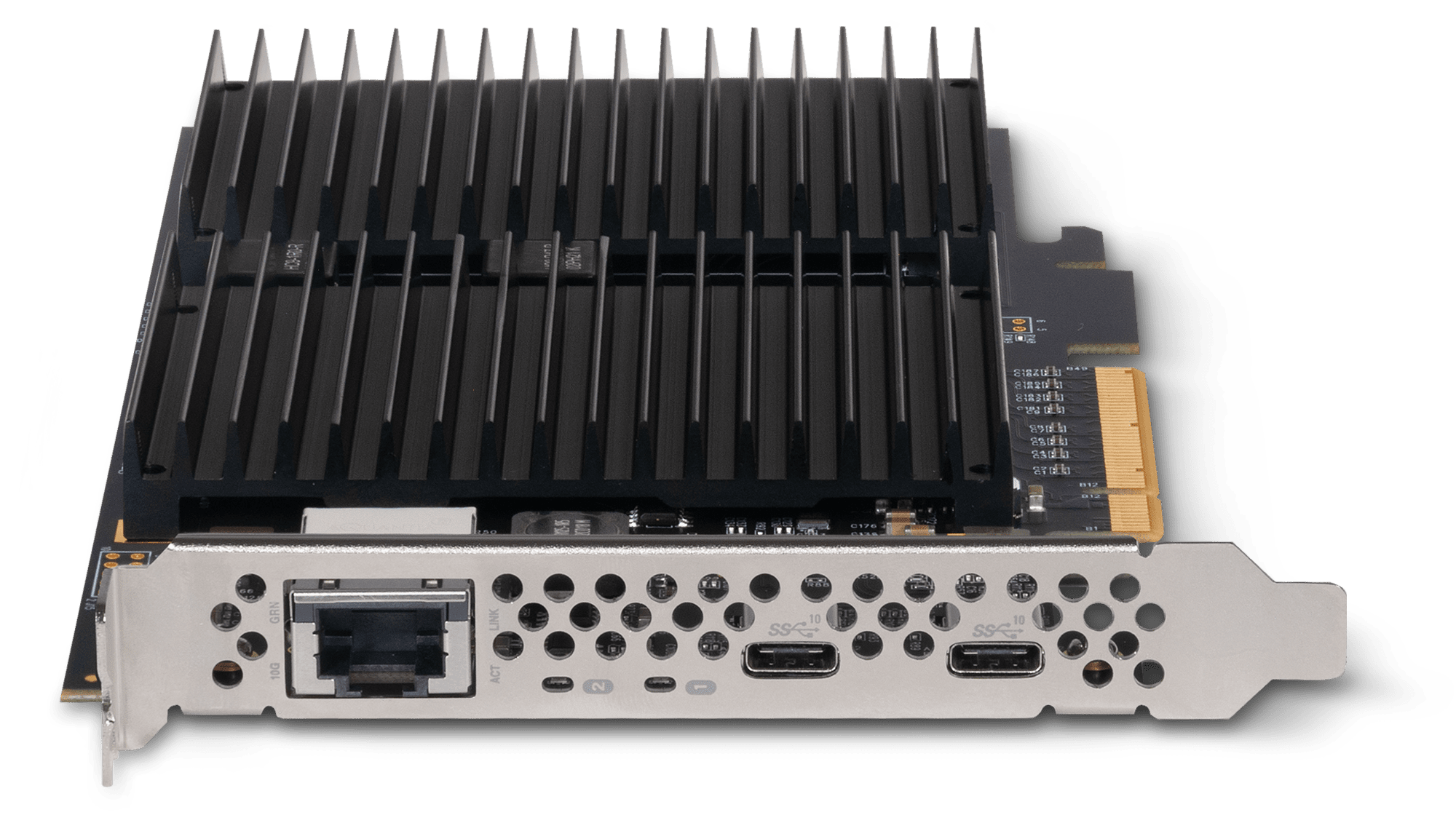

McFiver PCIe Card
Multifunction Adapter Card with Dual M.2 NVMe SSD Slots, 10Gb Ethernet, and Two 10Gbps USB-C Ports
Only multifunction PCIe adapter card with M.2 NVMe storage, 10Gb Ethernet, and 10Gbps USB-C connectivity
Are you looking to add SSD storage, ultra-high-speed Ethernet connectivity, or high-performance USB-C® ports to your setup? Or all three? Even in computers with multiple expansion card slots, installing three adapter cards to get the interfaces you need may not be feasible. Sonnet’s engineers designed a truly unique solution — the McFiver™ PCIe® Card. Mac, Windows, and Linux compatible, this professional, multifunction adapter includes five interfaces — this is the only adapter card to feature dual M.2 NVMe SSD slots, one RJ45 10Gb Ethernet port, and two 10Gbps USB-C ports, fitting them all on a standard full-height PCIe card.

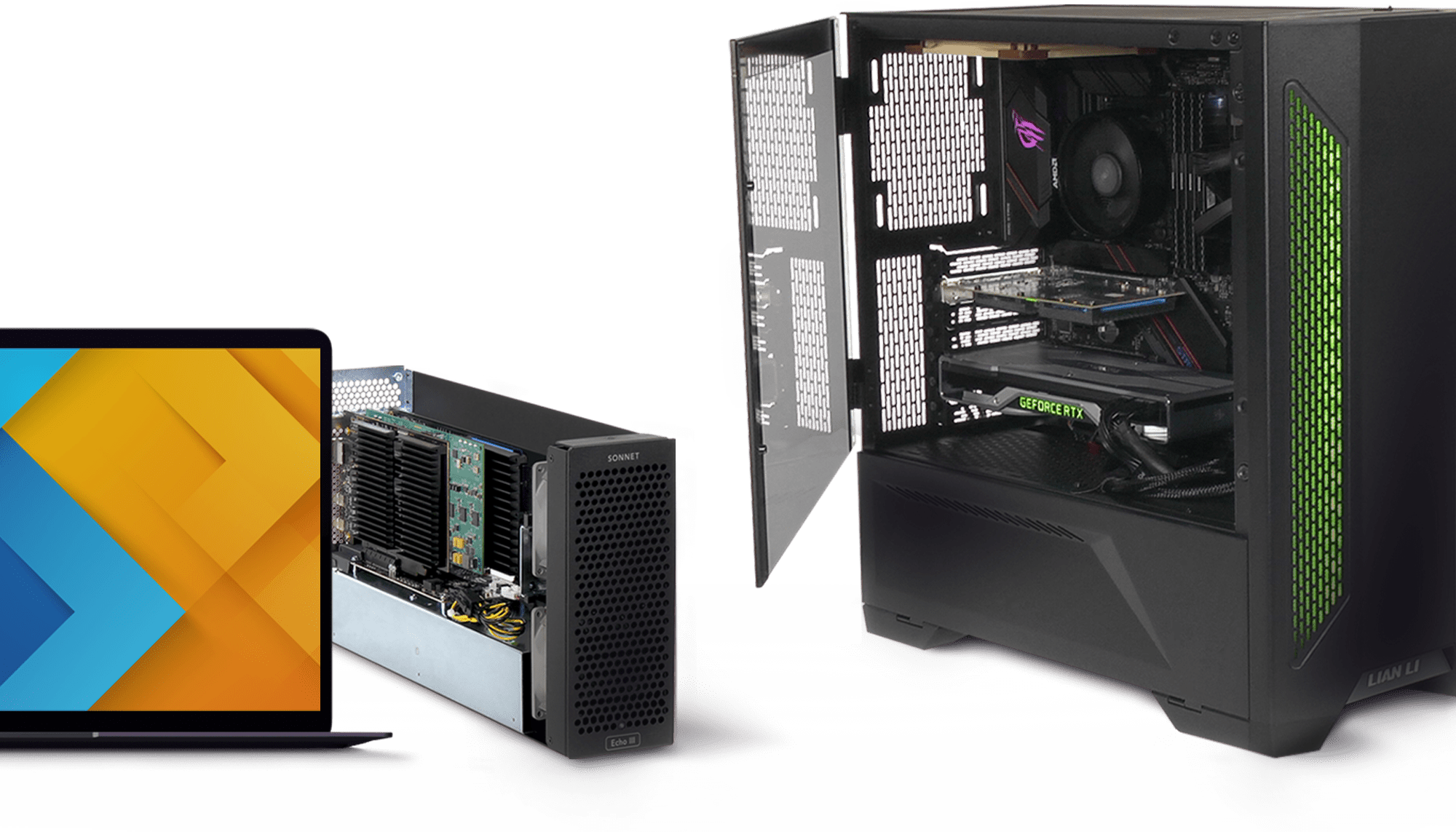

Install the McFiver PCIe Card into an available x8 PCIe 3.0 or 4.0 slot to obtain maximum performance in your computer. No PCIe card slots in your computer, but Thunderbolt ports outside? The McFiver provides great performance, a lot of connectivity, and is ideal for use in an Echo™ Thunderbolt™ to PCIe card expansion system with an available full-height x8 card slot. The combo enables you to take advantage or all that the McFiver has to offer with any compatible Mac (M1, M1 Pro, M1 Max, M1 Ultra, Intel®), Windows, or Linux computer with Thunderbolt ports.
Key Features
Multiple Functions, One Card
- Provides NVMe storage, 10Gb Ethernet, and 10Gbps USB-C connections on one PCIe 3.0 card.
Two High Performance M.2 NVMe SSD Slots
- Add up to 16TB of storage inside (SSDs sold separately); four lanes of PCIe 3.0 bandwidth available to each installed SSD achieve data transfer speeds up to 6600 MB/s (SSDs configured as RAID 0 set).
No SSD Thermal Throttling
- An efficient integrated heat sink enables installed SSDs to maintain high performance during very large file transfer operations.
One 10GBASE-T Ethernet Port
- Adds an RJ45 10GbE port to your computer with PCIe slots or Thunderbolt expansion system.
Supports NBASE-T Ethernet Technology
- 5 Gb/s and 2.5 Gb/s speeds supported over existing Cat 5e (or better) cabling at distances up to 100 meters.
AVB-Compliant Ethernet
- Audio Video Bridging (IEEE802.1Qav, AVB) over Ethernet supported with Mac computers.
Two 10Gbps USB-C Ports
- Adds two USB-C 10Gbps ports to your computer or Thunderbolt to PCIe card expansion system.
Advanced USB 3.2 Gen 2 Controller, Full 10Gbps Per Port
- USB 3.2 controller enables each port to support data transfers at up to 1000 MB/s, even while transferring files from two drives concurrently.
Advanced USB 3.2 Gen 2 Controller, Full 10Gbps Per Port
- USB 3.2 controller enables each port to support data transfers at up to 1000 MB/s, even while transferring files from two drives concurrently.
Powered USB Ports
- 7.5W power is available per USB-C port, supporting bus-powered SSD, SSD RAID, and hub devices.
Protected USB Power Delivery
- Independent port power regulation isolates each one to prevent cross-coupled power glitches that may cause accidental disconnects; resettable device overcurrent fuses protect the card and computer and may be reset by a simple shutdown.
Great for Use in Thunderbolt Expansion Systems
- Use in a Sonnet Echo Thunderbolt expansion system with an available x8 PCIe slot to add NVMe storage, 10Gb Ethernet, and10Gbps USB-C connections to your computer without expansion card slots; see Tech Specs for important details.
