SONNET Echo 11 Thunderbolt 4 HDMI Dock

Thunderbolt 4 Docking Station


Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List


Echo 11 Thunderbolt 4 HDMI Dock

Universal Thunderbolt 4 Dock with Three Thunderbolt 4 Ports, One HDMI Port, 2.5Gb Ethernet, and 8K Display Support
Mac® | Windows® | iPad Pro®
Compatible with Apple® M series Macs; Thunderbolt™ 3 Intel® Macs; Thunderbolt 3 or 4 Windows computers; and M series iPad Pro

Display Options

Thunderbolt Port Connections – Connect up to One 8K or Two 6K Monitors

Depending on your computer’s video capability and whether you’ve connected a monitor to the built-in HDMI port, the Echo dock’s Thunderbolt ports can support one (always 4K, 5K or 6K, up to 8K) monitor, or up to two 6K monitors; see Tech Specs. You can plug in Thunderbolt 3 or USB-C monitors directly, or, you may connect other display types (HDMI, DisplayPort, etc.) by using a Thunderbolt-compatible adapter (sold separately).

Downstream Thunderbolt Ports – Versatile Connectivity for Work and Play

The Echo 11 Thunderbolt 4 HDMI Dock features three Thunderbolt 4 ports; one for connection/power to your computer, plus two for directly connecting Thunderbolt peripheral devices. The Thunderbolt peripheral ports also support USB4 and USB 3 peripherals, and even provide 15W power each to support the most demanding bus-powered Thunderbolt and USB peripherals.

Ideal for Mac and Windows computers, especially laptops with only one or two Thunderbolt ports because you can connect and charge on the same port.

Key Features

One Cable Peripheral Connection

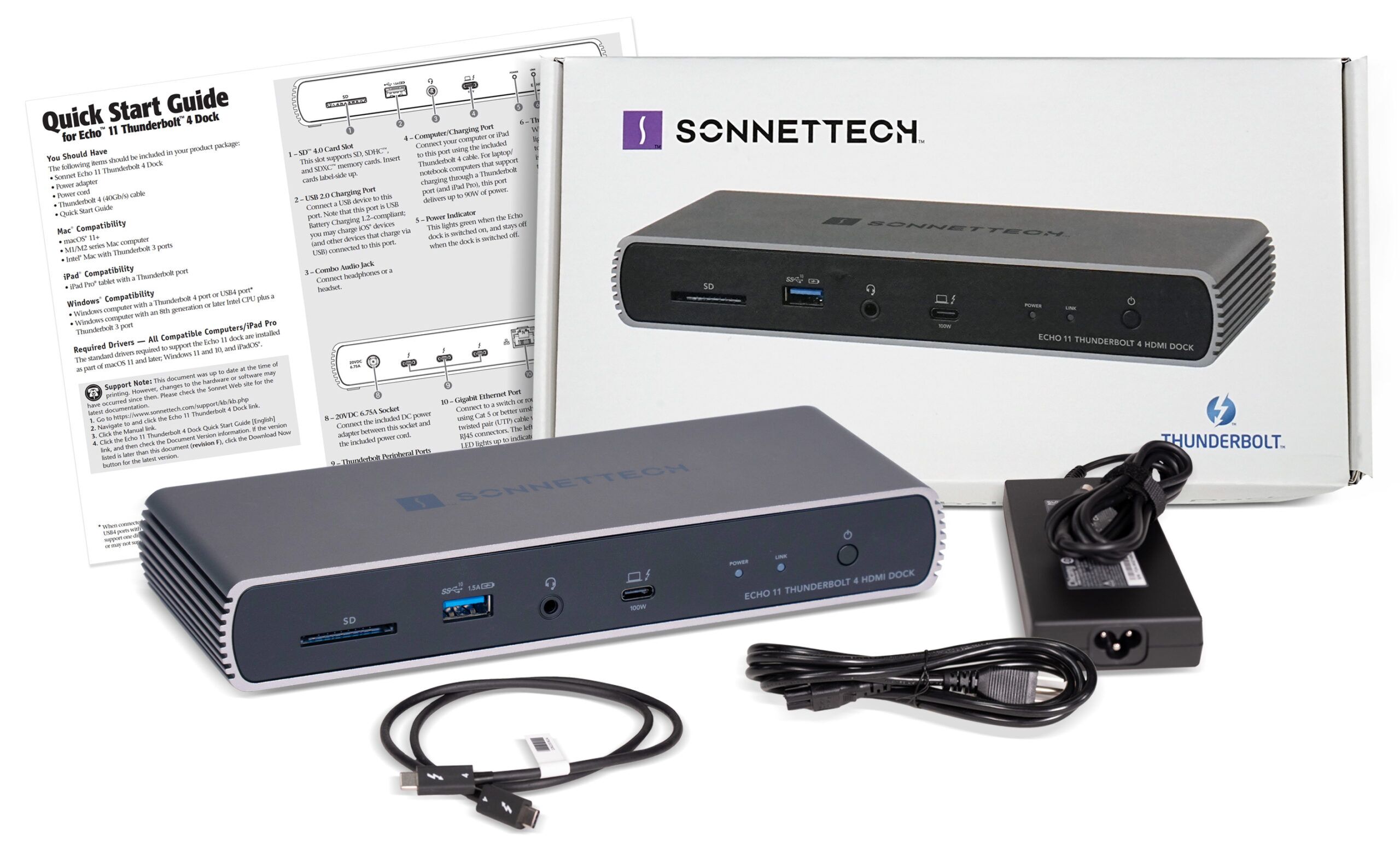

Instant access – plug peripherals into the Echo dock and connect your computer to the dock with the included
Thunderbolt 4 cable.

Eleven Interfaces

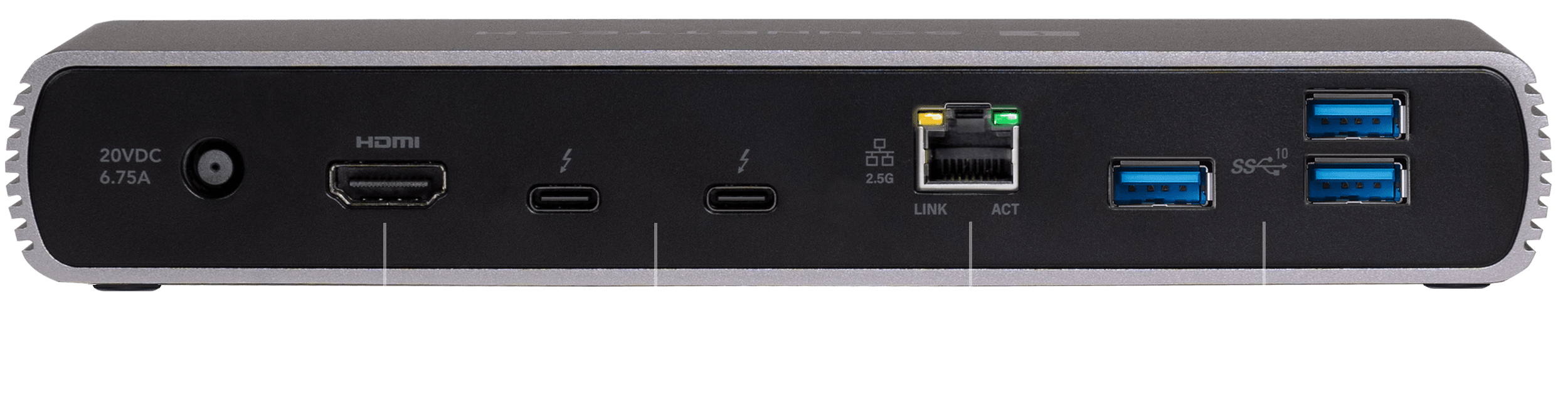

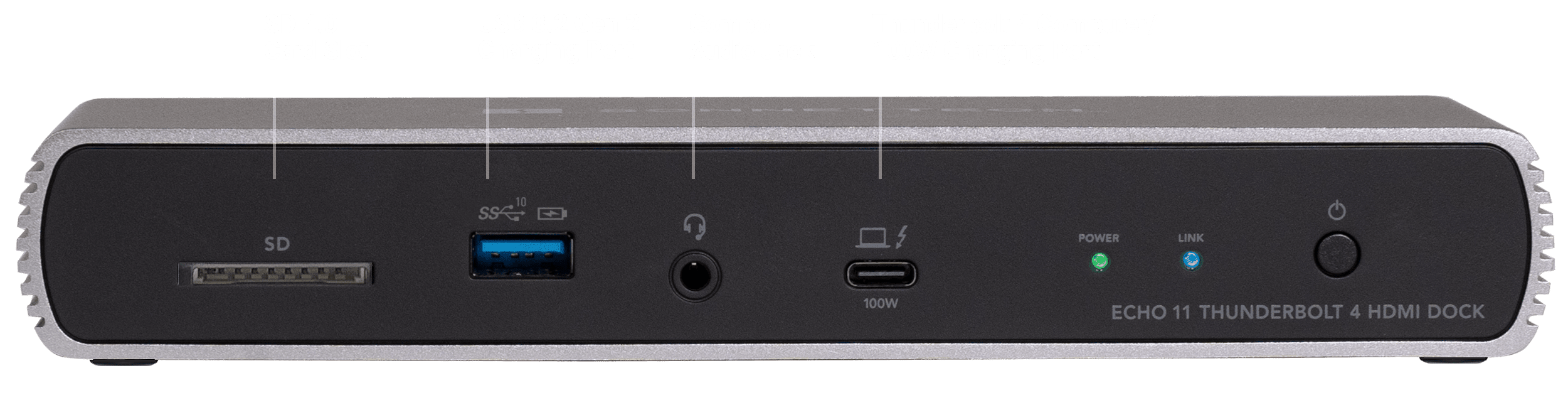

Includes three Thunderbolt 4, four USB 3.2 Gen 2 Type A (including one Type A charging), one RJ45 2.5 Gigabit Ethernet, and one 3.5 mm combo audio ports; one SD 4.0 card slot.

Two Thunderbolt 4 Ports for Peripherals
Connects two Thunderbolt peripherals directly (with support for daisy chaining additional peripherals). Also supports USB4 and USB 3 devices.

Powerful 10Gbps USB Type A Ports
Four USB 3.2 Gen 2 ports provide up to 7.5W of power each, supporting super-fast USB NVMe SSDs at up to full speed.

Built-in HDMI Port
Connect an HDMI directly, no adapter required.Support for 4K, 5K, 6K and 8K @60Hz Displays
Depending on your computer, supports up to two 6K displays or a single 4K, 5K, 6K, or 8K display.

Connect Another Display via Thunderbolt
Connect a Thunderbolt or USB-C display directly. Supports an HDMI or DisplayPort display with a Thunderbolt-compatible adapter (sold separately).

Charge Your Laptop
Provides up to 100W through the included Thunderbolt 4 cable to power and charge your laptop.

Fast SD Card Slot
Compatible with SD™, SDHC™, and SDXC™ memory cards; supports 320 MB/s read speeds with UHS-II SDXC cards. Also supports microSD™ cards when used with adapters.

Apple M Series Compatible
Supports all M1/M2 series Macs.

Intel® Mac and Windows Compatible
Supports Thunderbolt 3 Macs all Thunderbolt 4 Windows computers, and late model Thunderbolt 3 Windows computers.

Apple M series iPad Pro Compatible
Supports all M1/M2 series iPad Pro.


Display Compatibility (106.46 KB)
