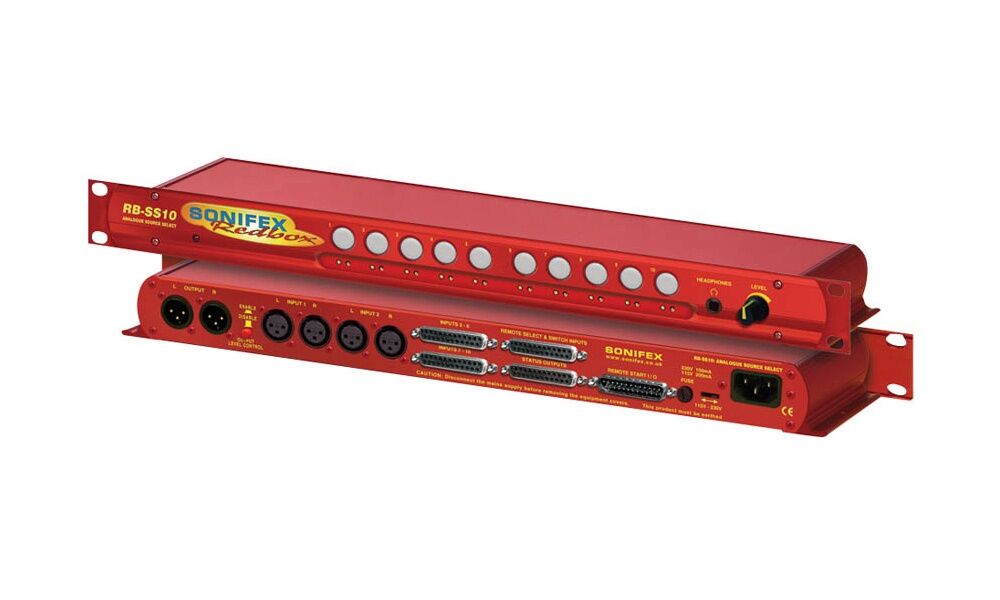

SONIFEX Redbox RB-SS10

10-way stereo analogue source selector/mixer.

RBSS10

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List



Produces a stereo analogue audio output from 10 selectable stereo analogue audio sources and can be used as a mixer, or source selector. Ten illuminated front panel buttons select and indicate channels, with selection and indication also available via a remote connector on the rear panel. Gain for left and right inputs can be individually adjusted using front panel presets and the RB-SS10 will also route a remote signal through the remote connector to the selected input source for starting CD players, etc. Additional features include a headphone socket with level control, main output level control and a designation strip on the front panel.

• 4 x XLR analogue inputs

• 2 x 25-way D-sub input connectors

• 3 x 25-way D-sub remote Inputs and status outputs

• 2 x XLR analogue outputs

• Rear rack-mount kit available (RB-RK3)

• 1U rack-mountable

• Digital version also available (RB-DSS10)
