SONIFEX Redbox RB-OA3

3 Studio on-air switcher.

RB-OA3

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List

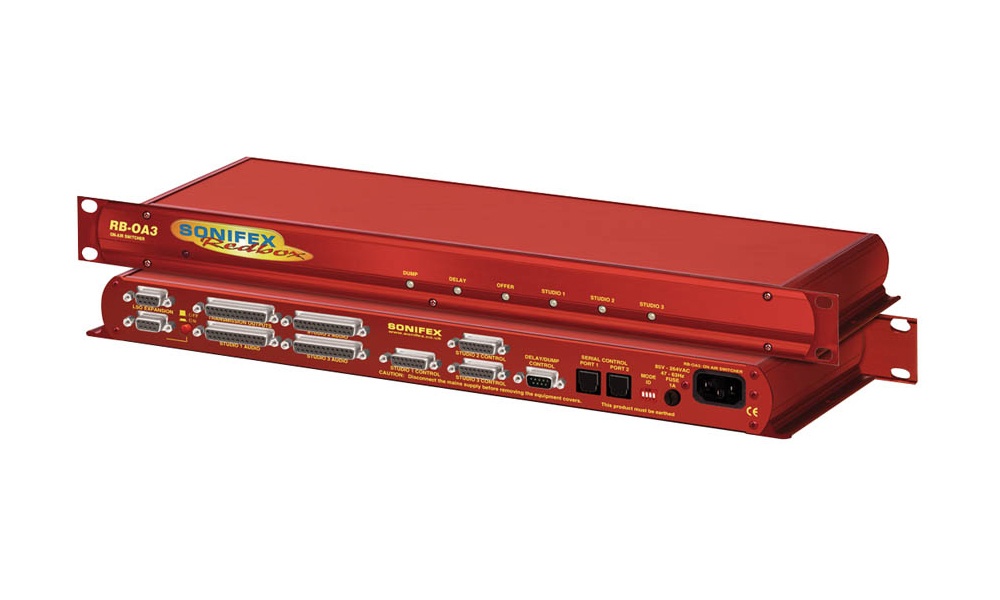

The RB-OA3 is a 1U rack-mount, unity gain on-air switcher, capable of switching three stereo pairs between three studios. Each studio can control the transmission path together with two peripheral paths for equipment such as a codec or hybrid and there is also a “Last studio to offer” bus, allowing for seamless and continuous broadcast from any multi-studio radio network. A “sustain” mode allows for a sustaining system, such as a PC automation system, to control the broadcast. Multiple RB-OA3 units can be connected together to switch more studios or more stereo pairs.

All studios are connected using 25-way D-types for electronically balanced audio signals and control is achieved using 15-way D-types, connecting to an external control unit such as the Sonifex S2-MTBS mixer control panel. A transmission mix connection is included to mix audio which is generic to all studios into the transmission path.

• Studio I/O via 3 x 25-way D-type connectors

• Dump/Delay control via 9-way D-type connector

• Studio control via 3 x 15-way D-type connectors

• LSO expansion port

• Optional Expansion unit cable kit (RB-OA3C) and Remote switch panel (RB-OA3R) also available
