SONIFEX AVN-MPPR

4 Channel Presenter Remote Controller

AVN-MPPR

£1,504.95 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List



The presenter mixer system allows on-air presenters to adjust the audio levels fed to their radio or wired IEM systems, whilst also allowing Sound Control Room operators to adjust the levels remotely. The system consists of 3 types of unit all connected on a common Ravenna Audio over IP (AoIP) network with added audio sources derived from Ravenna based AoIP mixers or input portals. Setup and control can be provided via webpages and/or 3rd party applications. The system uses mono audio throughout.

The 3 units are:
AVN-PX8x4C – a 2U rack mounted Mix Engine Rack.
AVN-MPPR – a small desk, or microphone stand, mounted Presenters’ Remote Unit.
AVN-MPTR – a 1U rack mounted Technicians’ Remote Unit.

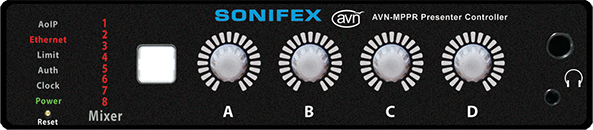

The AVN-MPPR presenter remote provides the mixed audio to the presenter’s earpiece via front panel ¼” & 3.5mm headphone outputs, together with a rear panel XLR output.

The four rotary encoders control the 4 channels of a selected virtual mixer, and give both visual feedback for mix level of the source and actual input level.

Multiple units can simultaneously control any of the 8 virtual mixers in the main mix engine with the VM number displayed on the front panel.

Audio is transported from the mix engine to the remote using AES67 AoIP with a single PoE Neutrik ™ Ethercon network connection.

Units can be mounted on a standard microphone screw thread or under a desktop using optional accessories.
