SOLID STATE LOGIC MADI Dante Bridge

SOLID STATE LOGIC MADI Dante Bridge

Broadcast MADI-Dante interface

MADIDANTE

£0.00 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List

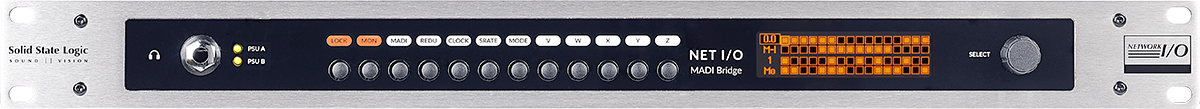

The MADI-Bridge is a broadcast specification bridge between the MADI audio format and Dante, AES67 or ST 2110. It is a bi-directional interface that can deliver 64 channels @ 48kHz (32 channels at 96kHz, 16 channels @ 192kHz). MADI-Bridge ‘Split Mode’ enables 2 x 32 channels @ 96kHz streams to be merged to form a single 64 channel @ 48kHz stream.

MADI-Bridge also features bidirectional sample rate conversion between any asynchronous sample rates, from 44.1kHz to 192kHz. MADI-Bridge features redundant PSU, MADI and IP Network ports and in addition to the inbuilt clock redundancy options in Dante Controller, the MADI-Bridge also includes a pair of redundant sync inputs for use as a self-redundant PTPv1 and/or PTPv2 Grand master clock. 32bit MADI control tunnelling allows a pair of MADI-Bridges to be used to pass audio and user bits (including control data) of a whole MADI stream across a network.

Key features

  • Interface between MADI and IP Audio Networks using Dante

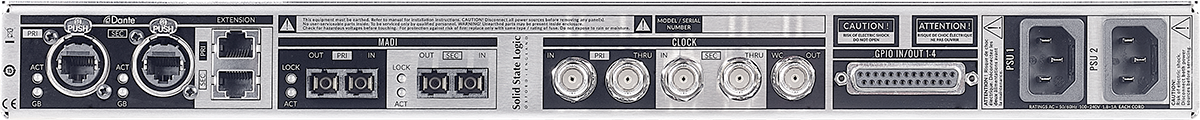

  • Redundant: PSU, MADI ports, Dante Ports, Sync In – Full Broadcast Spec Redundancy
  • Bidirectional sample rate conversion between any asynchronous sample rates, from 44.1kHz to 192kHz
  • 32bit MADI control tunnelling
  • GPIO connectivity – embed tallies across the network
  • Redundant Network extension ports – Local IO at bridge without a switch
  • Word Clock out – Clock a MADI device to the Dante Network
  • Virtual Headphone Patch- 4 location Monitoring and Signal Present Metering to truly replace your patch bay with a digital network while retaining confidence and fault finding tools
  • Lockout Mode – Prevent accidental alteration of front panel settings
