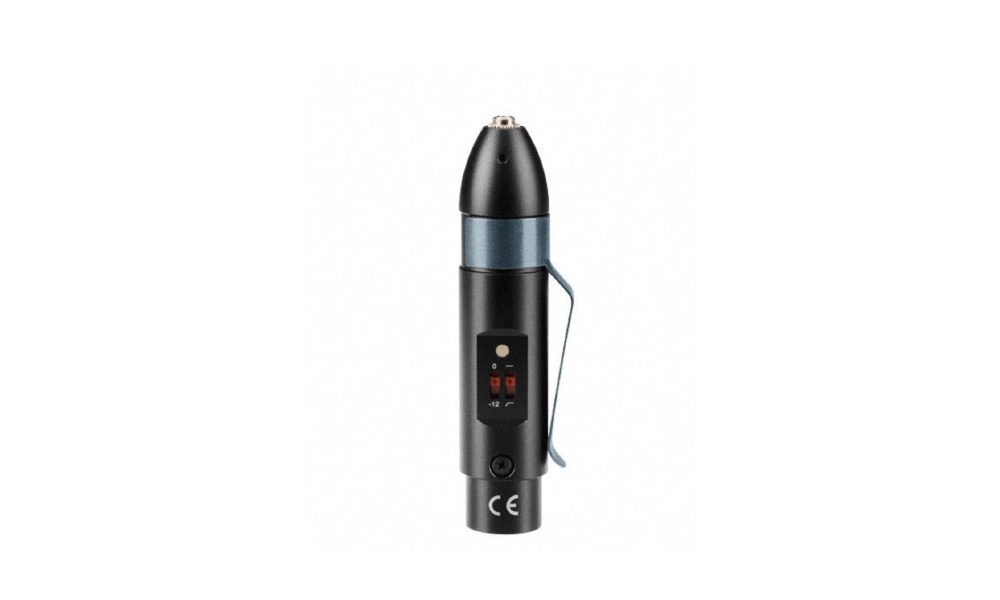

SENNHEISER MZA 900 P

Phantom power adaptor

MZA900P

£149.17 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List



Phantom power adaptor to connect pre-polarized condenser microphones with a 3.5mm jack plug to microphone inputs. Lockable 3.5mm jack socket. Robust chassis. Ideal if using both wired and wireless applications.





Overview
The MZA 900 P phantom power adaptor is used to connect pre-polarized condenser microphones with a 3.5mm jack plug to microphone inputs with 10 – 52 V phantom powering (P12 – P48). The connected microphone is supplied via the adaptor.

The phantom power adaptor is available in two different versions:

  • MZA 900 P with lockable 3.5 mm jack socket (as evolution wireless)
  • MZA 900 P-4 with lockable 3-pin special socket

The adaptor is also a quick and flexible solution if a microphone is to be used for both wired and wireless applications. One and the same microphone can be used together with the MZA 900 P(-4) for wired applications (e.g. in the studio) or with a transmitter of the evolution series for wireless applications.

The MZA 900 P can also be used as a cable tester for XLR microphone cables.

Features

  • Robust metall chassis
  • Switchable gain (0/-12dB)
  • Switchable roll-off filter (125 Hz (-3 dB), 12 dB/oct)
  • Two-colour control LED (phantom power, audio peak)
  • Input 3,5mm stereo jack socket, lockable
  • Output XLR-3M

What’s in the box?

  • MZA 900 P with belt clip
  • Instructions for use
  • Warranty certificate

Media

Manual (411.88 KB)
