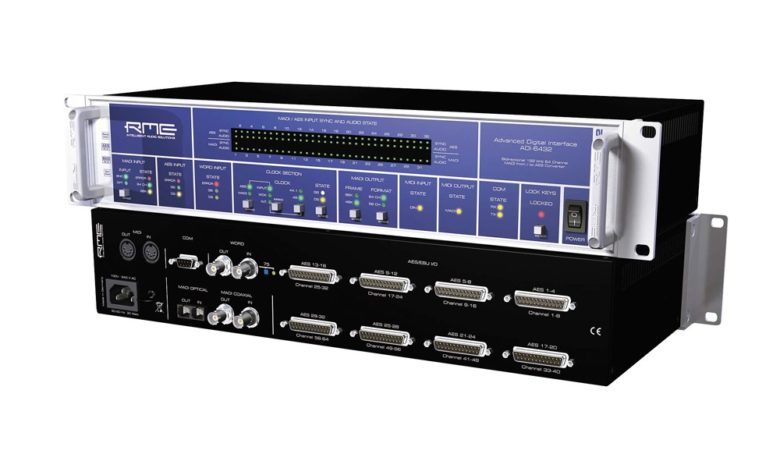

The ADI-6432 offers 64 channels of format conversion from MADI to AES and vice versa. MADI handles 64 channels of 24-bit audio at sampling frequencies up to 48kHz, 32 channels up to 96kHz, and 16 channels up to 192kHz. All channels are transferred across a single cable, either coaxial (BNC) or optical network cable. In both cases, cable lengths of more than 100 metres can be used. The AES/EBU channels are provided as 32 AES/EBU inputs and outputs via D-sub connectors. The ADI-6432 accepts 56 channels and 64 channels as well as 96k frame at its input, and can be set to generate those formats at its output.

• Balanced D-sub AES/EBU I/O

• BNC and optical MADI I/O

• Word clock I/O

• MIDI I/O

• 2U rack-mountable

• 75OHM version also available
