PRISM SOUND Atlas

8-channel USB recording interface

ATLAS

£2,995.00 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List

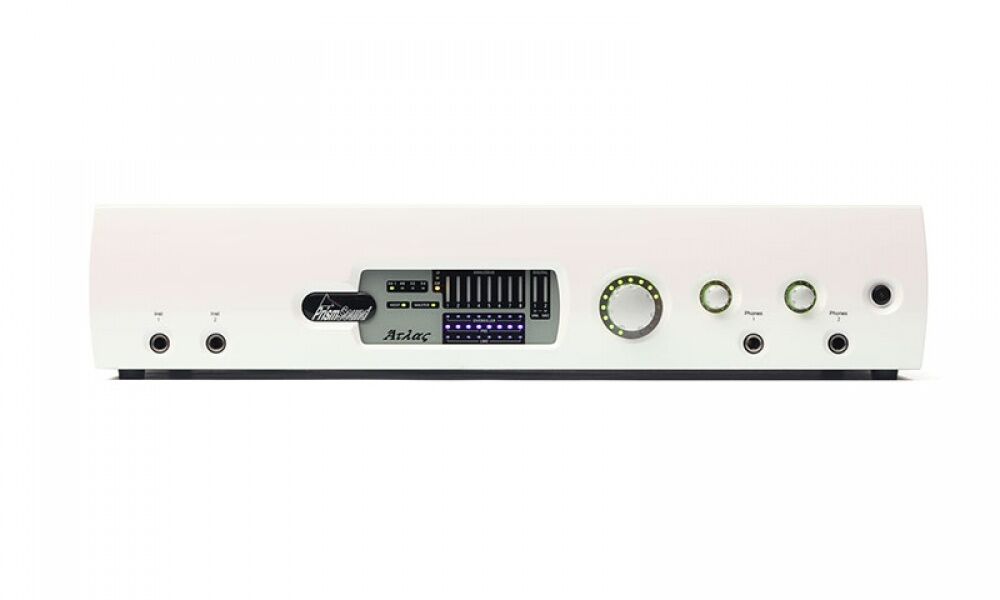

The Prism Sound Atlas is a multichannel, USB interface designed for multi-tracking applications. Atlas features 8 low noise, low distortion mic preamps (the same as found on the Orpheus, Lyra and Titan interfaces) with the added benefits of Prism Sound A/D and D/A conversion. A 20dB pad is located on each of the Atlas mic channels to accommodate high sound pressure level (SPL). Switchable phantom power, 20dB pad, Overkiller soft limiter, phase, high-pass and RIAA filter is also offered on all mic inputs

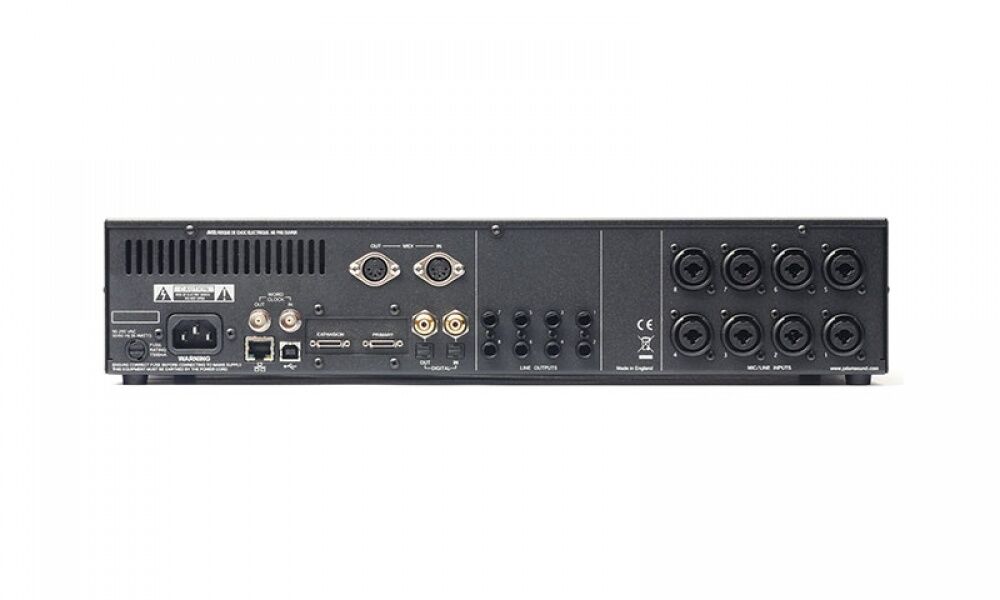

A comprehensive range of connections are provided, including analogue and instrument inputs, ADA, MIDI, Wordclock I/O and an Ethernet port and USB 2.0 host. Atlas includes the MDIO expansion slot for optional Pro Tools HDX, AES and potentially other digital cards), making it well suited in project and for multi-track studio for recording, mixing, stereo and stem mastering.



• 8x analogue I/O (switchable mic/line/instrument modes)
• 8x high-grade mic pres
• 2x high impedance, instrument inputs
• 192kHz, 24bit
• MDIO slot for optional digital interfaces (initially Pro Tools HDX and AES)
• Built-in stereo SPDIF/AES I/O
• 2x Headphone outputs (sharing a single stereo bus)
• Prism Sound CleverClox clocking technology
• Mac OS X and Windows compatible
