OPTOCORE X6R-INTERCOM Range

16 channels of Intercom and data

X6R-INTERCOM

£0.00 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List

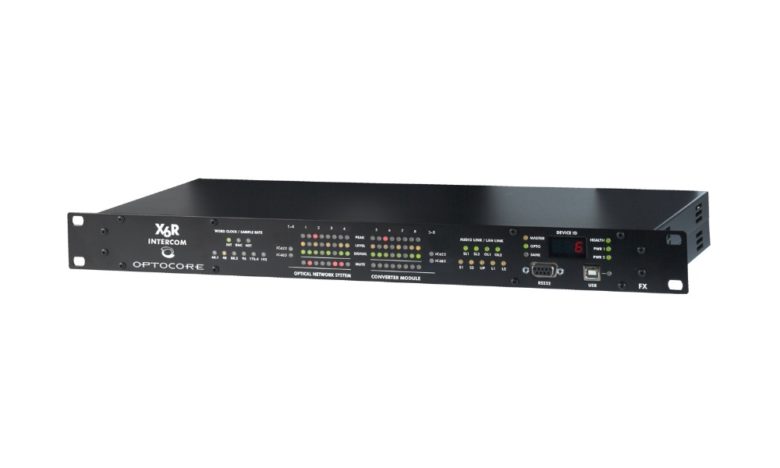

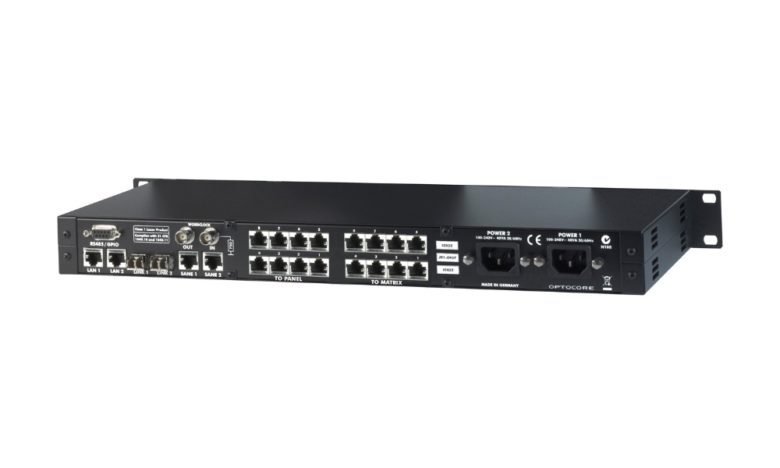

X6R-FX-INTERCOM for Clear-Com/RTS/AES/EBU was developed to enable direct interfacing between the Optocore open transmission and Clear-Com/RTS or e.g. Riedel AES/EBU based Matrix platforms allowing for a flexible audio based intercom transport solution. It is now possible to take advantage of all Optocore system features and benefits when communicating through an Eclipse Matrix intercom system. Based on the well known X6R-FX series architecture, with 1U height, the device is equipped with standard RJ45 interfaces, making cabling simple and cost-efficient. X6R-FX-INTERCOM offers not only intercom interfacing, but can be used also as analog audio Line-In and Line-Out device.

Optocore’s intercom device is seamlessly integrated into the OPTOCORE® OPTICAL DIGITAL NETWORK SYSTEM. Intercom messages and control data from Clear-Com/RTS/Riedel user panel or matrix are sent transparently through the optical network. Each single intercom channel can be routed to every device in the network by the OPTOCORE CONTROL software.



  • 8 x 4-wire or AES3 intercom ports
  • Integration with Clear-Com, RTS or AES/EBU intercom
  • Matrix or Panel pinout
  • 32-bit transparent transport and routing
  • 2 x fibre SFP ports for redundant Optocore ring
  • 2 x SANE ports for MADI Cat5, X6R/V3R/Y3R-TP or LAN connectivity
  • 4 x RS485/422
  • 2 x LAN
  • Word Clock I/O
  • Dual redundant PSU
Variations include:
  • XR6-INTERCOM-IC422
  • XR6-INTERCOM-IC485
  • XR6-INTERCOM-IC444
  • XR6-INTERCOM-ICAES
INTERCOM ports Hardware standard: IC422/IC485: FCC-RJ45 8 x inputs, 8 x outputs

Analog Line Input
Impedance 10 kΩ
Maximum input level +18 dBu
SNR 115 dB (A-weighted)
THD+N @ -1dBFS ≥ 100 dB
Analog Line Output Impedance 45 Ω
Maximum input level +18 dBu
SNR 115 dB (A-weighted)
THD+N @ -1dBFS ≥ 98 dB
Serial I/O
– IC422 EIA / TIA – 422
– IC485 EIA / TIA – 485
SANE, LAN ports Convention
Audio
TIA – 568A/B, Optocore 200 Mbit/s
LAN TIA – 568A/B, IEEE – 802.3 10/100 Mbit/s
Auxiliary Ports Convention EIA / TIA-485
Data channels
Digital control data 4
Data rate Up to 10 Mbps
Impedance Termination 330 Ω / Source ≤ 10 Ω
Word clock Hardware standard 75 Ω / BNC
Data rate
Depending on used sample rate 44,1 / 48 / 88,2 / 96 / 176,4 / 192 kHz
Impedance Output 75 Ω
Input 1k / 75 Ω software switch
Optical Link Input, Output, Dual – Full bandwidth
Connection
Duplex LC
Protocol Optocore
Transmission Full duplex
Data rate 2 x 2 Gbps
Optical wave guide cable lengths Multimode fibre 50 µm ≤ 700 m
Monomode fibre 9 µm ≤ 70 km (on request)
Word clock Hardware standard 75 Ω / BNC
Data rate
44.1 kHz – 192 kHz
Power supply 2 (optional) independent power supplies with function check and automatic switch-over
Type
Switch-mode, universal input
Mains voltage 100…240VAC, 50/60Hz, 25VA-typ, 32VA-peak
Remote Control
RS232 / USB / Ethernet
Control Interface to PC
Dimensions 1 RU / 19″
W x H x D
483 x 44 x 200mm 19.0 x 1.73 x 7.87 inch
Weight 2.7 kg 6.0 lbs
