Optocore V3R - 8 Channel Devices
Analog to AES/EBU converter.
V3R
£0.00 Price excludes VAT
Product lists can be submitted to HHB for a packaged quotation
Add item to Quote List
Add item to Quote List

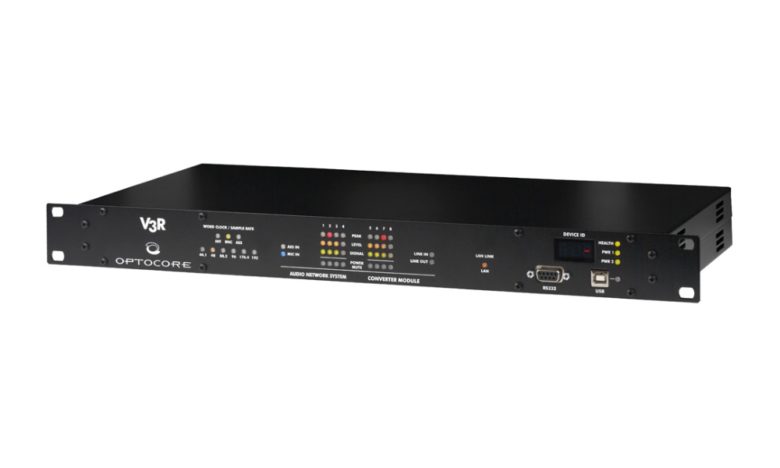

The V3R is a converter unit with a high degree of flexibility concerning the I/O configuration. Three different card types enable to customise the card slot on the rear of the device for the conversion of analogue signals – 8 microphone inputs, 8 line inputs or 8 line outputs – to AES/EBU. The V3R is especially designed for rack mounted applications and permanent installation. All cards are equipped with Euroblock connectors. These common installation interfaces provide a simple and cost-efficient connection to other audio equipment.
Variations include:
- V3R-8MI
- V3R-8LI
- V3R-8LO
KEYFACTS:
- Standalone AES3 / Analog converter
- Single analog board – 8 x Analog channels
- Analog board selection: 8 Mic IN, 8 Line IN, 8 Line OUT
- Any 2-board combination available
- Word Clock I/O
- Dual redundant PSU
Analog Audio Mic Inputs ADC
Impedance, Gain / steps 4.5kΩ -4 dB to +66dB 1 dB steps
Maximum input level @ -4 dB Gain +22 dBu @ +66 dB Gain -48 dBu
SNR @ -4 dB Gain 122.5 dB(A) @ +66 dB Gain 81.5 dB(A)
THD+N @ -1dBFS @ -4 dB Gain ≤ -102 dB @ +40 dB Gain ≤ -102 dB
Impedance, Gain / steps 4.5kΩ -4 dB to +66dB 1 dB steps
Maximum input level @ -4 dB Gain +22 dBu @ +66 dB Gain -48 dBu
SNR @ -4 dB Gain 122.5 dB(A) @ +66 dB Gain 81.5 dB(A)
THD+N @ -1dBFS @ -4 dB Gain ≤ -102 dB @ +40 dB Gain ≤ -102 dB
Analog Audio Line Inputs ADC
Impedance, Gain / steps 10kΩ -9, -4, 0 +10 dB 4 steps
Maximum input level @ -9 dB Gain +27 dBu @ +10 dB Gain +8 dBu
SNR @ -9 dB Gain 127.5 dB(A) @ +10 dB Gain 108 dB(A)
THD+N @ -1 dBFS @ -9 dB Gain ≤ -102 dB @ +10 dB Gain ≤ -102 dB
Impedance, Gain / steps 10kΩ -9, -4, 0 +10 dB 4 steps
Maximum input level @ -9 dB Gain +27 dBu @ +10 dB Gain +8 dBu
SNR @ -9 dB Gain 127.5 dB(A) @ +10 dB Gain 108 dB(A)
THD+N @ -1 dBFS @ -9 dB Gain ≤ -102 dB @ +10 dB Gain ≤ -102 dB
Analog Audio Line Outputs DAC
Impedance, Gain / steps 22Ω +4, 0, -6 ,-10 dB 4 steps
Maximum output level @ +4 dB Gain +22 dBu @ -10 dB Gain +8 dBu
SNR @ +4 dB Gain 123 dB(A) @ -10 dB Gain 108 dB(A)
THD+N @ 0 dBFS @ +4 dB Gain ≤ -100 dB @ -10 dB Gain ≤ -103 dB
Impedance, Gain / steps 22Ω +4, 0, -6 ,-10 dB 4 steps
Maximum output level @ +4 dB Gain +22 dBu @ -10 dB Gain +8 dBu
SNR @ +4 dB Gain 123 dB(A) @ -10 dB Gain 108 dB(A)
THD+N @ 0 dBFS @ +4 dB Gain ≤ -100 dB @ -10 dB Gain ≤ -103 dB
Word clock Hardware standard 75 Ω / BNC
Data rate 44.1 kHz – 192 kHz
Data rate 44.1 kHz – 192 kHz
Power supply 2 (optional) independent power supplies with function check and automatic switch-over
Type Switch-mode, universal input
Mains voltage 100…240VAC, 50/60Hz, 25VA-typ, 32VA-peak
Type Switch-mode, universal input
Mains voltage 100…240VAC, 50/60Hz, 25VA-typ, 32VA-peak
Remote Control
RS232 / USB / Ethernet Control Interfaces to PC
RS232 / USB / Ethernet Control Interfaces to PC
Dimensions 1 RU / 19″
W x H x D 483 x 44 x 200mm 19.0 x 1.73 x 7.87 inch
Weight 2.7 kg 6.0 lbs
W x H x D 483 x 44 x 200mm 19.0 x 1.73 x 7.87 inch
Weight 2.7 kg 6.0 lbs
