Wordclock Distribution Amplifier and Audio Clock Converter
£755.46 Price excludes VAT
Product lists can be submitted to HHB for a packaged quotation

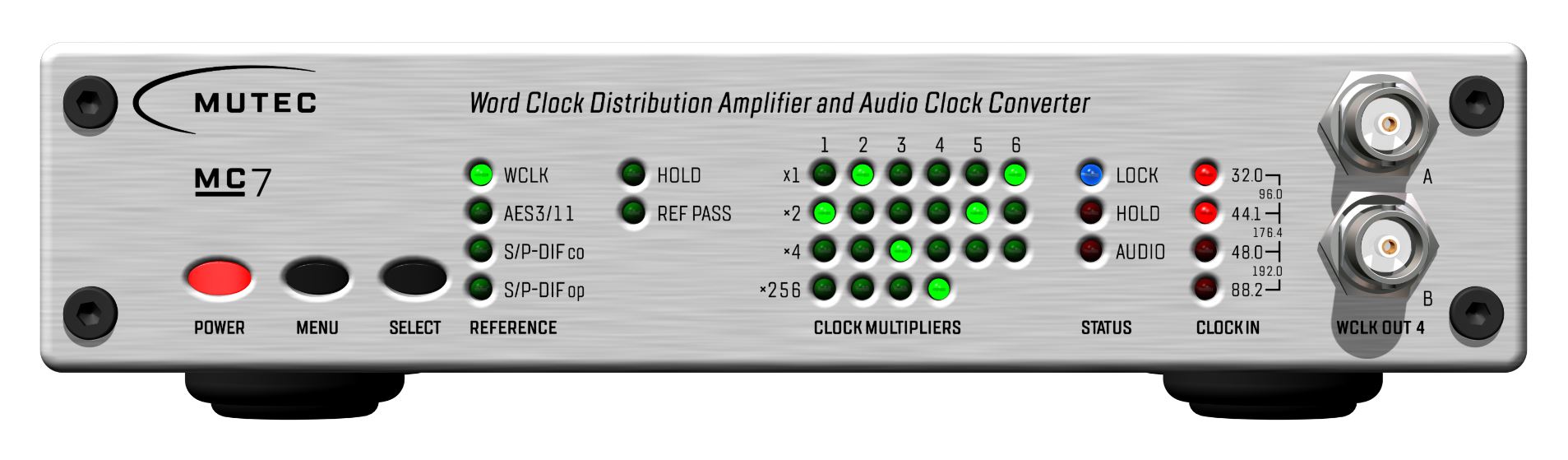

The MUTEC MC-7 is a very flexible, high-performance Word Clock distribution amplifier and audio clock converter. In today’s studio environments, clock distribution is more significant as mostly assumed. Actually, a clock signal does more than only synchronizing digital audio devices, it does also influence the acoustical result of your recordings. Due to this, the MC-7 is designed to cover both aspects with excellence!
The MC-7 converts and distributes Word Clock, AES3/11 and S/P-DIF signals. An incoming reference signal passes latest audiophil-optimized PLL circuits, to be distributed and output as low-jitter, high-quality clock signal, regardless of the condition of the reference signal. Thereby, connected audio devices will benefit from the MC-7’s signal regeneration abilities, which improve their sound qualities audibly.
Furthermore, the MC-7 functions as multiplier for the clock rate of the incoming reference signal. Therefore, the outputs can be individually multiplied by x1, x2, x4, which leads to a very wide range of possible output Word Clock rates from 32.0 kHz up to 768.0 kHz. This enables e.g. the contemporaneous output of an incoming 48.0 kHz reference signal with 96.0 kHz, 192.0 kHz and as so-called Digidesign Super Clock. A special ‘Pass’ functionality secures the availability of an incoming digital audio signal for further use.
For live or broadcast use, a special ‘Hold’ functionality can be activated additionally with every operation mode. This function guarantees interruption-free output signal supply in cases when the external reference is of insufficient quality or lost completely. Thus, the MC-7 is predestined to be used as centralized clock stabilizer and distributor, where reliable signal availability is a must.
Due to its synchronisation features and connection flexibility, the MC-7 offers unique possibilities to provide interconnections between digital audio devices on a reliable and useful basis. This all makes MC-7 for sure an unique and outstanding digital audio clock distributor and converter enabling to handle every clocking issue in your studio set-up with ease!
- Distributes and converts Word Clock, AES3/11 and S/PDIF
- Extracts and re-generates clock signals out of digital audio signals
- Improves audio quality of connected devices
- Handles clock rates from 32.0 kHz up to 192.0 kHz/768.0 kHz
- upports so-called Super Clocks for older Digidesign ProTools systems

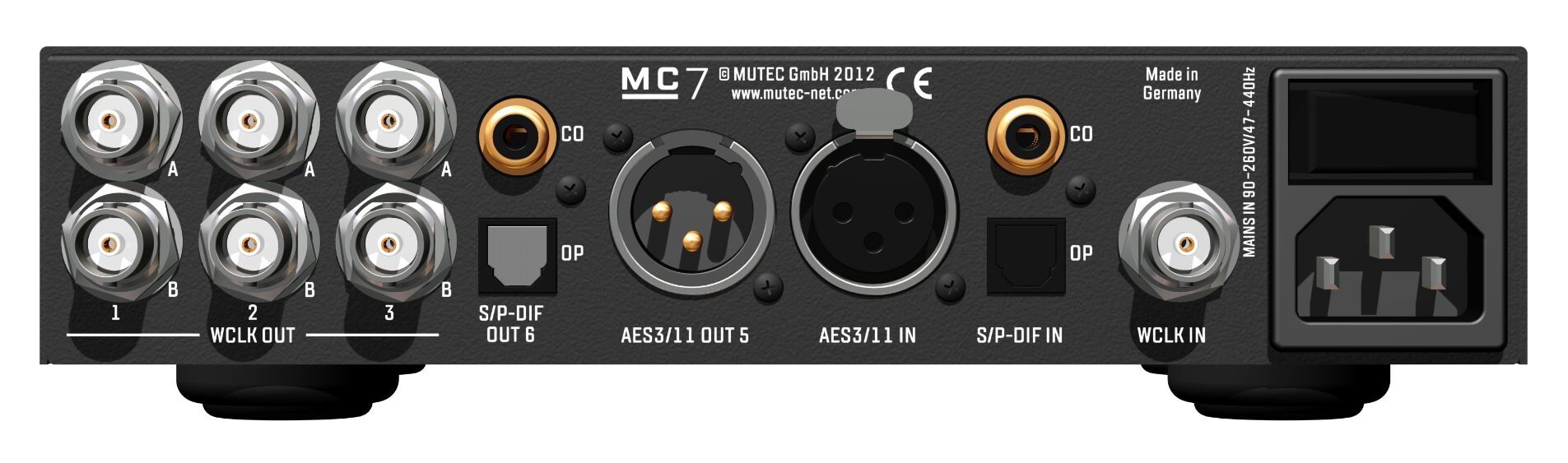

- Offers 4 inputs and 11 outputs in total
- Protects from reference signal dropouts
- Supplies interruption-free output signals
- AES11, Grade 1, internal reference clock (0.5 ppm)
- Compact case size fits in every studio set-up
- Built-in international power supply
