MOGAMI World standard four channel analogue multicore (2931)

Compact, superflexible multicore cable

2931-0

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List

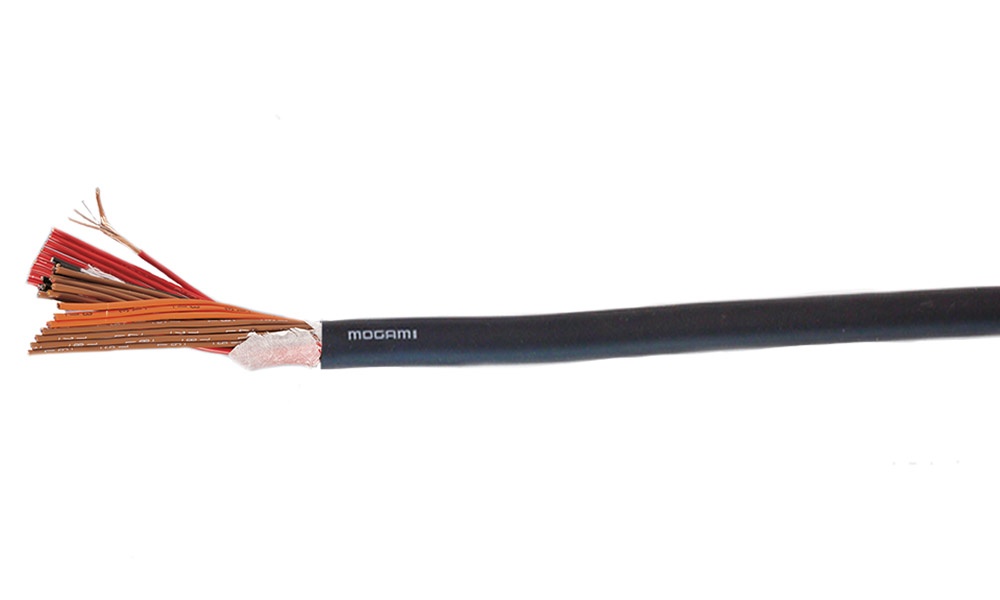

Mogami multicore are compact, super flexible, easy to use with superb electrical and mechanical characteristics Featuring individually twisted shielded pairs and available in 2 to 48 channels, Mogami Multicore cables are rugged, flexible and easy to handle, even at temperatures down to -20°C. The cable’s jacket and inner conductors provide printed channel numbers, in addition to a colour coding system used for identification by standard resistor colour code. Each channel has a drain wire and served (spiral) bare copper shield. XLPE (Cross Linked Polyethylene) insulation provides superb electrical characteristics and will not melt or shrink back during soldering.

Overall diameter 7.5mm. Available in black only.



• Available in 2 to 48 channels



• Temperatures down to -20°C



• Colour coding



• XLPE insulation

Media

Datasheet (142.08 KB)
