MOGAMI Large Conductor Size Console Cable (2806)

Console internal/external wiring cable

2806-8

£286.00 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List

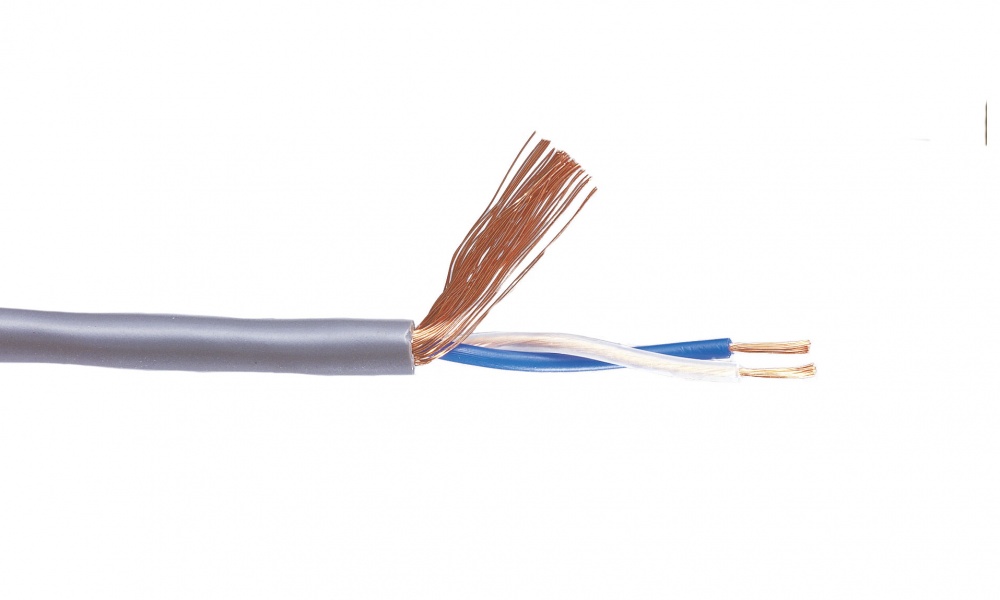

The Mogami 2806 is a Large conductor size console cable that has been designed for permanent installations and where a larger conductor size is required, such as long runs.The Mogami 2806 features the #22AWG conductor version technically similar to#2549 Neglex balanced Mic Cable, but with a smaller outer jacket.

The copper conductors of Mogami console cables are made of from Neglex OFC, hence we can recommend any of these for the highest quality wiring of mixing consoles, rack panels and studio equipment. All cables feature XLPE ( Cross-Linked Polyethylene ) which has excellent electrical characteristics and prevents shrink-back during soldering. Served (spiral) shield provides easier cable termination and better sound quality than braided shield.

Media

Datasheet (172.72 KB)
